Description

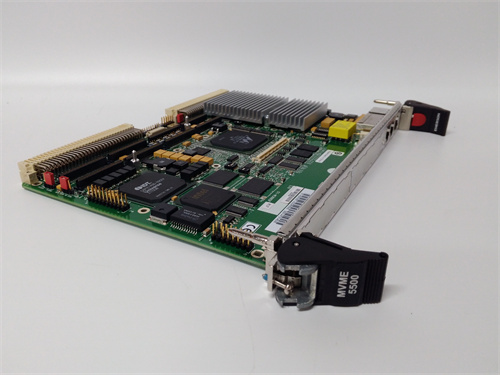

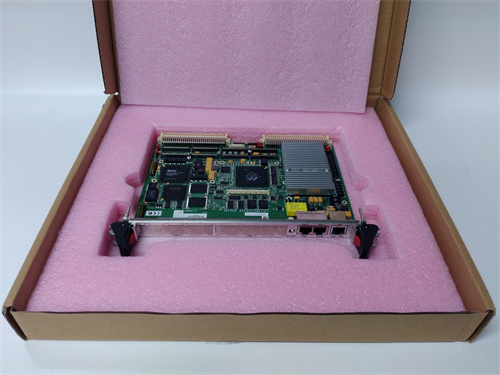

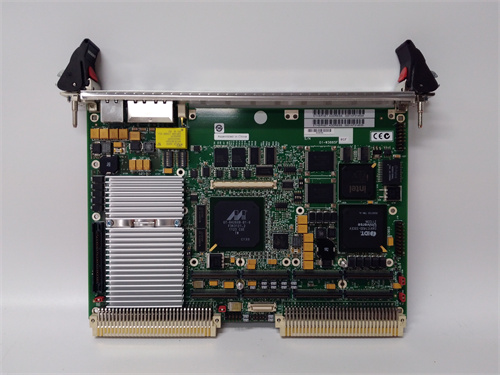

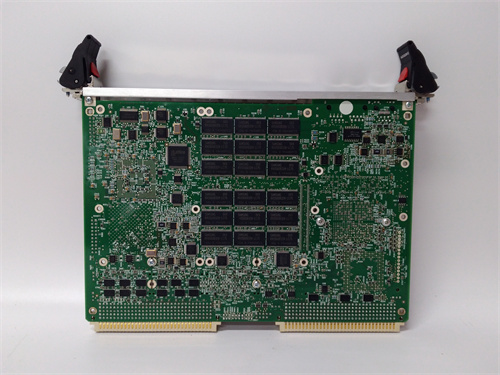

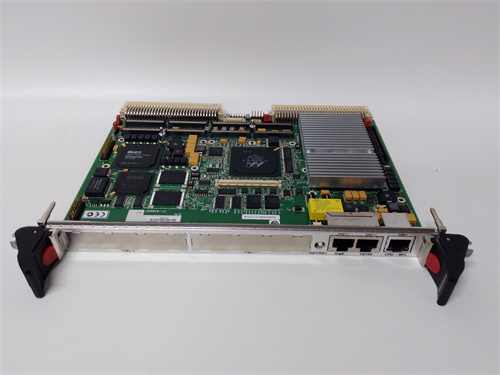

The MOTOROLA MVME55006E-0163R module is part of Motorola’s (now a part of NXP) MVME5500 series of VME (Versa Module Europa) bus processors. These processors are typically used in embedded systems and industrial applications.
Product Name:
- MOTOROLA MVME55006E-0163R
Product Description:
The MVME55006E-0163R is a VMEbus processor module designed for embedded control and high-performance computing applications. It is typically used in industrial automation, telecommunications, defense systems, medical equipment, and other mission-critical applications where robust processing power and I/O integration are required.
The MVME5500 series, including the MVME55006E-0163R, integrates powerful processors with high I/O throughput capabilities. It provides users with flexibility and reliability for demanding real-time and embedded applications.
Key Features and Specifications:
- Processor:
- Uses an e500 PowerPC processor, which provides high processing performance while maintaining low power consumption.
- The PowerPC architecture supports multiple cores, providing parallel processing capabilities for complex tasks.
- Processor Speed:
- 1.33 GHz (or equivalent in the case of this specific module).
- Memory:
- 2 GB DDR2 SDRAM (expandable in some configurations).
- 128 MB NOR Flash for boot and application storage.
- I/O Capabilities:
- VMEbus Interface: Supports standard VME64x, providing high bandwidth (up to 320 MB/s) for data transfer between the processor and I/O devices.
- Ethernet Ports: Dual 10/100/1000 Base-T Ethernet interfaces.
- Serial Ports: Multiple RS-232/RS-485 serial ports for communication with external devices.
- USB Ports: For additional peripheral connectivity.
- PMC/XMC Expansion Slots: For adding additional functionality or I/O options via PMC (Peripheral Module Computer) or XMC (PCI Mezzanine Card) modules.
- Graphics:
- Integrated video output for supporting user interfaces, providing VGA, DVI, or other display interfaces depending on the configuration.
- Storage:
- CompactFlash or optional hard drive support for storage.
- Real-Time Clock (RTC): For time-sensitive applications that require accurate and reliable timekeeping.
- Operating System: Supports multiple embedded operating systems, including VxWorks, Linux, and Windows CE.
- Power Supply:
- Typically requires a +5V power input and draws around 20-30W of power.
- Environmental Resistance:
- Designed for industrial environments with a wide operating temperature range (usually between 0°C to 60°C or -40°C to 85°C depending on the specific configuration and cooling).
- Shock and vibration resistant, making it suitable for rugged industrial and military applications.
- Form Factor:
- Standard VME64x form factor, allowing easy integration into existing VME-based systems.
Product Use:
The MVME55006E-0163R module is commonly used in the following applications:
- Industrial Control Systems: For controlling and automating machines, processes, and manufacturing systems in industries such as automotive, energy, and heavy manufacturing.
- Telecommunications Equipment: For routing, switching, and managing communication traffic in telecom infrastructure.
- Defense and Aerospace: Used in rugged, mission-critical systems that require high reliability in harsh environments, such as radar, avionics, and military communications.
- Medical Devices: In diagnostic and monitoring equipment where real-time processing and accurate data handling are required.
- Transportation Systems: Used in control systems for railway, aviation, and vehicle systems.
