Description

Product Name:

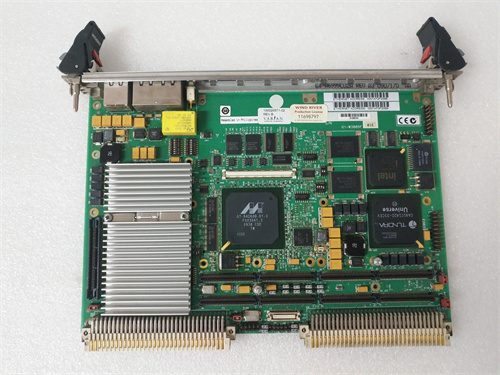

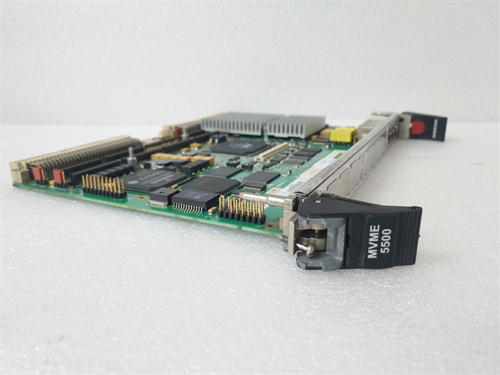

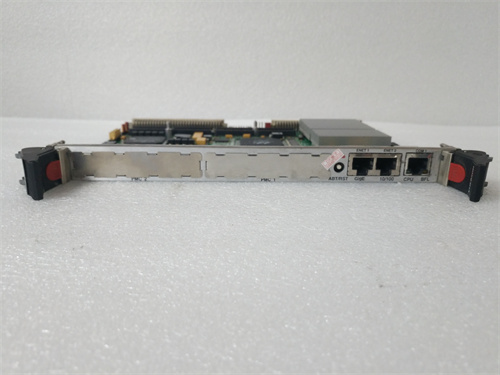

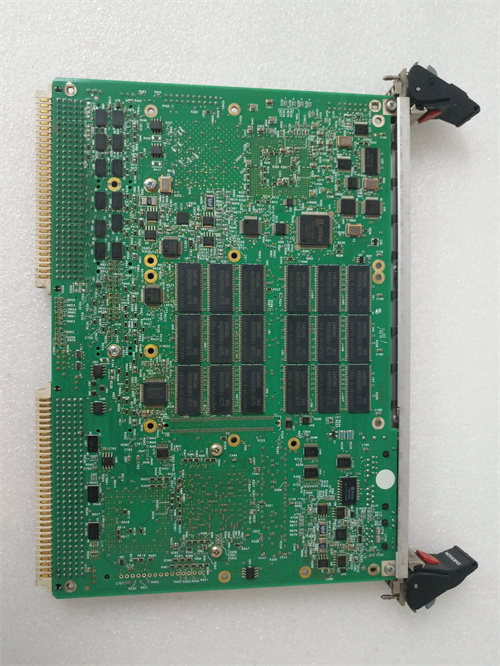

MOTOROLA MVME5500 and MVME5100 Modules

Product Description:

The MOTOROLA MVME5500 and MVME5100 are high-performance embedded computing modules designed for industrial and military applications. These modules are part of the VMEbus family and are utilized in various systems that require robust processing capabilities and reliable performance in demanding environments.

Product Parameters:

1. Architecture: PowerPC or Similar Architecture
2. Bus Interface: VMEbus
3. Form Factor: 6U VME (for both MVME5500 and MVME5100)
4. Operating System Support: Various real-time and general-purpose operating systems
5. Memory Options:
   • MVME5500: Up to 512 MB of RAM
   • MVME5100: Up to 256 MB of RAM
6. Storage Options: Flash memory and optional hard disk drive
7. I/O Ports:
   • Serial Ports
   • Ethernet Ports
   • A/D and D/A converters
8. Power Consumption: Typically around 5-10 watts, depending on load
9. Temperature Range: -40°C to +75°C (depending on model and configuration)

Specifications:

• Processor Speed:
  • MVME5500: Up to 400 MHz
  • MVME5100: Up to 300 MHz
• Performance: Designed for real-time applications with capable processing power for data acquisition, control, and monitoring.
• Graphics Support: Optional support for graphics interfaces depending on configuration.
• Expansion Slots:
  • MVME5500: Supports up to 4 additional VMEbus slots
  • MVME5100: Typically has a couple of expansion connector options
• Environmental Certifications: Compliance with various military and industrial environmental standards, including MIL-STD-810.

Product Use:

The MVME5500 and MVME5100 modules are used in a variety of applications, including but not limited to:

• Industrial Automation: Servicing control systems, robotics, and factory automation.
• Telecommunications: Providing backbone support for switching and routing systems.
• Military and Aerospace: Used in ruggedized applications for defense systems, avionics, and space applications.
• Medical Equipment: Integration into diagnostic machines and healthcare equipment that require high reliability.
• Research and Development: Serving as a reliable platform for testing new embedded systems and applications.
