Description
The MOTOROLA MVME5500-0161 is a high-performance embedded computing module, designed primarily for industrial, military, and commercial applications requiring robust, reliable, and scalable computing solutions. This module is part of the MVME5500 series from Motorola, which typically includes VMEbus-based systems known for their ruggedness and versatility.
Product Name

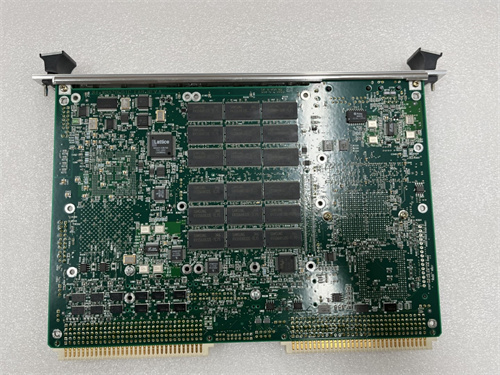

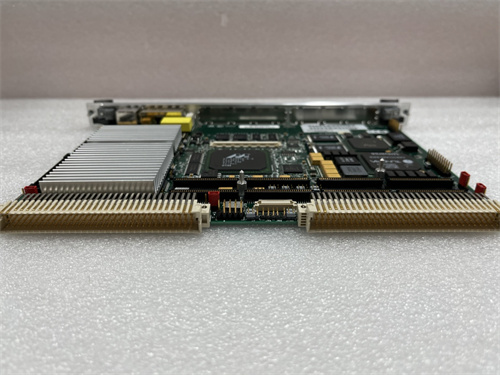

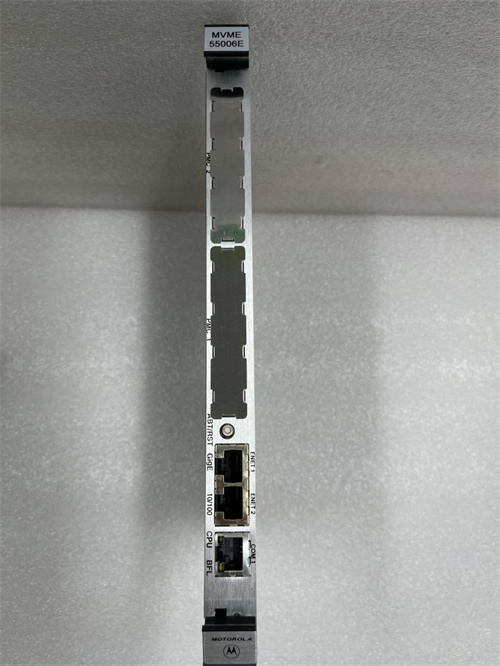

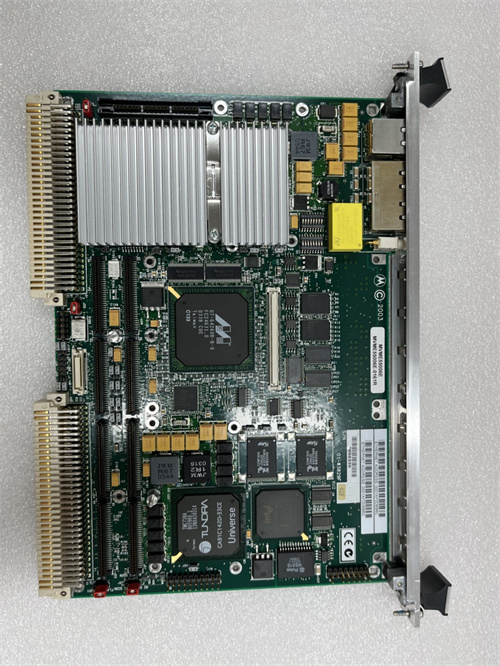

MOTOROLA MVME5500-0161 Embedded Computing Module
Product Description
The MVME5500-0161 is a VMEbus single-board computer that features high-performance processing power, designed to meet the demanding requirements of industrial control systems, embedded applications, and real-time processing environments. It is commonly used in systems requiring extended operation in harsh conditions, with an emphasis on reliability, processing speed, and flexibility.
This model is based on a PowerPC processor and provides a range of I/O interfaces, memory configurations, and expansion options to suit various application needs. The MVME5500 series modules are well-known for offering scalable performance in a compact form factor, making them ideal for applications in defense, aerospace, telecommunications, and automation.
Product Parameters & Specifications
- Processor:
- PowerPC 7447A (single-core or multi-core depending on model)
- Clock Speed: 1.0 GHz (for MVME5500 variants)
- Architecture: 32-bit/64-bit RISC
- Memory:
- RAM: 512 MB to 2 GB of DDR SDRAM (depending on model)
- Flash Memory: 64 MB or higher (non-volatile storage)
- Bus Interface:
- VME64 (VMEbus 64-bit interface for high-speed communication)
- Supports VME64x with extended capabilities
- I/O Ports:
- Multiple Ethernet Ports (typically Gigabit Ethernet)
- Serial Ports (RS-232, RS-422)
- USB Ports (for peripherals)
- Additional I/O options like Digital I/O and Video/Audio interfaces (depending on model configuration)
- Expansion:
- PCI expansion slots (depending on the system configuration)
- PMC or XMC slots for added I/O functionality
- Power Supply:
- Standard VME power (typically 5V and 12V for the board)
- Operating Systems:
- Typically compatible with real-time operating systems (RTOS) such as VxWorks, Linux, or custom embedded OS.
- Dimensions:
- Form factor: 6U VME module (typically about 233.35mm x 160mm)
- Environmental Specifications:
- Operating Temperature: 0°C to 60°C (standard)
- Extended temperature versions may support -40°C to +85°C
- Shock and vibration resistance (typically per MIL-STD-810)
- Additional Features:
- Watchdog Timer
- Advanced diagnostics
- Optional front-panel display and diagnostic LEDs
- Onboard FPGA for custom logic operations (in some configurations)
Product Use
The MVME5500-0161 module is designed for a broad range of industrial and embedded system applications, including:
- Telecommunications: Used in base stations, network switches, and other telecommunication equipment for data processing and communication.
- Defense and Aerospace: Utilized in military avionics, radar systems, communication systems, and other defense electronics requiring high-performance computing in rugged environments.
- Industrial Automation: Integrated into automation systems, factory control, robotics, and instrumentation for high-precision operations and monitoring.
- Test and Measurement: Employed in test equipment, signal processing, and control systems for testing electronic components and systems.
- Scientific Research: Used in real-time data collection and analysis systems, such as in laboratories and research facilities.
- Transportation: Applied in critical systems like trains, ships, and aircraft for control and communication.
The MVME5500-0161 provides flexibility and scalability, allowing users to tailor the system to their exact needs while ensuring high reliability and performance. Its rugged design ensures continued operation in harsh environments, making it a suitable choice for mission-critical applications that demand uptime and durability.
