Description

The Motorola MVME5100 is a single-board computer (SBC) designed for embedded systems and industrial applications. It’s part of the MVME series, typically used in rugged environments, and integrates the PowerPC architecture.

Product Name:

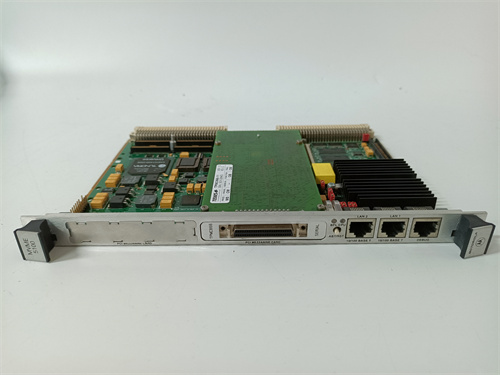

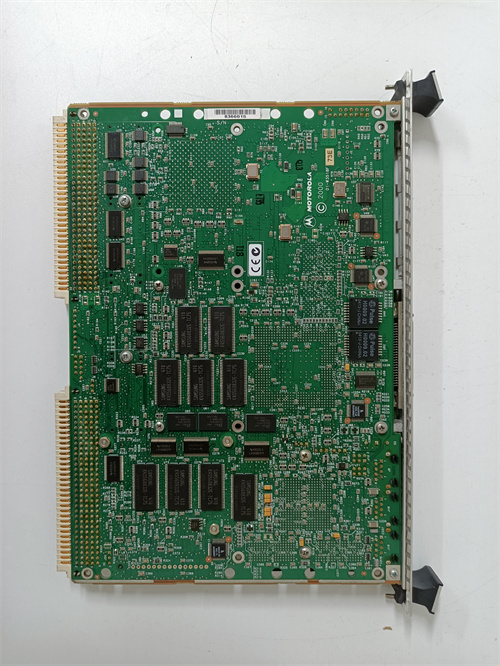

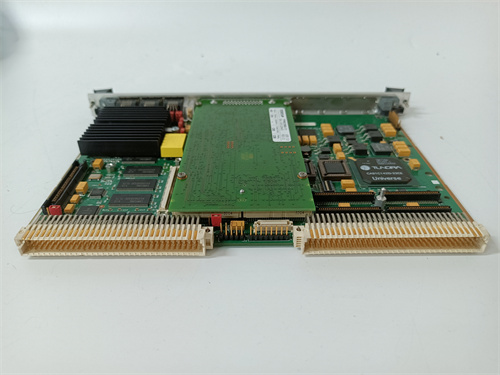

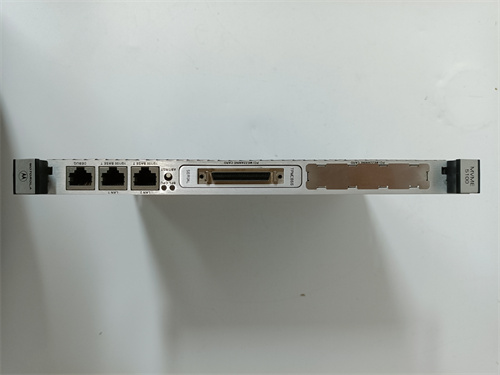

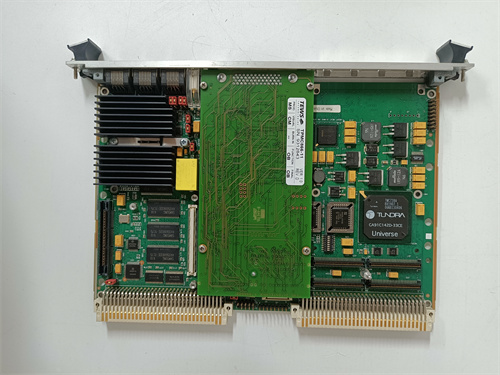

Motorola MVME5100 PowerPC Single-Board Computer

Product Description:

The MVME5100 is a high-performance, rugged embedded single-board computer that utilizes the PowerPC architecture. It is built for industrial and military applications, offering superior processing power, expanded I/O capabilities, and support for real-time operating systems. The board is equipped with a variety of connectivity options for versatile use in various embedded system applications, from industrial control systems to telecommunications and defense systems.

The MVME5100 can operate in harsh conditions, providing reliability and robustness for mission-critical applications. Its modular design allows for flexible configurations, and it supports standard interfaces such as Ethernet, serial communication, and more.

Product Parameters & Specifications:

• Processor:
  • PowerPC 750 (G3) or PowerPC 7447A
  • Clock speed up to 1 GHz
  • 32-bit/64-bit architecture
• Memory:
  • Up to 1GB DRAM (depending on the configuration)
  • 128MB Flash memory (on-board)
• I/O Interfaces:
  • 2 x 10/100/1000 Mbps Ethernet ports (Gigabit Ethernet)
  • 4 x RS-232 serial ports
  • 2 x USB 2.0 ports
  • 1 x IDE interface
  • 1 x PCI Slot (for additional expansion cards)
• Graphics:
  • Integrated graphics controller (supports VGA output)
• Storage:
  • 1 x CompactFlash card slot
  • IDE interface for additional storage devices (e.g., hard drives, solid-state drives)
• Expansion & Peripheral Support:
  • PCI expansion slot for I/O cards and custom peripherals
  • PMC (Peripheral Module Cards) slots for further expansion
• Power Supply:
  • Power input: 5V DC
  • Power consumption: ~15W
• Operating System Support:
  • Compatible with multiple real-time operating systems (RTOS), including VxWorks, Linux, and others
  • Built for real-time processing applications
• Environment:
  • Operating temperature range: 0°C to 60°C (standard version)
  • Extended temperature versions available for harsher environments
• Size & Form Factor:
  • Form Factor: 6U VMEbus (standard rack-mountable size)

Product Use:

The Motorola MVME5100 is primarily used in embedded applications across various industries:

• Industrial Automation: The MVME5100 is used in controlling machinery, process control, and automation systems. Its real-time processing capabilities and I/O versatility make it ideal for controlling complex systems.
• Telecommunications: The module is used in telecom equipment, including switches and routers, where high reliability and communication capabilities are crucial.
• Military & Defense: Due to its rugged design and durability, the MVME5100 is utilized in military and aerospace systems, where the environment is often extreme, and reliability is critical.
• Test & Measurement Systems: Its real-time processing power makes it suitable for controlling and processing data from various test and measurement devices.
• Data Acquisition: Often used in systems where continuous data collection, processing, and logging are essential, such as in scientific research or environmental monitoring.

Key Features:

• Rugged, reliable design for industrial and military applications.
• Powerful PowerPC architecture with up to 1 GHz processing speed.
• Multiple I/O interfaces and expansion capabilities for versatile system configurations.
• Support for real-time operating systems like VxWorks and Linux, ensuring timely, predictable system responses.
• High-speed Ethernet and serial connectivity for networking and communication.
• Modular and flexible system design to meet diverse application needs.
