Description
The MOTOROLA MVME2434 is a VMEbus single-board computer (SBC) designed for high-performance embedded applications. It was part of Motorola’s (now NXP) MVME series of VME-based systems.
Product Name:

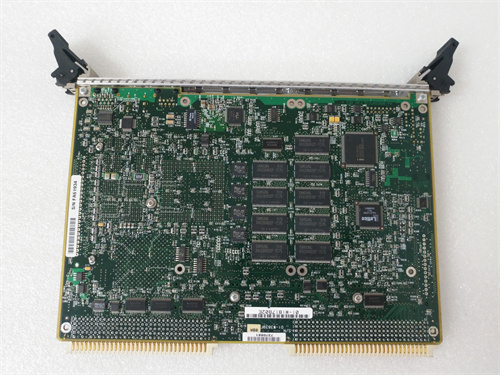

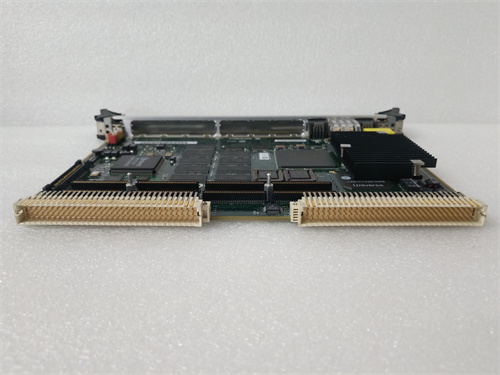

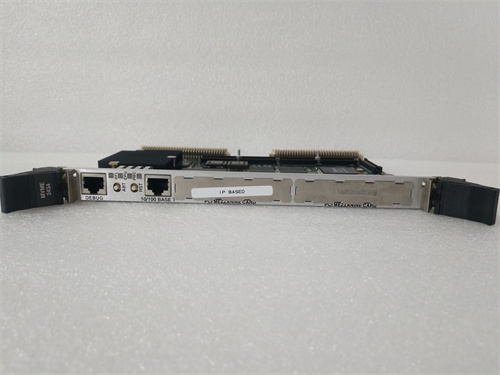

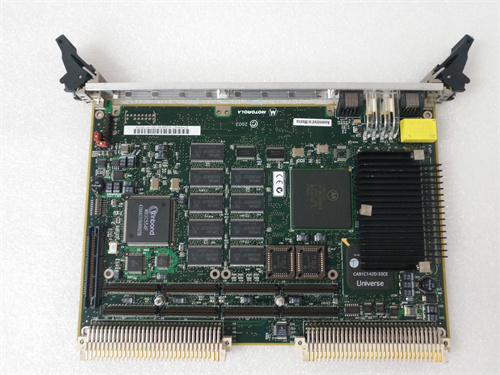

MOTOROLA MVME2434 VME Single-Board Computer
Product Description:
The MVME2434 is a powerful single-board computer that integrates a PowerPC processor and a range of I/O interfaces, designed to work within the VMEbus architecture for embedded systems. It features high processing power, flexibility, and support for a wide variety of operating systems. The MVME2434 was targeted at embedded industrial, scientific, and military applications requiring robust, scalable processing.
Key features include:
- PowerPC processor for high-performance computing tasks
- A VMEbus interface for communication with other boards and systems
- Multiple I/O options to support a wide variety of peripheral devices
- Built-in support for real-time applications and embedded operating systems like VxWorks and Linux
Product Parameters & Specifications:
- Processor:
- CPU: Motorola PowerPC 603e/604e (depending on the version)
- Clock Speed: 120 MHz (for the MVME2434)
- Floating Point Unit: Integrated
- Memory: 64MB or 128MB DRAM (depending on model)
- Cache: Onboard cache for improved performance
- VMEbus Interface:
- Bus Width: 32-bit or 64-bit VME
- VMEbus Master: Yes, supports VMEbus address space and system control
- VMEbus Transfer Rates: Up to 40 MB/s (depending on the system configuration)
- I/O and Connectivity:
- Serial Ports: Up to two RS-232/RS-422 ports
- Ethernet: 10/100Base-T Ethernet interface
- IDE: Integrated IDE interface for hard drive or flash storage
- Parallel I/O: For additional peripheral connections
- PMC Slot: For expansion cards (optional, depending on model)
- Memory:
- Standard: 64MB or 128MB DRAM
- Optional: Flash memory or additional RAM via the VME expansion slot
- Real-Time Support:
- Built-in support for real-time operating systems (RTOS) like VxWorks, QNX, and Linux
- Operating Systems:
- Supports Linux, VxWorks, Windows CE, and others for embedded applications
- Power Supply:
- Typically operates on 5V DC from the VMEbus (depending on the configuration)
- Environmental Specifications:
- Operating Temperature: Typically ranges from 0°C to 70°C
- Humidity: 10% to 90% (non-condensing)
Product Use:
The MVME2434 is used in applications that require high-performance, real-time processing in rugged or industrial environments. Common uses include:
- Industrial Automation: For controlling machinery, robotics, and other automated systems.
- Embedded Systems: Particularly in aerospace, military, telecommunications, and transportation sectors where ruggedness and reliability are critical.
- Scientific Instruments: As part of data acquisition and control systems in research environments.
- Defense and Military: Used in systems requiring high durability and extended operation in harsh conditions.
Key Applications:
- Control Systems: Industrial control, robotics, and automation systems.
- Data Acquisition: Embedded measurement systems used in scientific, medical, and military applications.
- Embedded Computing: High-performance computing for embedded applications requiring a VMEbus interface and PowerPC processing.
- Telecommunications: Networking and data communications systems.
