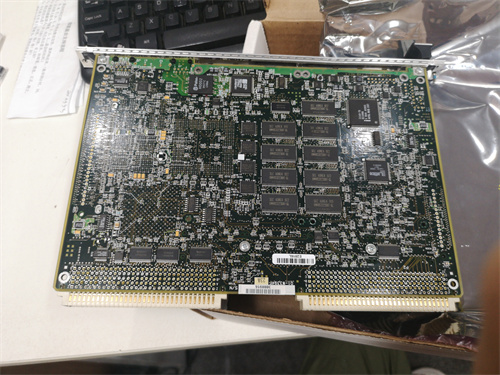

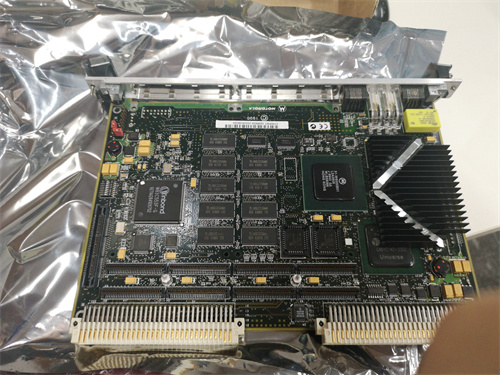

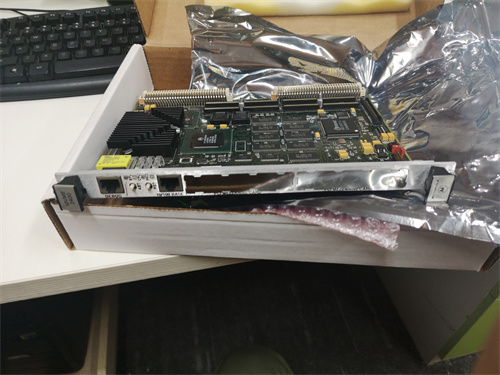

MOTOROLA+MVME2400

Description

The Motorola MVME2400 is a VMEbus-based embedded computer module, designed for high-performance, real-time computing applications.

Product Name:

• Motorola MVME2400 (also known as MVME2400)

Product Description:

The Motorola MVME2400 is a high-performance VMEbus embedded processor module, typically used in rugged, mission-critical applications. It features the PowerPC architecture, which offers a combination of high computational power and low power consumption, making it suitable for embedded systems, industrial automation, military, aerospace, telecommunications, and other specialized computing environments. The module was designed to provide a balance between processing performance and flexibility in a compact form factor.

The MVME2400 is part of the Motorola VMEbus family, which allows it to be integrated into existing VME systems. It typically supports high-speed processing, advanced I/O capabilities, and a variety of communication interfaces to integrate seamlessly into larger embedded systems.

Key Features:

• PowerPC-based processing for high computational performance.
• VMEbus form factor, which provides robust expansion options.
• Integration of high-speed I/O interfaces.
• Support for real-time applications.
• Compact and rugged design for harsh operating environments.

Product Parameters:

• Processor Type: PowerPC (specific model depends on the version of the MVME2400).
• Processor Clock Speed: 100 MHz (may vary depending on specific configurations).
• Memory: Typically offers both DRAM and flash memory options, supporting up to several MB of DRAM and flash.
• I/O Ports: Multiple serial communication ports, Ethernet ports, and other I/O interfaces.
• VMEbus Compatibility: Conforms to VME64 standards.
• Real-Time Clock: Yes (supports time-stamping and real-time operations).
• System Bus: VMEbus.

Specifications:

• Processor: Motorola PowerPC processor.
• Memory:
  • RAM: Up to 128 MB DRAM (expandable depending on the model).
  • Flash: 8 MB Flash (expandable in some versions).
• Expansion Slots: Multiple I/O expansion slots available for additional boards or functionality.
• I/O Interfaces:
  • Ethernet (usually 10/100 Mbps)
  • Serial (RS-232 or RS-422)
  • Optional custom I/O interfaces.
• Bus Type: VME64 standard.
• Power Requirements: 5V DC input.
• Cooling: Typically fan-cooled or conduction-cooled (depending on configuration).
• Operating Temperature: -40°C to +85°C (in rugged versions).
• Dimensions: Varies based on configuration but typically fits within a standard 6U VME form factor.

Product Use:

The MVME2400 is primarily used in embedded systems and real-time applications where high computational power, reliability, and expandability are critical. Typical use cases include:

• Industrial Automation: Control and monitoring systems in manufacturing plants.
• Aerospace and Defense: Avionics, radar systems, and military-grade embedded systems.
• Telecommunications: Networking and communications equipment.
• Medical Devices: Control and monitoring systems for medical equipment.
• Transportation Systems: Embedded control systems in vehicles or transit infrastructure.

Applications:

• Military and Aerospace (e.g., radar, communications systems).
• Industrial control and automation.
• Test and measurement systems.
• Robotics and advanced machinery.
• High-performance embedded computing tasks.
