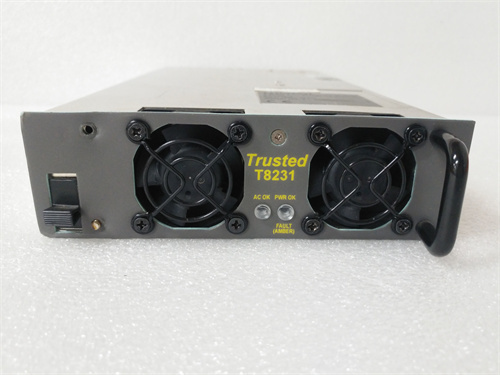

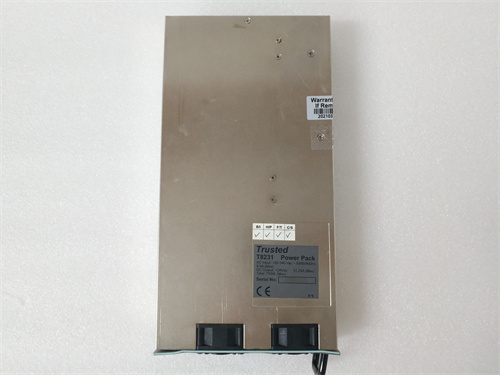

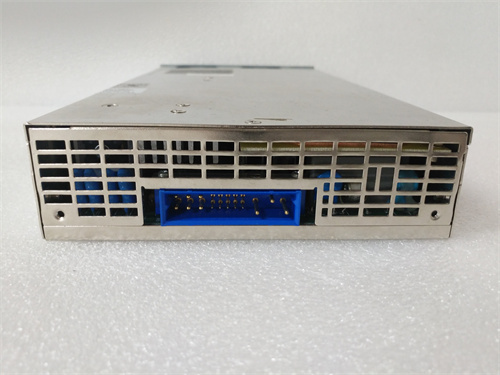

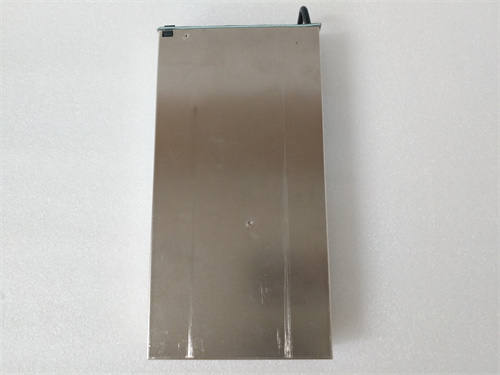

ICS TRIPLEX+T8231

Description

The ICS TRIPLEX T8231 is a component from the TRIPLEX series of safety and control modules designed by Emerson (formerly ICS Triplex), known for its use in critical and high-integrity safety applications, particularly in industries such as oil & gas, chemical, and power generation.

Product Name:

ICS TRIPLEX T8231

Product Description:

The ICS TRIPLEX T8231 is a digital input/output (I/O) module designed for use in the TRIPLEX safety system. This module is part of the T8000 series, which is a set of modules that provide the flexibility to manage discrete I/O signals, interface with other devices, and support system diagnostics in high-integrity safety environments.

The T8231 module can be used for monitoring and controlling processes that require high reliability, integrity, and fault tolerance. It is typically deployed in critical safety systems where failure-free performance is paramount, meeting rigorous standards for process safety and control.

Product Parameters:

• I/O Type: Discrete Digital I/O
• Channels: 32 digital input channels, 32 digital output channels (configurable depending on system requirements)
• Input Voltage Range: Standard 24V DC
• Output Type: Typically relay, transistor, or open collector (depending on configuration)
• Isolation: Each I/O channel is electrically isolated for protection and to prevent cross-talk between channels.
• Temperature Range: -20°C to +60°C (specific range may vary based on exact configuration)
• Power Supply: Powered via the TRIPLEX system backplane
• Communication Interface: High-speed communication with the TRIPLEX safety controller via proprietary protocols

Specifications:

• Safety Integrity Level (SIL): SIL 3 (Safety Integrity Level 3) certified, meeting IEC 61508 and IEC 61511 standards for functional safety.
• Redundancy: Full redundancy for fault tolerance, ensuring high availability and system reliability.
• Diagnostic Capabilities: Built-in diagnostics for real-time monitoring of module health, communication status, and I/O performance.
• Mounting: Typically mounted on a TRIPLEX T8000 backplane or similar safety control systems.
• Dimensions: Standard module size for rack-based installation.
• Certifications: Complies with international safety standards including CE, UL, and others.

Product Use:

The ICS TRIPLEX T8231 module is used for:

• Safety Instrumented Systems (SIS): To provide reliable, high-integrity digital I/O for process monitoring and control in safety-critical applications.
• Process Control: For interfacing with sensors, actuators, and other field devices in environments where equipment must operate without failure to prevent accidents.
• Fault Tolerant Applications: Used in environments where redundancy and fault tolerance are required to ensure the safety of operations, such as oil & gas facilities, power plants, and chemical processing plants.
• Emergency Shutdown Systems (ESD): The module plays a crucial role in emergency shutdown systems, helping ensure the integrity of the shutdown process in hazardous scenarios.
