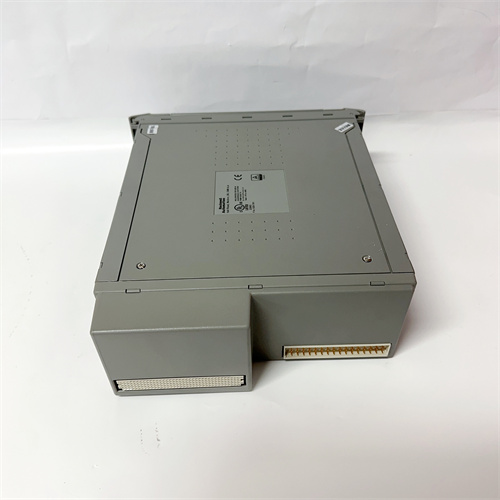

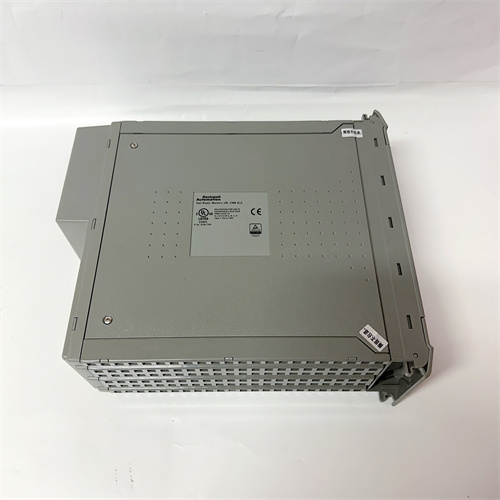

ICS TRIPLEX+T8110B T8110C

Description

ICS TRIPLEX+T8110B T8110C

Product Name

ICS TRIPLEX+T8110B T8110C  Redundant Digital Output Module

Product Description

The ICS TRIPLEX T8110B is a high-integrity digital output module designed for critical safety applications within industrial automation systems. As a core component of the ICS TRIPLEX safety system, the T8110B module ensures reliable and fault-tolerant operation in demanding environments. This module is essential for driving final control elements such as solenoid valves, motor starters, and other discrete devices. With its robust design and comprehensive diagnostics, the ICS TRIPLEX T8110B provides enhanced safety and availability for process-critical applications. It’s engineered to meet stringent safety standards, making it a trusted solution for industries where safety is paramount. Furthermore, the T8110B module integrates seamlessly with other ICS TRIPLEX system components, providing a cohesive and dependable safety solution.

Product Parameters

• Number of Channels: 32
• Output Type: Solid State, High-Side Driver
• Voltage Range: 24 VDC (Nominal)
• Current Rating: 0.5A per channel
• Diagnostics: Open-circuit, short-circuit, and over-temperature detection
• Safety Integrity Level (SIL): SIL 3 certified
• Operating Temperature: -40°C to +70°C
• Communication Interface: Triplex backplane communication
• Power Consumption: Typically 5W
• Isolation: Galvanic isolation between channels and system logic

Advantages and Features

• High Availability: Redundant design ensures continuous operation even in the event of a component failure.
• Safety Integrity: SIL 3 certification provides confidence in safety-critical applications.
• Comprehensive Diagnostics: Real-time diagnostics for quick fault detection and resolution.
• Robust Design: Designed to withstand harsh industrial environments.
• Easy Integration: Seamlessly integrates with other ICS TRIPLEX system components.
• High Density: 32 channels per module, providing a high density of outputs.
• Hot Swappable: Modules can be replaced without shutting down the system.

Application Areas and Application Cases

• Oil and Gas: Emergency shutdown (ESD) systems, fire and gas (F&G) systems, and process control.
  • Example: In an offshore oil platform, the ICS TRIPLEX T8110B module is used to control shutdown valves in the event of a detected gas leak, ensuring the safety of personnel and equipment.
• Chemical Processing: Reactor control, safety interlocks, and critical process monitoring.
  • Example: A chemical plant uses the T8110B to manage safety interlocks that prevent runaway reactions, ensuring the integrity of the process and plant safety.
• Power Generation: Turbine control, boiler protection, and generator monitoring.
  • Example: In a power plant, the ICS TRIPLEX T8110B is employed to control critical boiler functions and prevent over-pressure situations, protecting the boiler and surrounding equipment.
• Transportation: Railway signaling and control, tunnel ventilation systems.
  • Example: Used in railway signaling systems to ensure safe train operation by controlling signals and points based on real-time system status.

Competitive Product Comparison

• Rockwell Automation: While Rockwell offers robust I/O modules, the ICS TRIPLEX system provides a higher level of redundancy and safety certification, making it more suitable for SIL 3 applications.
• Siemens: Siemens offers a range of safety-integrated I/O modules, but ICS TRIPLEX’s triple modular redundancy (TMR) architecture provides superior fault tolerance.
• HIMA: HIMA is a direct competitor in the safety system market. However, the ICS TRIPLEX T8110B offers a unique combination of high density and comprehensive diagnostics, providing a competitive edge in certain applications.

Selection Advice

When selecting the ICS TRIPLEX T8110B, consider the following:

• Safety Requirements: Ensure that the SIL 3 rating meets the safety requirements of your application.
• I/O Density: Evaluate the number of digital outputs required to ensure the module meets your needs.
• Environmental Conditions: Verify that the operating temperature range is suitable for your application environment.
• System Integration: Ensure compatibility with your existing ICS TRIPLEX system or plan for integration with other components.
• Future Expansion: Consider future expansion needs and select a system that can accommodate additional I/O modules.

Precautions

• Installation: Follow the manufacturer’s installation guidelines to ensure proper module seating and connectivity.
• Power Supply: Use a reliable and properly sized power supply to avoid voltage fluctuations that could affect module performance.
• Wiring: Use appropriate wiring practices to prevent noise and interference, ensuring signal integrity.
• Maintenance: Perform regular diagnostics and maintenance to identify and address potential issues before they lead to failures.
• Environmental Protection: Protect the module from excessive moisture, dust, and vibration to ensure long-term reliability.

We are your trusted partner, and we offer the ICS TRIPLEX T8110B, as well as other automation spare parts sales and technical support. Get special preferential discount prices. Please contact us, we will serve you wholeheartedly!
