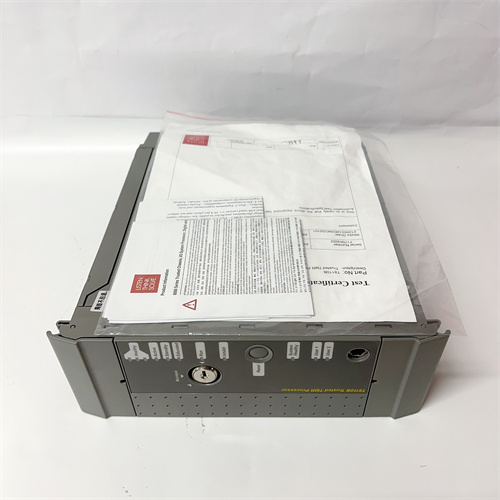

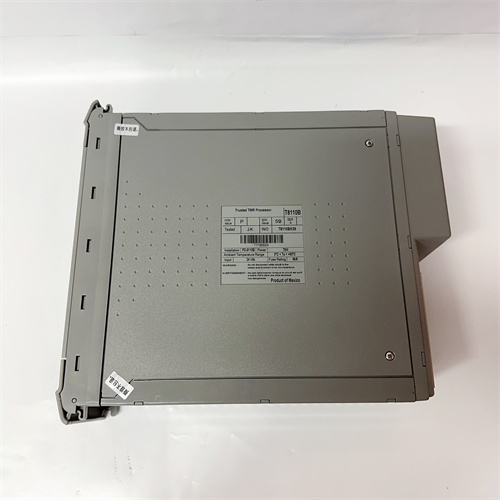

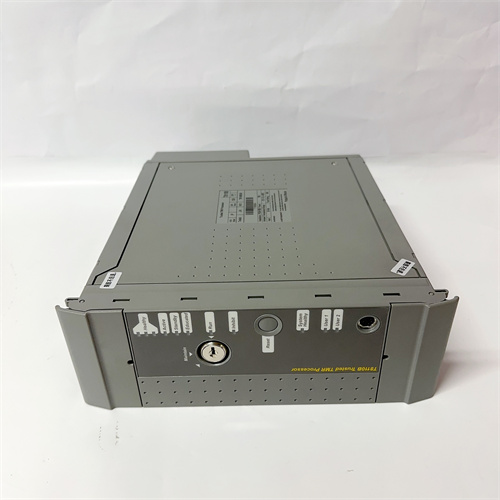

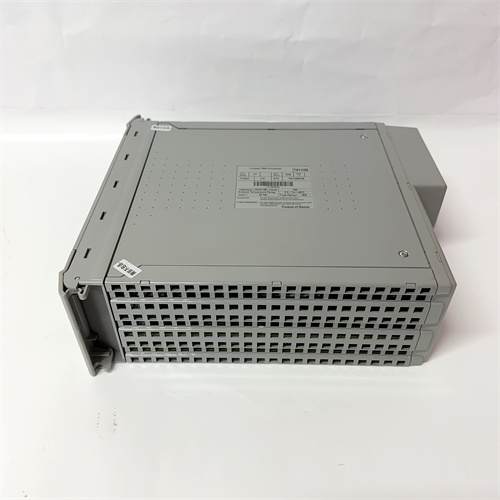

ICS TRIPLEX+T8110B

Description

The ICS Triplex T8110B is a critical component of the Triplex Safety Systems, often used in industrial automation for safety, control, and protection in various processes. The T8110B module is typically part of a fault-tolerant control system used in industries like oil & gas, petrochemical, power generation, and others where safety, reliability, and availability are crucial.

Product Name:

ICS Triplex T8110B – Safety System Module

Product Description:

The ICS Triplex T8110B is a part of the Triplex series from ICS (Industrial Control Systems), designed for use in high-availability, safety-critical environments. This module forms part of a fault-tolerant system that helps ensure safe, reliable operation in complex industrial control systems. The module is designed for use in conjunction with other Triplex control modules to provide real-time monitoring, system diagnostics, and performance verification.

The T8110B typically integrates into a redundant control architecture where three independent processors or communication paths (hence the Triplex name) are used to ensure that if one part fails, the other parts continue to function, minimizing the risk of failure and increasing overall system reliability.

Product Parameters / Specifications:

• Module Type: Safety and Control I/O Module.
• Form Factor: Typically a 19-inch rack-mounted module.
• Processor: Typically a high-performance, embedded processor for safety-critical applications.
• Power Supply: Designed to operate with specific voltage and current ratings to ensure reliable operation.
  • Typical Input Voltage: 24 VDC (may vary depending on the configuration and system requirements).
  • Power Consumption: Typically designed for low to moderate power consumption to reduce energy load.
• Communication Interface:
  • Supports multiple communication protocols (e.g., Modbus, Profibus, etc.) for integration with other systems.
  • Redundant network interface (to ensure continuous communication in case of network failure).
• Redundancy: Full redundancy for fault tolerance, ensuring continuous operation in critical environments.
• Diagnostic Features: Built-in self-diagnostic features for system health monitoring and early fault detection.
• Safety Certification: Designed to comply with relevant industrial safety standards (e.g., SIL-3, IEC 61508, etc.), ensuring it meets the rigorous safety requirements of critical systems.
• Temperature Range: Typically designed to operate in harsh environments with an extended temperature range.
  • Operating Temperature: -40°C to +70°C (depending on specific module version).
• Mounting: Designed for easy integration into industrial control systems, typically rack-mounted.

Product Use:

The ICS Triplex T8110B module is typically used in industrial environments that require safety and fault-tolerant control systems. Its primary applications include:

• Process Control: For industries such as oil & gas, petrochemical, power generation, and chemical processing, where continuous, reliable process control is vital.
• Safety Instrumented Systems (SIS): It is used in safety-critical applications where failure could lead to harm, financial loss, or environmental damage.
• Emergency Shutdown Systems (ESD): It is used in systems designed to quickly shut down processes in case of an emergency to prevent accidents.
• Redundant Control Systems: In scenarios where high availability is a requirement, such as power plants and offshore rigs, the T8110B helps ensure that the control system remains operational even in the event of failure of one control path.
• Critical Monitoring & Alarming: The T8110B can monitor process variables and trigger alarms or shutdowns when parameters exceed safe thresholds, ensuring safe operations.

Key Benefits:

• High Reliability: Built-in redundancy ensures that the system remains operational even during component failures.
• Safety Assurance: Meets strict safety standards for critical applications, providing peace of mind in hazardous environments.
• Scalable and Flexible: The modular nature of the system makes it easy to scale and configure according to the specific needs of the process.
• Diagnostic Capabilities: Self-checking and diagnostic functions help operators quickly identify and resolve issues before they affect the system.
