HP+E1740A

Description

The HP E1740A module is a dynamic signal analyzer designed for use in electronic measurement and testing applications.

Product Name:

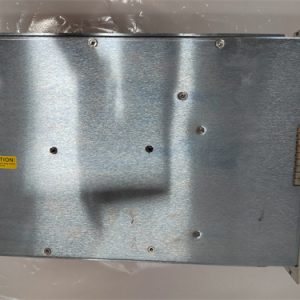

HP E1740A Dynamic Signal Analyzer Module

Product Description:

The HP E1740A module is part of the HP 3562A Dynamic Signal Analyzer series and provides high-performance signal processing capabilities for a variety of testing and measurement applications. It allows users to analyze and measure dynamic signals accurately and efficiently.

Product Parameters:

– Frequency Range: 0.1 Hz to 100 kHz
– Input Channels: 1 channel
– Sample Rate: Up to 100 kHz
– Dynamic Range: >90 dB
– Total Harmonic Distortion: <0.05%

Specifications:

– Input Impedance: 50 ohms
– Input Range: ±10 V
– ADC Resolution: 16 bits
– Power Requirements: +15 Vdc, -15 Vdc, and +5 Vdc

Product Use:

The HP E1740A module is commonly used in various industries for tasks such as vibration analysis, acoustic measurements, structural dynamics testing, and more. It is ideal for applications that require high accuracy and precision in signal analysis. The module can be integrated into testing systems or used as a standalone instrument for signal processing tasks.
