HONEYWELL CC-PDIL01

Description

Product name:

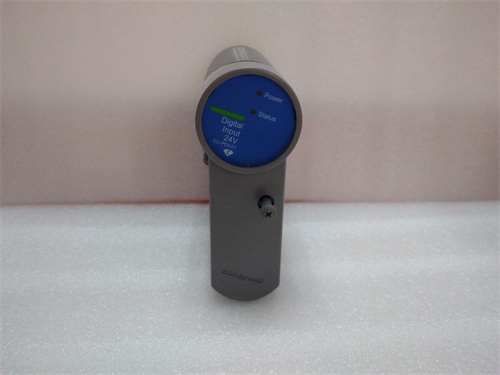

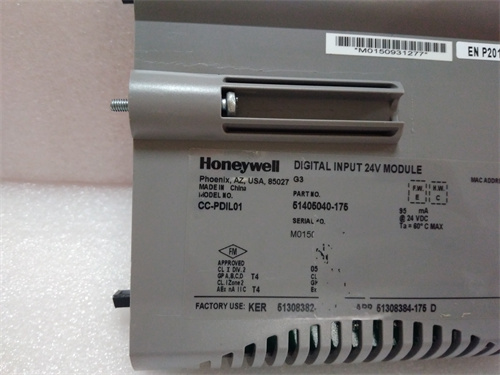

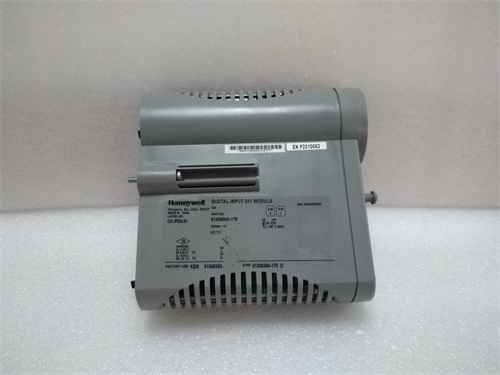

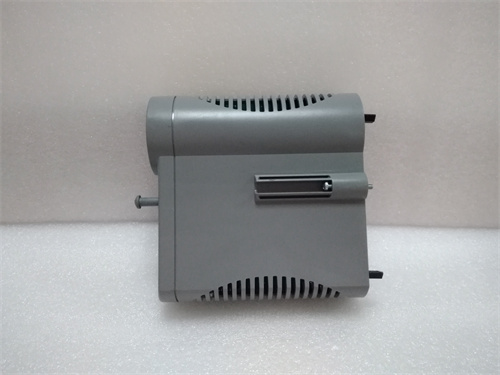

Honeywell CC-PDIL01 Digital Input Module

Product Description:

The Honeywell CC-PDIL01 is a digital input module designed for use in industrial control systems. It allows for the monitoring of discrete binary signals and provides status information to the control system.

Product Parameters:

– Number of Inputs: 8 digital input channels
– Input Voltage Range: 0 to 30 VDC
– Input Current: 5 mA at 5 VDC, 10 mA at 30 VDC
– Input Response Time: 5 ms (typical) on/off to off/on

Specifications:

– Operating Temperature: -40°C to 70°C
– Storage Temperature: -40°C to 85°C
– Humidity: 0% to 95% RH non-condensing
– Input Isolation: 1500 Vrms between input and backplane

Product Use:

The Honeywell CC-PDIL01 module is used in industrial automation and control systems to monitor the status of digital inputs such as switches, sensors, and other binary devices. It is typically used in applications where real-time monitoring and control of discrete signals are required, such as in manufacturing plants, power generation facilities, and other industrial settings.
