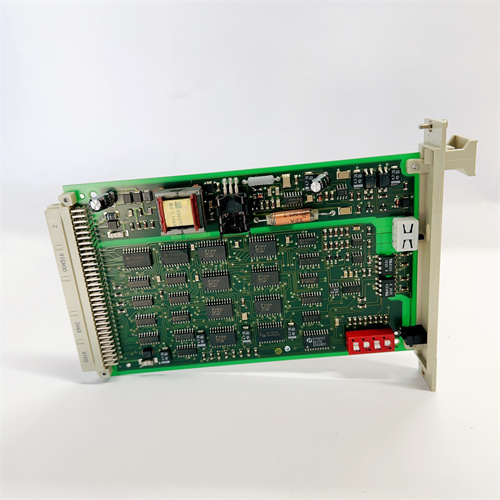

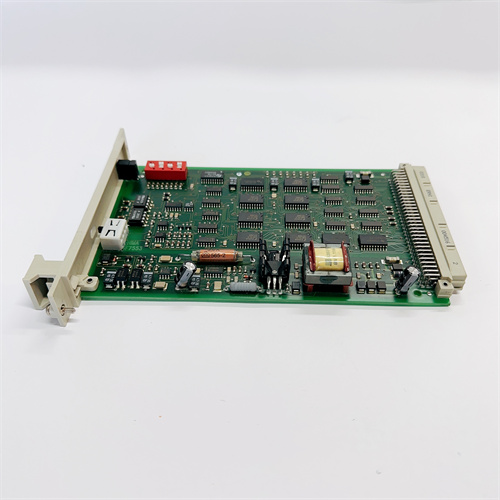

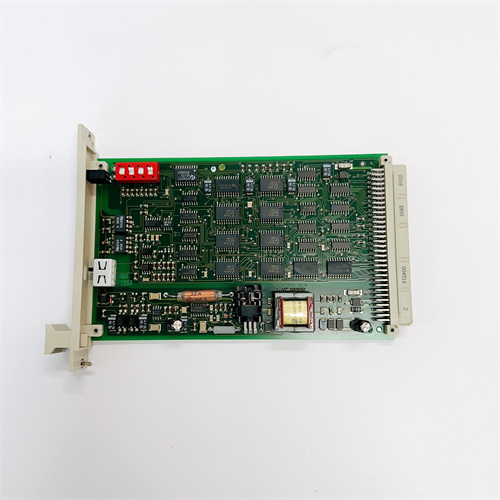

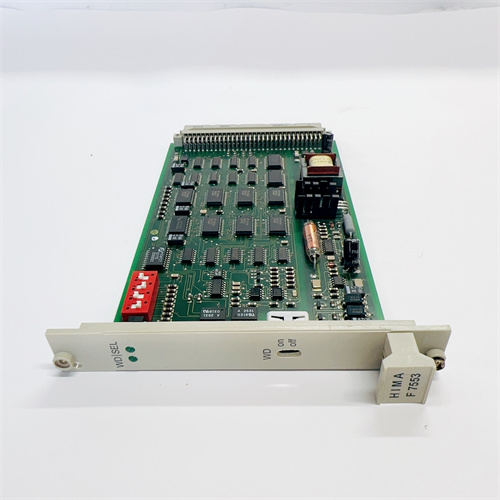

HIMA+F7553

Description

The HIMA+F7553 module is part of the HIMA safety system solutions, which provide high-level safety automation and control for industrial applications. The product is designed for use in critical safety systems that require a high degree of reliability, availability, and performance, ensuring that industrial processes can be controlled safely and efficiently.

Product Name:

HIMA+F7553 Module

Product Description:

The HIMA+F7553 is a safety controller module used in industrial automation systems, particularly in safety-critical applications. It is a part of the HIMA Safety Instrumented Systems (SIS) that ensures the safe operation of processes by managing and controlling risks and hazards. This module supports SIL3 (Safety Integrity Level 3) functionality, making it suitable for high-risk industrial processes, such as those found in chemical plants, oil & gas facilities, power generation, and more.

The F7553 is known for its robust, fault-tolerant architecture, designed to meet the highest standards of functional safety and reliability. It provides real-time processing for safety-critical operations, including emergency shutdowns, safety interlocks, and process monitoring.

Product Parameters and Specifications:

1. Safety Integrity Level (SIL):
   • SIL 3 (according to IEC 61508 and IEC 61511 standards)
2. Power Supply:
   • Input Voltage: Typically 24 VDC (may vary depending on the system configuration)
   • Current Consumption: Dependent on system load and configuration
3. Communication Protocols:
   • HIMA specific fieldbus and communication interfaces (e.g., PROFINET, Ethernet, Modbus)
   • Redundant communication links for enhanced safety
4. Inputs and Outputs:
   • Multiple digital I/O (e.g., safety inputs/outputs)
   • Analog I/O (for sensors such as pressure, temperature, flow, etc.)
   • Safety-related I/O for controlling emergency shutoff valves, process equipment, etc.
5. Redundancy:
   • The module supports redundant configurations to improve system availability and fault tolerance.
6. Operating Temperature:
   • Typically -40°C to +70°C (for industrial environments)
7. Certifications:
   • IEC 61508 (Functional Safety)
   • IEC 61511 (Safety Instrumented Systems)
   • UL and other region-specific certifications
8. Processing Power:
   • High-performance microprocessor with real-time control capabilities
9. Diagnostic Capabilities:
   • Comprehensive diagnostics and status monitoring for both hardware and software
10. Environmental Protection:
    • Designed for industrial environments with protection against dust, moisture, and extreme temperatures (IP20/IP67 based on configuration)

Product Use:

The HIMA+F7553 module is used in applications where safety is a critical concern. It can be used to:

1. Control Safety Systems:
   • Managing emergency shutdown systems (ESD), fire and gas detection systems, and other safety loops.
2. Automate Process Control:
   • Automates complex processes in industries such as oil & gas, petrochemical, pharmaceuticals, and power generation, ensuring the processes are not only efficient but also meet the required safety standards.
3. Monitor System Integrity:
   • Monitors the health of critical safety equipment and processes, ensuring that the system is continuously operating within safe parameters and responding to failure modes in real time.
4. Implement SIL-rated Safety Functions:
   • Used to implement SIL 3-rated safety functions, providing necessary safety levels for machinery and equipment in high-risk environments.
5. Communication with Other Modules:
   • The module can communicate with other controllers and safety devices in an industrial network, allowing for an integrated safety system across multiple locations or facilities.

Typical Industries and Applications:

• Oil & Gas: Emergency shutdown systems, fire and gas detection.
• Chemical and Petrochemical: Safety interlocks, hazardous area protection.
• Power Generation: Critical shutdown systems, plant monitoring.
• Pharmaceuticals: Safe operation of automated processes.
• Mining & Metals: Machinery safety, shutdown systems.
