Description

The HIMA F6706 module is part of HIMA’s safety systems designed for use in industrial applications, primarily focusing on process safety, control, and automation.

Product Name:

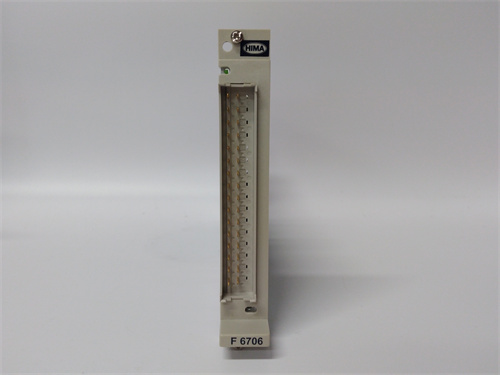

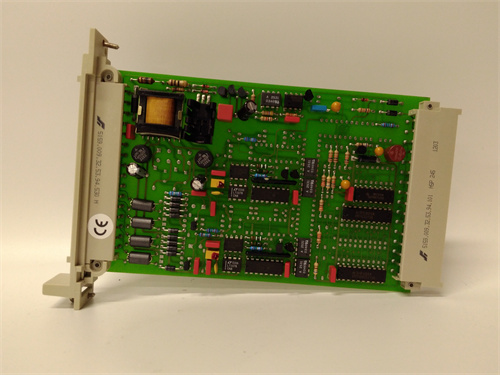

HIMA F6706 Safety System Module

Product Description:

The HIMA F6706 is a safety system module that is part of the HIMA safety automation systems, often used in critical process industries such as chemical, petrochemical, oil & gas, and power generation. It is designed to integrate with safety-related systems to ensure safe and reliable operations, preventing accidents and protecting both personnel and assets from hazardous conditions.

This module is typically used in conjunction with HIMA’s HIMax or HIQuad safety controllers, offering robust redundancy, diagnostic capabilities, and real-time monitoring to meet the high safety requirements of industrial environments.

Product Parameters and Specifications:

While specific parameters may vary slightly depending on the configuration or version of the module, typical specifications for the F6706 are:

• Model: F6706
• Type: Safety I/O module
• Input/Output (I/O) Channels: Digital or analog input/output, or a combination, depending on configuration.
• Power Supply: Typically requires a 24V DC power supply for operation.
• Redundancy: Built-in redundancy to ensure continuous operation even in the event of a fault.
• Communication Protocol: Compatible with HIMA’s proprietary communication protocols, such as Ethernet, PROFIBUS, or Modbus.
• Safety Integrity Level (SIL): Complies with SIL 3 (Safety Integrity Level 3), which meets the highest safety standards for critical applications.
• Environmental Ratings: Designed for industrial environments, with operating temperature ranges typically from -20°C to +60°C and resistance to shock, vibration, and humidity.
• Housing: Typically designed in a modular, compact form factor that fits within a standard 19 rack mount or panel.

Product Use:

The HIMA F6706 module is primarily used for:

1. Safety Control: The module ensures that safety functions, such as emergency shutdown, gas leak detection, and process control, are executed reliably.
2. Automation Integration: It is integrated into distributed control systems (DCS) and programmable logic controllers (PLC), offering a bridge between control systems and safety systems.
3. Industrial Safety: Commonly used in industries where high safety standards are required, such as:
   • Oil and Gas: For monitoring and controlling hazardous processes.
   • Chemical and Petrochemical: To control chemical reactions and processes that could become hazardous if not properly managed.
   • Power Generation: To protect critical power systems from operational failures or emergencies.
   • Pharmaceuticals and Food Processing: Where process safety is tightly regulated.
4. Alarm Handling and Monitoring: Ensuring that safety-related alarms are effectively managed and that any faults are detected early to avoid critical incidents.

Key Features:

• Redundancy and Fault Tolerance: Built-in features for fault detection, diagnostics, and redundancy to ensure continuous safety and operation.
• Compliance with Safety Standards: Complies with IEC 61508, IEC 61511, and other relevant safety standards.
• Versatile I/O Configuration: Capable of managing digital and analog signals, making it flexible for various industrial applications.
• Real-time Monitoring: Supports real-time monitoring and diagnostics, helping reduce the risk of undetected faults in safety-critical systems.
