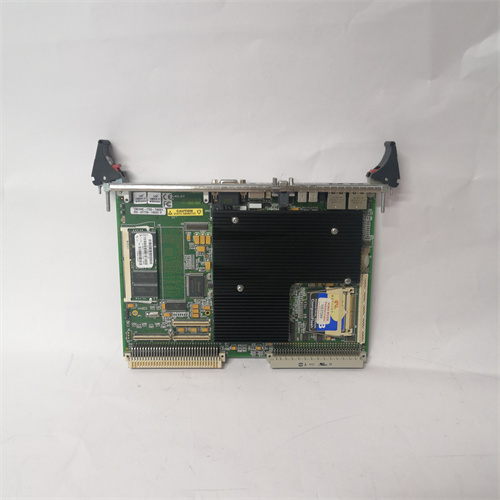

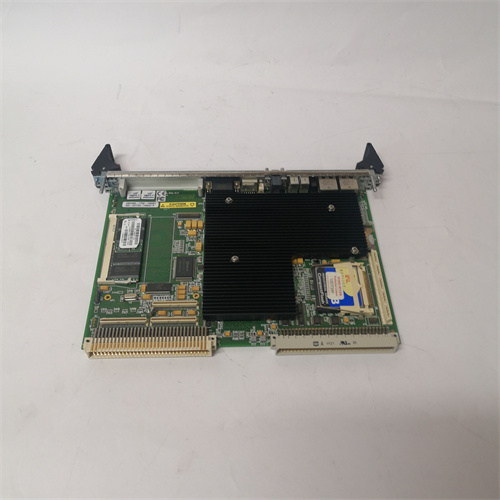

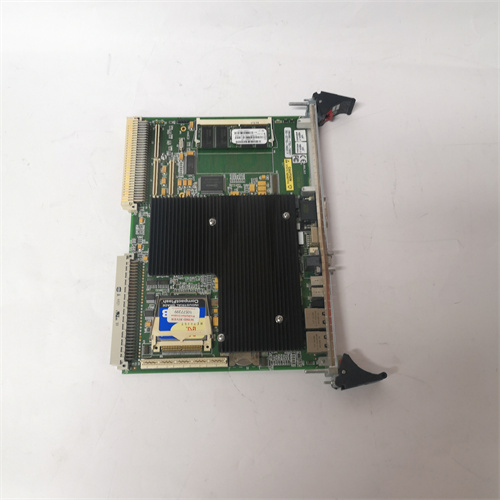

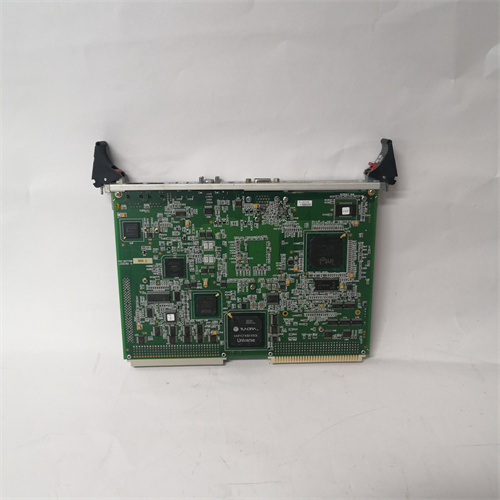

GE+VMIVME-7750 VMIVME-7750-746001 350-027750-746001 K/N

Description

The GE+VMIVME-7750 (also known as the VMIVME-7750-746001) is a high-performance embedded computer module designed for industrial and military applications. This module is part of the VME (Versa Module Europa) bus system, which is commonly used in rugged environments where reliability and performance are critical.

Product Name:

GE+VMIVME-7750
VMIVME-7750-746001

Product Description:

The VMIVME-7750 is a VME-based single-board computer designed for embedded applications requiring high processing power, advanced communication capabilities, and a robust architecture. The board is typically equipped with powerful processors, memory, and I/O capabilities to cater to the demanding requirements of industrial control, military, aerospace, telecommunications, and other mission-critical systems.

This module features a powerful Intel® processor and is designed for system integrators and developers who need to build real-time, high-performance embedded systems.

Key Features:

• Processor: The VMIVME-7750 typically features an Intel® Pentium® or Pentium® MMX processor, offering high processing performance.
• VMEbus Interface: Full support for the VMEbus standard, ensuring compatibility with other VME-based systems and peripherals.
• Memory: Offers options for SDRAM, typically ranging from 64MB to several GBs of RAM, with possible flash memory storage.
• I/O Interfaces: A rich set of input/output interfaces, including serial ports, Ethernet (network connectivity), and possibly USB ports, depending on the configuration.
• Expansion Slots: Support for additional expansion through VME64x or PMC (PCI Mezzanine Card) slots.
• Operating Systems: Supports multiple operating systems, including VxWorks, Linux, and Windows Embedded.

Product Parameters / Specifications:

• Processor: Typically powered by Intel Pentium® MMX processors (can vary based on the specific model configuration).
• Bus Architecture: VME64 (with support for VME64x).
• Memory: Up to 2 GB of DDR SDRAM, with options for flash memory and EEPROM storage.
• I/O Ports:
  • Ethernet: 10/100/1000 Mbps Ethernet support for networking.
  • Serial Ports: RS-232/RS-422 serial interfaces.
  • USB: Some configurations may include USB ports.
  • Digital I/O: General-purpose input/output pins for sensor and actuator connections.
• Graphics: Integrated or optional video output for VGA or DVI.
• Expansion Slots: 1 or more PMC (PCI Mezzanine Card) slots for additional I/O.
• Power Requirements: Typically, a 5V ± 5% and 12V ± 5% power supply is required.
• Environmental: Designed to operate in harsh industrial environments, with extended temperature and shock/vibration tolerance.
• Dimensions: Standard VME form factor, approximately 6.3” x 6.3” (160mm x 160mm).

Product Use / Applications:

The GE+VMIVME-7750 is used in a wide range of industries, including:

• Industrial Automation: In control systems for manufacturing and processing plants.
• Military and Aerospace: For rugged, mission-critical systems where durability and performance are paramount.
• Telecommunications: Used in base stations and network infrastructure.
• Embedded Systems: Suitable for embedded computing systems requiring high performance in limited space.
• Data Acquisition: Ideal for systems needing reliable, real-time data processing and communication.
