GE+VMIVME-7750

Description

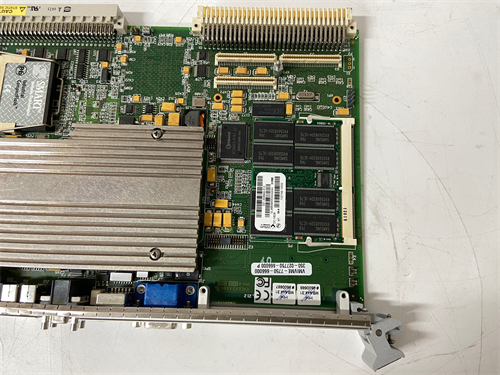

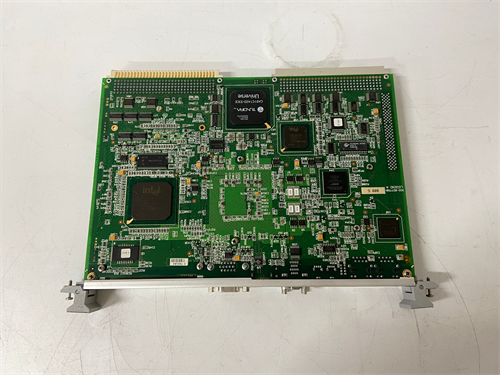

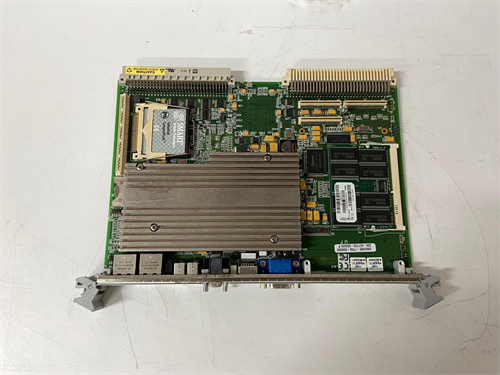

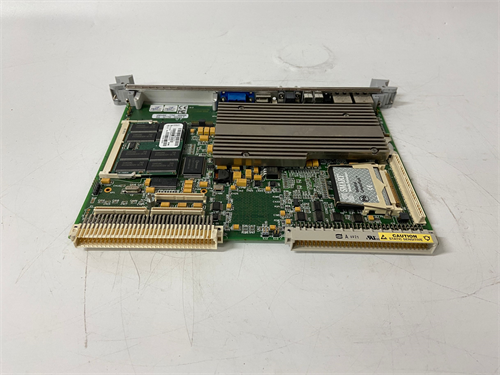

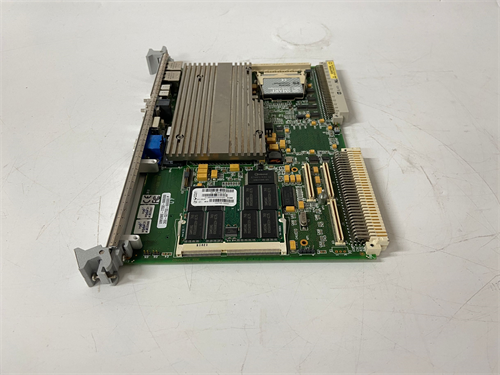

The VMIVME-7750 module by GE is a high-performance VME analog input/output module with programmable features.

Product Name:

VMIVME-7750

Product Description:

The VMIVME-7750 is a versatile VME analog input/output module that provides a wide range of analog I/O functionality for industrial and control system applications.

Product Parameters:

– Analog Input: 16 single-ended or 8 differential input channels
– Analog Output: 8 output channels
– Resolution: 16-bit
– Sampling Rate: Up to 100 kHz
– Voltage Range: +/-10V
– Isolation: 1500Vrms isolation between channels
– Programmable features: Includes programmable gain, filtering, and scan rates

Specifications:

– Bus Interface: VME64x compliant
– Operating Temperature: 0°C to 55°C
– Power Requirements: +5V and +12V
– Size: Single-slot, 6U VME module

Product Use:

The VMIVME-7750 module is designed for applications that require high-speed and accurate analog input/output functionality, such as data acquisition, process control, and monitoring systems.
