GE+VMIVME-4140

Description

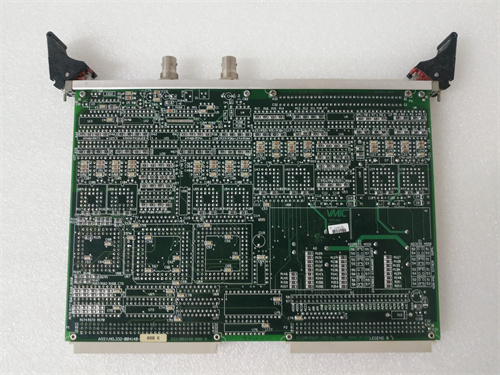

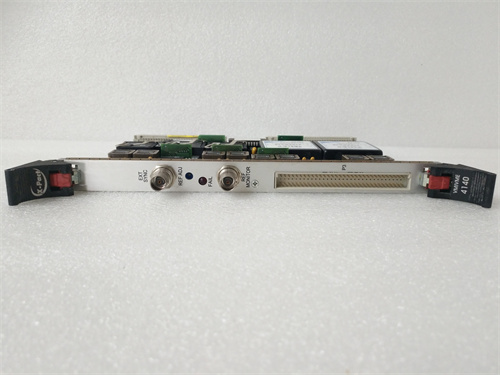

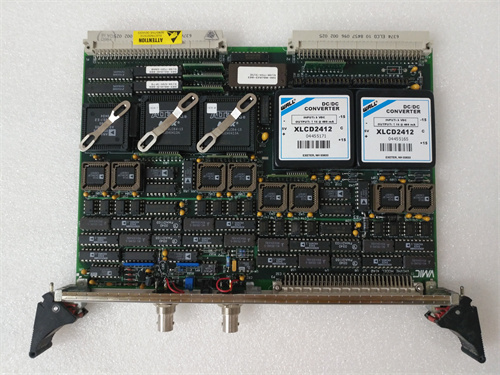

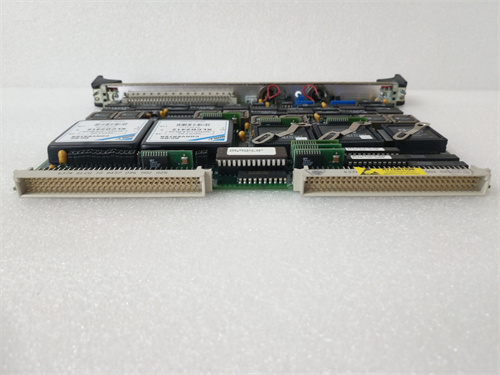

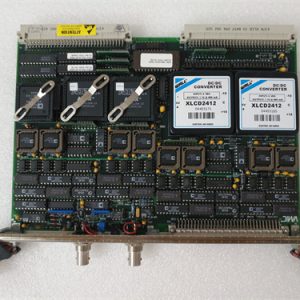

The GE VMIVME-4140 is a high-performance single-slot VMEbus module designed for analog input applications in industrial and scientific environments.

Product Name:

GE VMIVME-4140

Product Description:

The VMIVME-4140 is a 16-bit, 16-channel analog input module that provides high-speed data acquisition capabilities for VMEbus systems.

Product Parameters:

– Analog Inputs: 16 differential or 32 single-ended channels
– Resolution: 16-bit
– Maximum Sampling Rate: Up to 500 kS/s per channel
– Input Range: ±10V or ±5V
– Signal Conditioning: Programmable AC or DC coupling, filtering, and gain
– Calibration: On-board calibration for accurate measurements
– Compatibility: VMEbus (VITA 1-1994 compliant)
– Software Support: Drivers and software tools available for easy integration with various operating systems

Specifications:

– Input Channels: 16 differential or 32 single-ended
– ADC Resolution: 16-bit
– Input Range: ±10V or ±5V
– Maximum Sampling Rate: 500 kS/s per channel
– Input Impedance: 1 MΩ || 10 pF
– Accuracy: ±0.1% of FS
– Temperature Range: 0°C to 55°C
– Power Requirement: +5V and +12V from VMEbus backplane

Product Use:

The GE VMIVME-4140 module is typically used in applications that require high-speed and accurate analog data acquisition. It is well-suited for a variety of industrial and scientific applications, such as control systems, signal analysis, data logging, and test and measurement. The module can be integrated into VMEbus-based systems for real-time monitoring and analysis of analog signals.
