GE+VMIVME-2510B

Description

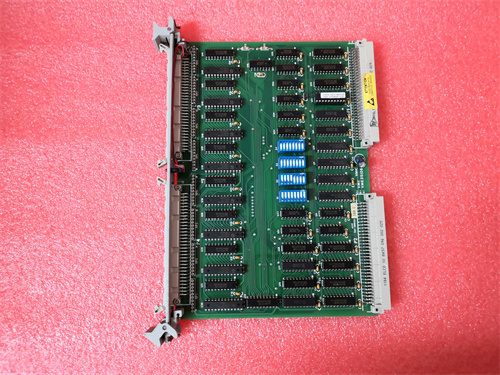

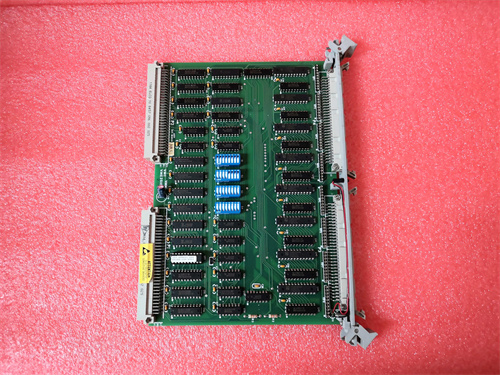

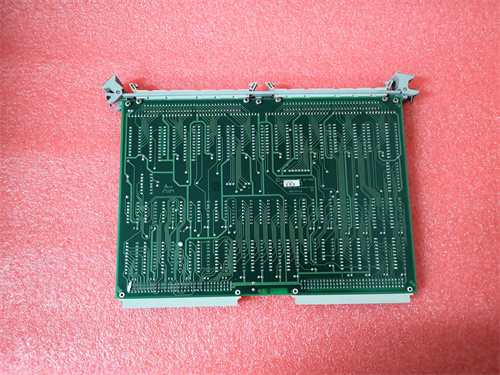

The GE VMIVME-2510B module is a high-performance analog input module designed for use in VME-based industrial and embedded systems.

Product name:

GE VMIVME-2510B Analog Input Module

Product description:

The VMIVME-2510B is a 16-bit multi-channel analog input module designed for high-speed data acquisition in VME systems. It provides high-resolution analog inputs for accurate measurement and control applications.

Product parameters:

– Analog input channels: 16 single-ended or 8 differential channels
– Resolution: 16-bit
– Input range: Programmable input ranges from ±10V to ±1V
– Sampling rate: Up to 1MSPS per channel
– Interface: VMEbus interface

Specifications:

– Voltage Range: ±10V
– Input Impedance: 10kΩ
– Isolation: 500V DC channel-to-channel
– Operating Temperature: 0°C to 60°C
– Storage Temperature: -40°C to 85°C
– Dimensions: Standard 6U VME module size

Product use:

The GE VMIVME-2510B module is typically used in industrial automation, data acquisition, motion control, and other embedded systems that require high-speed and accurate analog input capabilities. It can be integrated into VME-based systems to monitor and control various analog signals with high precision and reliability.
