GE+S710D-EST2

Description

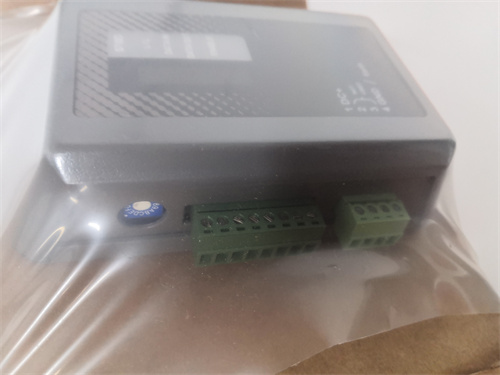

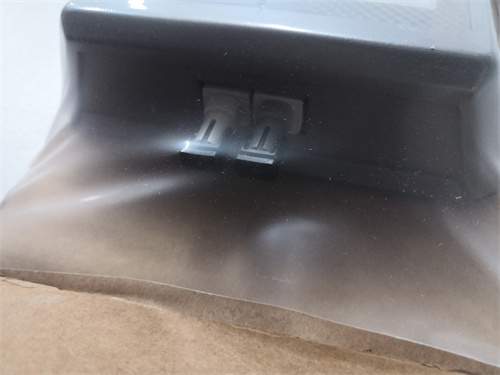

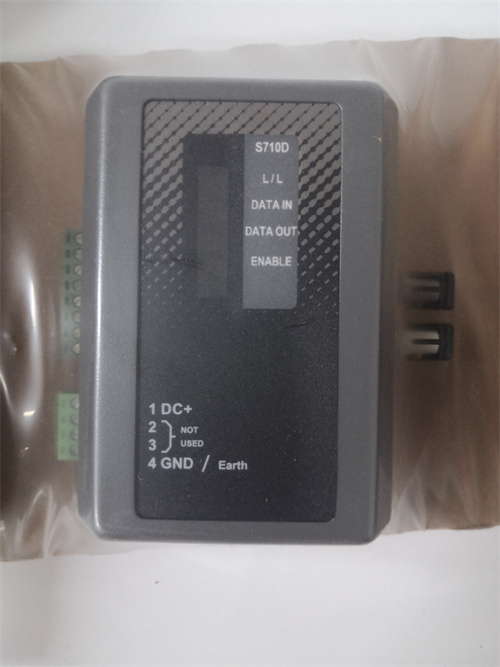

The GE+S710D-EST2 module is a signal conditioning and tripping logic module in GE Multilin Series 70 protection systems for substations and industrial applications.

Product Name:

GE Multilin S710D-EST2 signal conditioning and tripping logic module

Product Description:

The module has a variety of uses in Series 70 protection systems, including:

Signal conditioning: Processing analog input signals from various sensors and sensors for monitoring power system parameters such as voltage, current, and frequency. This may include:
Amplifies or attenuates the signal to match the desired input range.
Filter out unwanted noise or distractions.
Linearization converts the nonlinear sensor response into a linear relationship.
Tripping logic: implements a predefined algorithm according to the processed signal, and starts protection actions such as tripping when the system is abnormal.

S710D-EST2 Module Full information:

Specific number and type of analog input channels
More information about signal conditioning functions
Specific trip logic features and configuration options
Compatibility with other series 70 system components and software
