Description

The GE IS220PDIOH1A module is part of the GE (General Electric) Intelligent Platforms series, specifically designed for use in various industrial automation applications.

### Product Name:

**GE IS220PDIOH1A – Digital Input/Output Module**

### Product Description:

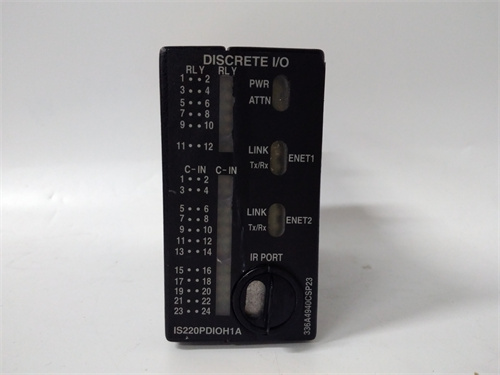

The GE IS220PDIOH1A is a Digital Input/Output (I/O) module designed for the Mark VIe and Mark VIeS control systems. This module serves as a critical interface between the control system and field devices, allowing for the monitoring and control of various processes. It is equipped with high-speed digital I/O for collecting data from field sensors and sending control signals to actuators.

### Product Parameters and Specifications:

– **Type:** Digital Input/Output Module
– **Model Number:** IS220PDIOH1A
– **Input Channels:**
– Supports multiple digital input channels for discrete sensors.
– Input voltage ranges typically from 20-30V DC (depending on configuration).
– **Output Channels:**
– Compatible with various relay or transistor outputs.
– Supports both sinking and sourcing configurations.
– **Communication Protocol:**
– Utilizes the GE control system communication protocols for seamless integration.
– **Power Requirement:**
– Operating voltage typically within 24V DC.
– Specific current requirements depend on the number of I/O channels and load.
– **Environmental Specs:**
– Operating temperature range: -40°C to +70°C.
– Humidity: Typically rated for a 5-95% non-condensing environment.
– **Physical Dimensions:**
– Size and weight are specified within compatibility requirements for racks or panels.
– **Mounting Type:**
– Designed for rack-mount installation in industrial control enclosures.

### Product Use:

The IS220PDIOH1A module is utilized in various industrial applications, including:

– **Process Control:** Monitoring various process variables such as temperature, pressure, and flow using digital sensors.
– **Automation Systems:** Facilitating real-time control and automation of plant and machinery by integrating with controllers, actuators, and switches.
– **Safety Systems:** Ensuring reliable signaling from safety devices to prevent accidents in industrial environments.
– **Data Acquisition:** Collecting data for analysis and troubleshooting in plant operations.

This module is pivotal in industries such as oil and gas, power generation, water treatment, and manufacturing, among others.

### Integration:

The IS220PDIOH1A module can be easily integrated with GE’s other automation products, enhancing overall system performance and reliability.
