GE+IS215VCMIH2CA IS200VCMIH2CAA

Description

IS series IS215VCMIH2CA IS200VCMIH2CAA turbine module

W; 15 3 5 9 2 9 8 2 9 3 IS series IS215VCMIH2CA IS200VCMIH2CAA turbine module

Series: Mark VI

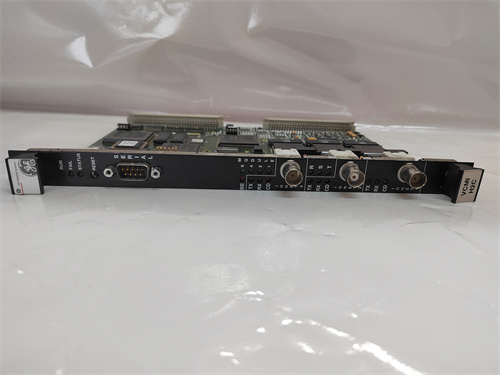

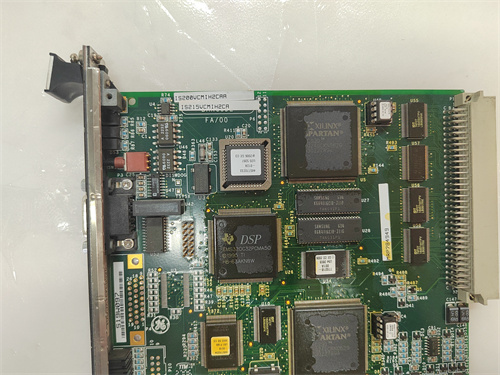

The IS215VCMIH2CA is a VME communication interface card that is part of the GE Speedtronic Mark VI gas turbine control system. The PCB is used as a link between the I/O board and the controller. It is also used as a communication interface for IONet or the system control network. The four-port connector is integrated into the front panel of the IS215VCMIH2CA. These include an RS-232C serial port, a Type D plug connector, and three IONet 10Base2 Ethernet connectors. Three LED indicators labeled TX/RX/CD are connected to each IONet port. Status, failure, running, and 1, 2, 4, and 8 are some of the many LED indicators on the board. The former is located above the reset button (button), while the latter is located directly below the serial port. The design includes a TI 32-bit digital signal processor chip. There are three transformer components in total.

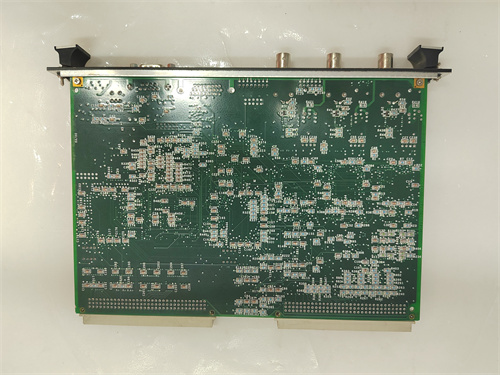

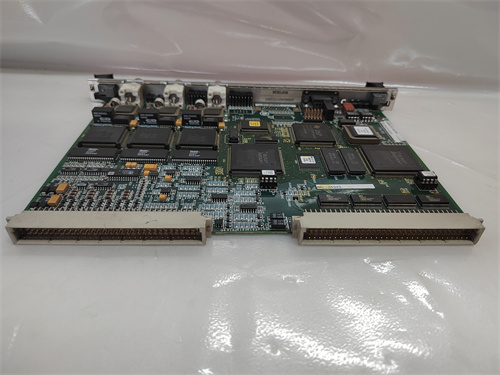

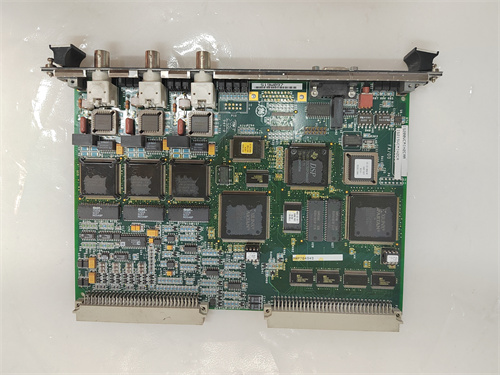

The VME bus master card contains more than 50 integrated circuits, including oscillating chips. The high-frequency noise on the circuit board is reduced by using inductive magnetic beads. The board has two backplane connectors, a 12-pin vertical connector, and many other conductive connectors.
