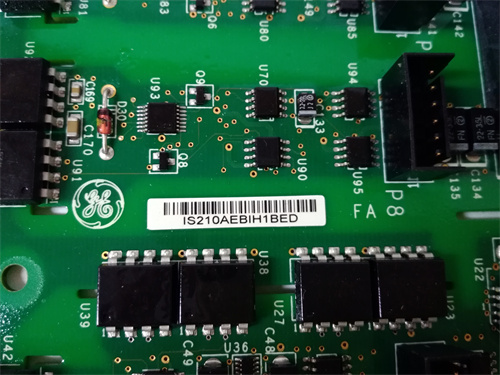

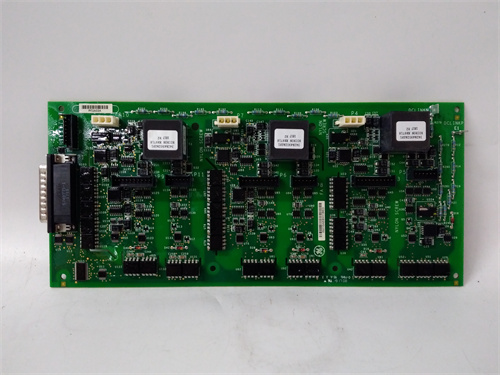

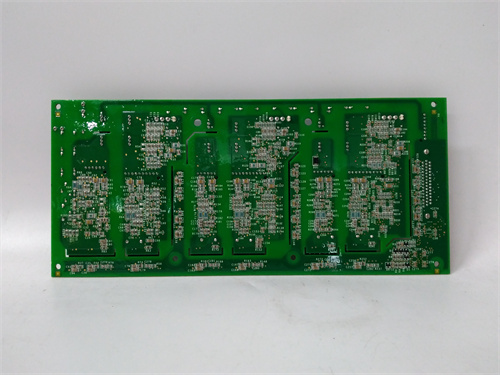

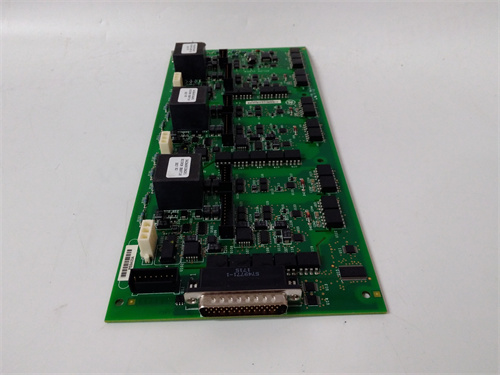

GE+IS210AEBIH1BED

Description

The GE IS210AEBIH1BED module is a component of the Mark VIe system, which is part of GE’s Speedtronic™ series used for controlling and protecting gas and steam turbines in power generation applications. This module typically acts as an I/O interface board in the control system.

Product Name:

GE IS210AEBIH1BED I/O Module

Product Description:

The GE IS210AEBIH1BED is an I/O interface board module used in the GE Speedtronic Mark VIe turbine control system. This module facilitates communication between the turbine control system and the field devices by providing inputs and outputs (I/O). It supports the integration of digital and analog signals from the sensors, actuators, and other field instruments to the control system, ensuring safe, reliable, and efficient turbine operation.

Product Parameters and Specifications:

• Model: IS210AEBIH1BED
• Part of: GE Speedtronic Mark VIe
• Type: I/O interface board
• Form Factor: Plug-in module for the Mark VIe system
• Signal Types Supported:
  • Digital inputs/outputs (Discrete signals)
  • Analog inputs/outputs (Voltage or current signals)
• Voltage Supply: Typically 24 VDC, but may vary based on system requirements
• Temperature Range: Standard operating temperature range: -40°C to +70°C
• Dimensions: Typically 19.4 cm (length) x 17.8 cm (width), though actual size may vary
• Weight: Approx. 1.5 kg (3.3 lbs)
• Communication: Uses system backplane for communication with other control modules
• Compatibility: Designed for use within the GE Speedtronic Mark VIe platform
• Mounting: Pluggable module, designed to be mounted within the Mark VIe rack or system chassis

Product Use:

The IS210AEBIH1BED module is primarily used to:

1. Interface Field Devices: The module connects field instruments (such as sensors, transmitters, and actuators) to the turbine control system.
2. Signal Conversion: Converts signals from field devices (digital/analog) into a form that can be understood by the control system.
3. Monitoring and Control: Provides monitoring and control capabilities for turbine components, enabling safe and optimized operation.
4. System Integration: Integrates with the larger GE Speedtronic turbine control system, contributing to the overall health and performance monitoring of the turbine unit
