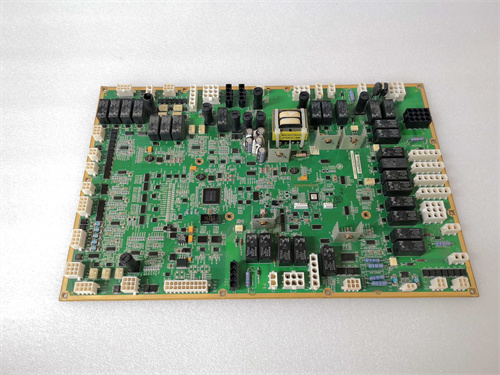

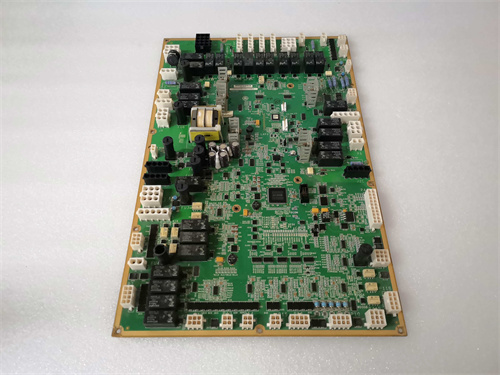

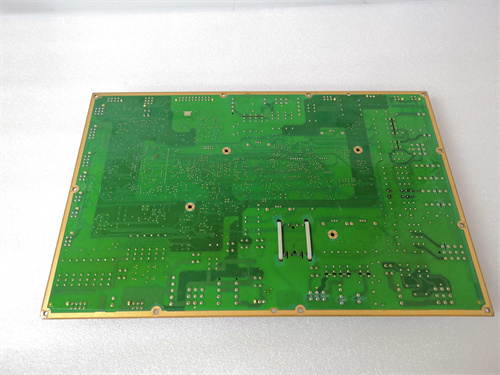

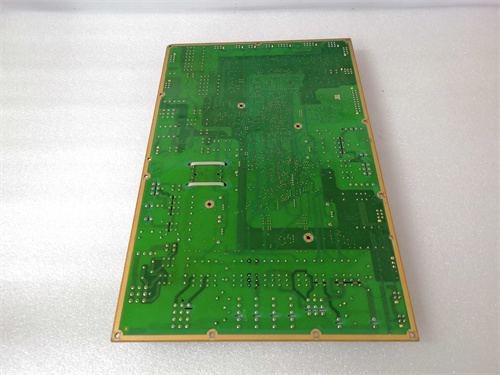

GE+IS200WETAH1AEC

Description

The GE IS200WETAH1AEC module is part of the GE Mark VIe series, a control system used in industrial applications, particularly for turbine and generator control in power plants. This specific module belongs to the family of Turbine Control Modules within the GE Mark VIe platform, which is widely used in gas and steam turbine applications.

Product Name:

GE IS200WETAH1AEC

Product Description:

The GE IS200WETAH1AEC is a Turbine Control Interface Module used in the Mark VIe system, which is a comprehensive control system for managing and protecting industrial turbine processes. The module serves as an interface between the turbine control system and the actual turbine hardware, providing monitoring and control functionalities for a range of parameters, such as speed, temperature, and pressure, among others. It features high reliability and integration capabilities in both gas and steam turbine systems, enabling enhanced control and diagnostic capabilities.

This module is part of the Mark VIe‘s distributed control system architecture, which is used in critical, high-performance environments like power plants, chemical processing plants, and other industrial processes.

Product Parameters:

• Manufacturer: General Electric (GE)
• Module Type: Turbine Control Interface Module
• System Compatibility: Compatible with GE Mark VIe control systems
• Interface: Typically used in conjunction with other Mark VIe modules, such as I/O modules and field devices
• Inputs/Outputs: Supports both analog and digital I/O channels for interfacing with sensors, actuators, and other devices
• Communication Protocols: Ethernet-based communication for system integration with remote monitoring, diagnostics, and configuration tools
• Redundancy: Typically designed for high-reliability systems with potential for redundant configurations for fail-safe operation
• Power Supply: Requires a DC input voltage, which is typically specified in the documentation based on specific installation needs
• Form Factor: Standard rack-mounted design, compatible with Mark VIe racks

Product Specifications:

• Operating Temperature: Typically 0°C to 60°C (specific range depending on environment and configuration)
• Storage Temperature: -40°C to 85°C
• Power Requirements: 24V DC (common for Mark VIe modules)
• Mounting: 19-inch rack mounting (standard for GE Mark VIe control systems)
• Dimensions: Standard size according to Mark VIe specifications
• Weight: Approximately 2-3 kg (subject to exact model configuration)

Product Use:

The IS200WETAH1AEC module is primarily used for:

• Turbine and Generator Control: It provides a direct interface for managing various turbine parameters and signals, allowing for automation and efficient monitoring of critical turbine systems.
• System Integration: Used as part of a larger GE Mark VIe distributed control system, connecting sensors, actuators, and control devices.
• Real-Time Data Processing: The module can collect real-time operational data from the turbine and send it back to the control system for analysis and decision-making.
• Safety and Protection: It can help protect turbines by monitoring key parameters (e.g., temperature, pressure, vibration) and triggering alarms or shutdowns when predefined thresholds are exceeded.

Key Applications:

• Power Plants: Gas and steam turbine control and monitoring.
• Industrial Manufacturing: Automation of turbines and rotating machinery.
• Energy Generation: Used in both conventional and renewable power generation plants.
