GE+IS200TPROS1CBB

Description

The GE IS200TPROS1CBB is a part of General Electric’s Mark VIe series of Distributed Control System (DCS) components, which are commonly used in industrial automation and control systems. The specific module you’re asking about is an I/O module designed for use in industrial applications such as power plants, oil refineries, and other facilities that require robust process control and monitoring.

Product Name

GE IS200TPROS1CBB

Product Description

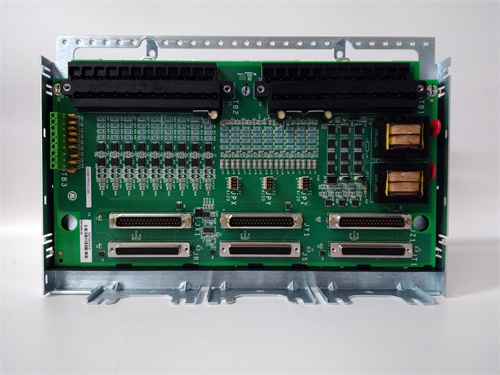

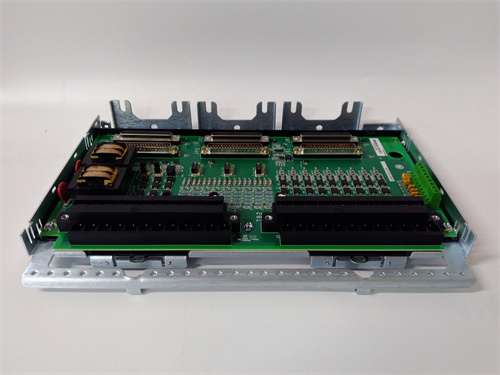

The GE IS200TPROS1CBB is a Turbine Protection and Control I/O module within the Mark VIe system, specifically designed for interfacing with turbine control systems in a wide range of industrial environments. The module plays a critical role in providing necessary data acquisition, processing, and control capabilities for turbines and other machinery in real-time.

The IS200TPROS1CBB module helps with turbine protection, monitoring of parameters like speed, temperature, vibration, and other operational values. The module interfaces with other system components, including sensors, actuators, and control units to ensure safe and optimal turbine operation.

Product Parameters

• Power Supply: Typically powered by the Mark VIe chassis (24V DC).
• Input Type: The module can handle a wide range of inputs, typically digital, analog, and/or thermocouple inputs, depending on the specific configuration.
• Output Type: Can provide digital outputs, alarms, and control signals to the turbine or other system components.
• Communication: Usually supports GE proprietary protocols for communication within the Mark VIe system, as well as standard protocols like Modbus.
• Mounting: The module is typically mounted in a Mark VIe I/O chassis, which is designed to handle the rugged environmental conditions in industrial settings.

Specifications

• Module Type: Protection I/O Module
• Input/Output Channels: Varies by configuration, often 16 or more inputs and outputs.
• Signal Processing: Advanced processing capabilities for turbine protection logic, including overspeed, vibration, and temperature thresholds.
• Redundancy: Often equipped with built-in redundancy for critical control and protection functions.
• Diagnostics: Features diagnostic LEDs for easy troubleshooting and monitoring.
• Environmental: Designed for harsh industrial environments, with specifications for operating temperature, humidity, and vibration tolerance.
• Compliance: Typically complies with industrial standards like IEC, UL, or CE for safety and performance.

Product Use

The IS200TPROS1CBB module is used primarily in:

• Turbine Protection Systems: It ensures that turbines operate within safe operational parameters and shuts down or alarms in case of dangerous conditions.
• Process Control: In industrial plants, it plays a role in continuously monitoring critical equipment like turbines to ensure efficient and safe operation.
• Automation Systems: The module is integrated into larger DCS (Distributed Control System) for process automation, where it acts as an interface between physical field devices and the central control system.
• Alarm and Shutdown Functions: It helps in triggering alarms and initiating shutdown procedures to protect the turbine from potential damage due to excessive stress, temperature, speed, or vibration.

Typical Applications

• Power Generation: Used in gas and steam turbine power plants for safe and efficient energy production.
• Oil and Gas: Used in refineries, petrochemical plants, and offshore rigs for monitoring and controlling turbine systems.
• Manufacturing: In large industrial processes, particularly those involving rotational equipment.

Maintenance and Support

• Diagnostics: Provides real-time diagnostics and troubleshooting information via the Mark VIe control system interface.
• Field Replacement: The module is field-replaceable, with quick installation and integration into the existing control system setup.
