GE+IC698CPE030

Description

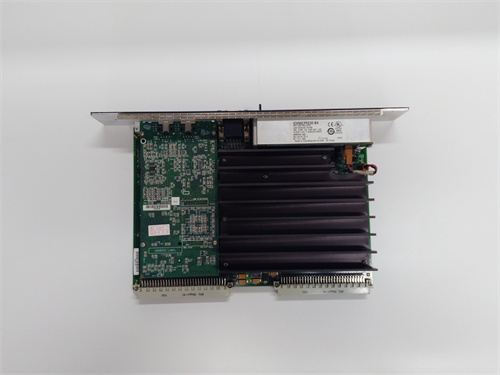

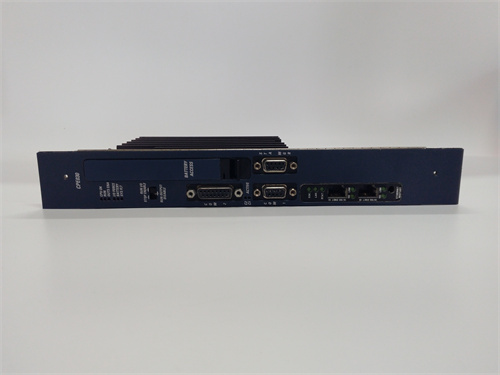

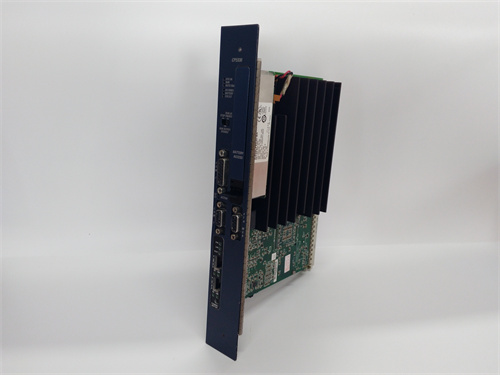

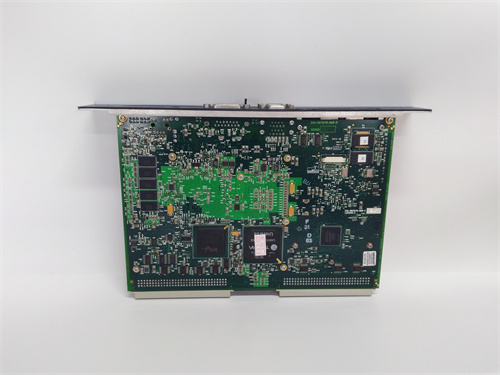

The GE IC698CPE030 is a module produced by General Electric as part of their Series 90-30 PLC (Programmable Logic Controller) family.

Product Name:

GE IC698CPE030

Product Description:

The IC698CPE030 is a CPU (Central Processing Unit) module designed for use with the GE Fanuc Series 90-30 PLC system. This module acts as the central processing unit in the control system, responsible for executing the PLC program, managing I/O communication, and interfacing with other devices in an automation system. It is used to perform logic control, data processing, and sequencing in industrial applications, such as manufacturing, automation, and process control.

The IC698CPE030 is a part of the Series 90-30 family, which is known for its scalability, modularity, and reliability in industrial environments.

Key Features:

• Processor Speed: It provides processing capabilities suitable for controlling complex industrial applications.
• Communication Ports: Typically supports serial and Ethernet communication options to interact with other devices and systems.
• Program Memory: Includes onboard memory to store ladder logic and other programming structures.
• Diagnostic Functions: Equipped with diagnostic capabilities to help troubleshoot and maintain the system effectively.

Product Parameters and Specifications:

• Part Number: IC698CPE030
• Series: Series 90-30
• Module Type: Central Processing Unit (CPU)
• Power Supply Requirements:
  • Voltage: Typically operates on a 5V DC power supply provided by the PLC rack or a separate power supply.
  • Current Consumption: Dependent on the specific configuration but generally in the range of hundreds of milliamps.
• Processing Speed:
  • CPU executes tasks at a speed sufficient for industrial control, often specified in instructions per scan (IPS).
• Memory:
  • RAM: Can vary depending on the specific configuration, typically in the range of kilobytes to megabytes.
  • Program Memory: Sufficient to store the application programs and routines needed for typical industrial applications.
• Communication Ports:
  • RS-232/RS-485 Serial Ports for connecting with other modules and devices.
  • Ethernet Communication (in some models) for networked systems and remote access.
• Battery Backup: Includes battery backup for retaining memory during power cycles.
• I/O Compatibility: Compatible with the full range of GE Series 90-30 I/O modules, allowing users to expand the system as needed.
• Operating Environment:
  • Temperature Range: Typically operates in the range of 0°C to 60°C (32°F to 140°F).
  • Humidity Range: 5% to 95% relative humidity (non-condensing).
• Dimensions: Typically fits into the GE 90-30 modular rack system.

Product Use:

The IC698CPE030 CPU is used in a variety of industrial automation applications, including:

• Manufacturing Automation: It controls production lines, assembly processes, and machinery.
• Process Control: Used in chemical, pharmaceutical, and food processing industries for controlling variables such as pressure, temperature, flow, and level.
• Energy Management: In energy sectors, it manages equipment such as pumps, motors, and HVAC systems.
• Material Handling: Common in conveyors, packaging systems, and robotic applications.
• Infrastructure Control: Used for monitoring and controlling traffic lights, building management systems, and other infrastructure applications.
