Description

The GE IC698CHS009A is a component used in industrial automation systems, particularly with GE’s Series 90-30 PLC (Programmable Logic Controller) systems.

### Product Name:

**GE IC698CHS009A Rack**

### Product Description:

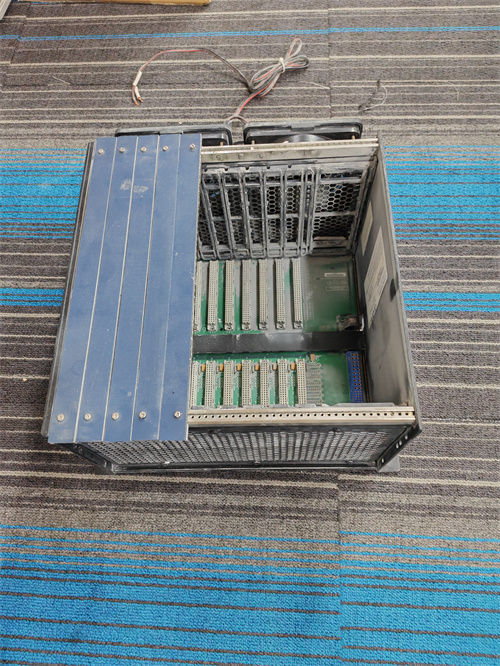

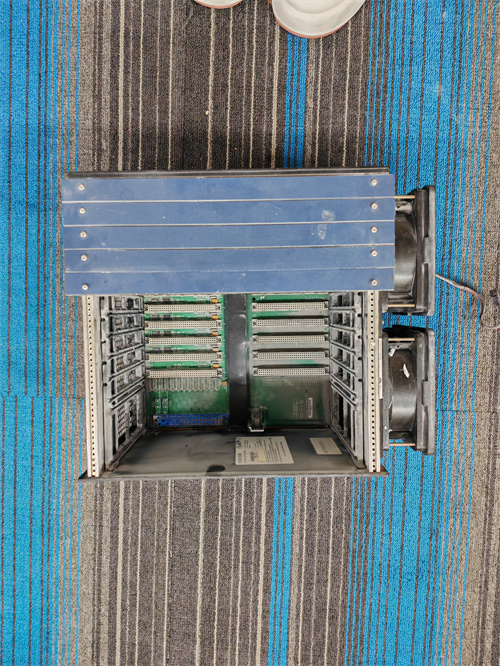

The GE IC698CHS009A is a rack designed for use with the GE Series 90-30 PLC systems. It serves as a central mounting structure that holds various modules such as CPU units, I/O modules, and communication modules. The rack provides the necessary electrical connections and mechanical support for these modules, allowing them to operate as part of a coordinated control system.

### Product Parameters and Specifications:

– **Rack Size and Dimensions:** The IC698CHS009A typically accommodates up to 9 modules, although the exact dimensions might be specified in the technical manual.
– **Module Slots:** The rack is designed to fit 9 slots for different modules, including CPUs, I/O modules, and communication modules.
– **Power Supply Compatibility:** The rack requires an appropriate power supply unit to power the modules, which is often provided separately.
– **Backplane:** Integrated backplane connections facilitate communication between the modules.
– **Mounting:** Designed for DIN rail or panel mounting depending on the installation requirements.
– **Environmental Specifications:** It is designed to operate within specific temperature and humidity ranges, which are usually detailed in the product datasheet.

### Product Use:

– **Industrial Automation:** The primary use of the IC698CHS009A rack is in industrial automation systems where it supports the Series 90-30 PLC modules. It acts as the central unit where the PLC components are mounted and interconnected.
– **Control Systems:** It is used in various control systems to ensure reliable communication and operation of the PLC modules, facilitating complex control and monitoring tasks in manufacturing, processing, and other industrial applications.
