GE+IC697MDL750

Description

The GE IC697MDL750 module is a Digital Output Module from the GE Fanuc Series 90-70 family of PLC products.

Product Name:

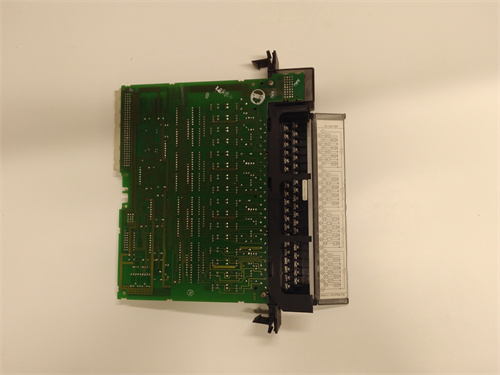

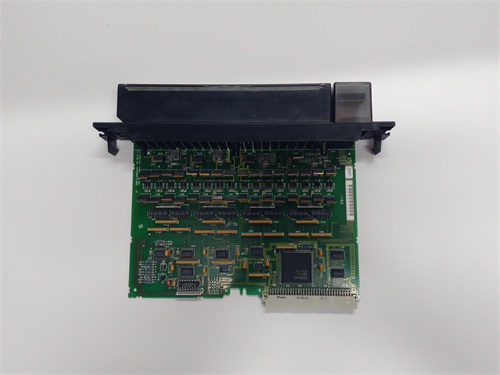

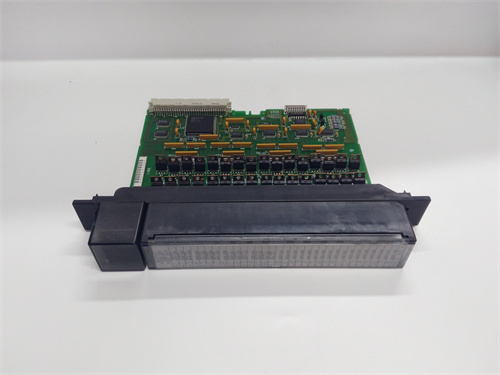

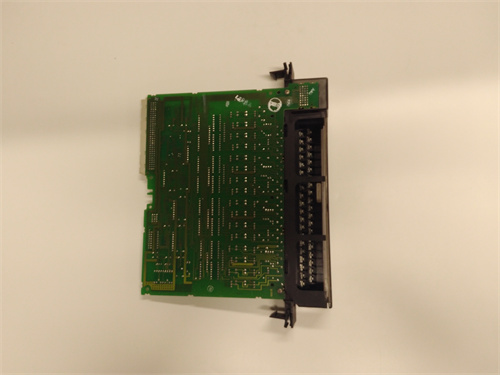

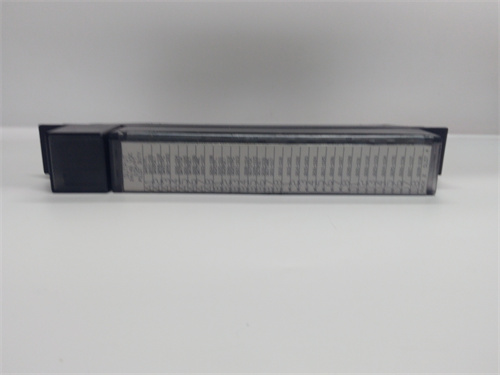

GE Fanuc IC697MDL750 Digital Output Module

Product Description:

The IC697MDL750 is a 12/24 VDC Positive Logic, 8-Point Output Module designed for use in industrial automation applications.

Product Parameters:

– Number of Outputs: 8
– Voltage: 12/24 VDC
– Current: 0.5A per point
– Logic: Positive Logic
– Isolation: 1500V between field side and logic side
– Termination: Removable terminal block

Specifications:

– Operating Voltage: 12/24 VDC (nominal)
– Operating Temperature: 0 to 60 degrees Celsius
– Storage Temperature: -40 to 85 degrees Celsius
– Relative Humidity: 5% to 95% (non-condensing)
– Weight: 0.3 lbs (0.14 kg)

Product Use:

The GE IC697MDL750 module is used to interface with external devices such as solenoids, relays, indicators, and other digital devices in an industrial control system. It provides the necessary outputs for controlling and monitoring various processes in manufacturing, utilities, and other industrial applications.
