GE+IC693DNM200-BD

Description

Product Name:

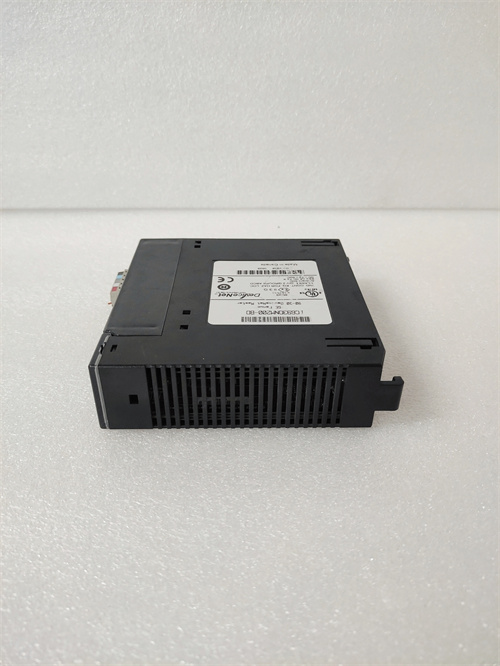

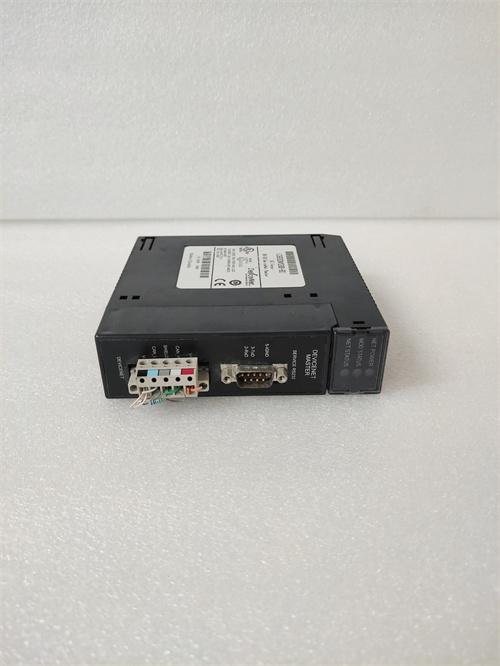

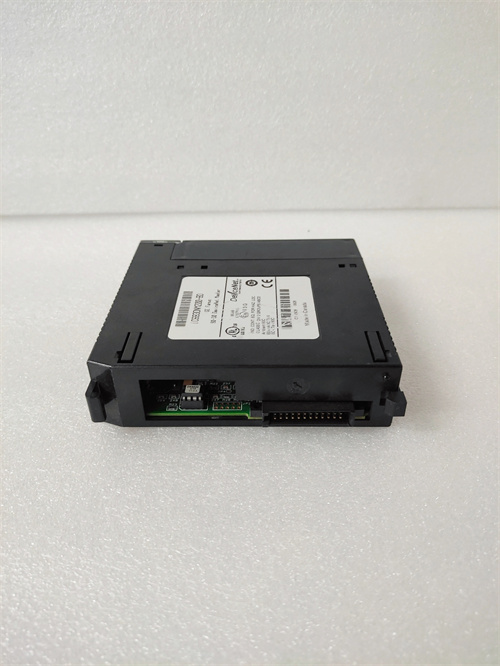

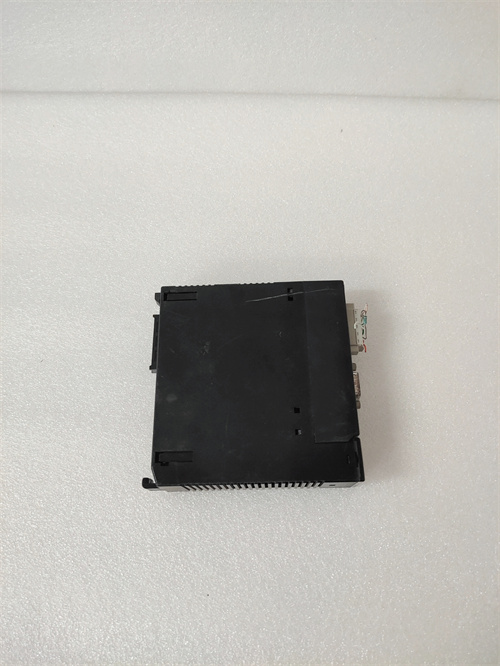

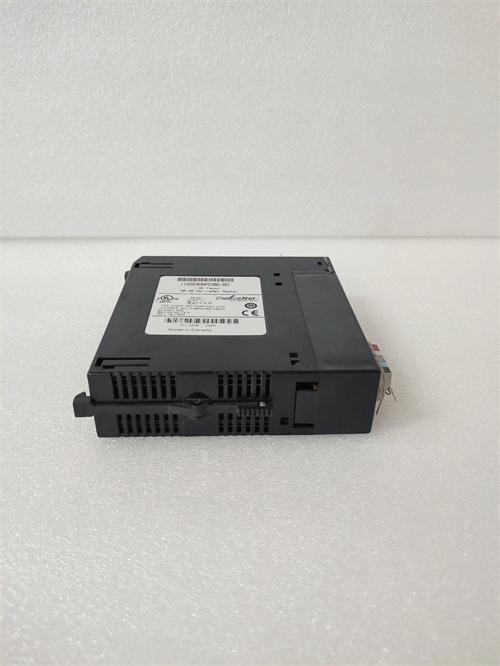

GE IC693DNM200-BD Communication Module

Product Description:

The GE IC693DNM200-BD is a Genius I/O DeviceNet Master communication module designed for use with GE Series 90-30 PLC systems. It allows for seamless communication between the PLC and multiple DeviceNet devices on a network.

Product Parameters:

– Input Voltage: 5 VDC
– Communication Protocol: DeviceNet
– Number of DeviceNet Nodes: Up to 64
– Operating Temperature: 0 to 60 degrees Celsius
– Dimensions: 2.25 x 3.40 x 5.88 inches
– Weight: 0.31 lbs

Specifications:

– Supports cyclic I/O data transfer
– Configurable via GE Proficy Machine Edition software
– LED indicators for power, network status, and communication activity
– Provides diagnostic information for troubleshooting

Product Use:

The GE IC693DNM200-BD communication module is used to facilitate communication between a GE Series 90-30 PLC and DeviceNet devices such as sensors, actuators, and drives. It allows for the exchange of data between the PLC and these devices, enabling advanced automation and control capabilities within industrial applications.
