GE+IC693CMM301

Description

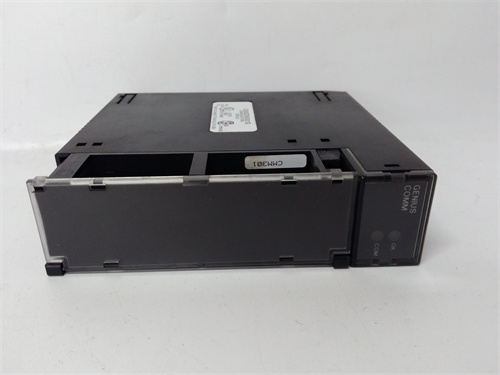

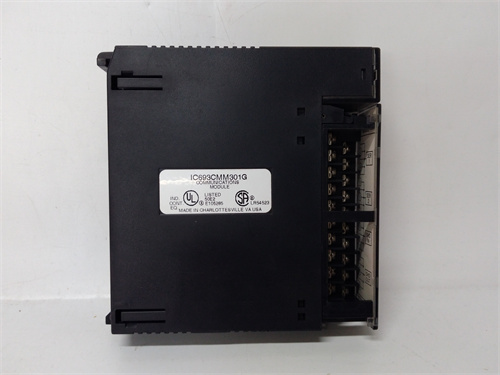

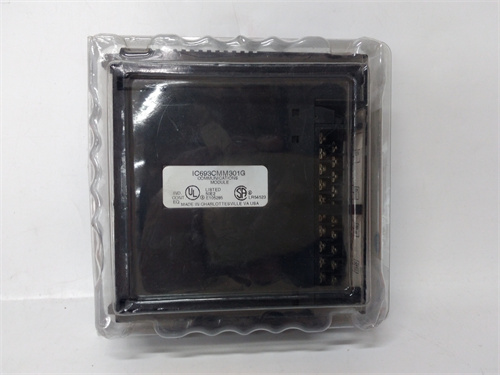

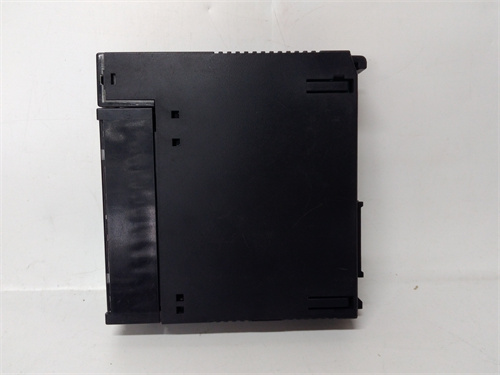

The GE IC693CMM301 is a Communication Processor Module used within the GE Fanuc 90-30 series PLC (Programmable Logic Controller) systems. This module is primarily designed to enable communication between the 90-30 PLC and other devices or networks.

Product Name:

GE IC693CMM301
Communication Processor Module for GE 90-30 PLC

Product Description:

The IC693CMM301 is a communication module that facilitates communication between a GE Fanuc 90-30 PLC and external systems using various communication protocols. This module is typically used in industrial automation applications to allow the PLC to interface with remote I/O, other PLCs, computers, and various types of industrial equipment.

The CMM301 supports several different communication protocols, such as Modbus, and is capable of connecting to Ethernet or serial communication networks. It provides a means for system integration, allowing data exchange between devices and enhancing the PLC’s flexibility and functionality in an industrial environment.

Product Parameters & Specifications:

• Product Type: Communication Processor Module
• Part Number: IC693CMM301
• Compatible with: GE Fanuc 90-30 series PLCs
• Communication Protocols:
  • Modbus RTU (Serial)
  • Modbus TCP (Ethernet)
  • Allen-Bradley DF1 (Serial)
  • Other custom protocols through configuration
• Ports:
  • 1 x Ethernet Port (for Modbus TCP)
  • 1 x Serial Port (for Modbus RTU and other serial communication protocols)
• Data Rate:
  • Ethernet: 10/100 Mbps (depending on the configuration)
  • Serial: 9600 to 115200 bps
• Power Consumption: Typically around 1.8W (depends on configuration)
• Operating Voltage: 5V DC (from the PLC rack)
• Mounting Type: Plug-in module for 90-30 series PLC
• Dimensions: Approx. 3.75 x 5.75 x 2.0 inches (W x H x D)
• Weight: Approx. 0.5 lbs (226g)
• Temperature Range:
  • Operating: 0°C to 60°C
  • Storage: -40°C to 85°C
• LED Indicators: Indicating network status and operational health of the module.

Product Use:

The IC693CMM301 is used to extend the capabilities of a GE Fanuc 90-30 PLC by adding remote communication functionality. This is particularly useful for:

• Industrial Automation: Connecting PLCs to remote I/O devices or other automation systems.
• Remote Monitoring: Allowing remote access for data collection, monitoring, and control.
• SCADA Systems: Enabling communication between the PLC and SCADA systems (Supervisory Control and Data Acquisition).
• Data Exchange: Facilitating communication with other PLCs, industrial equipment, or enterprise systems for real-time data exchange.

Common Applications:

• Manufacturing automation: Used to integrate machinery, sensors, and controllers across a factory floor.
• Energy management: Connecting PLCs with energy monitoring systems to track performance and optimize energy usage.
• Water treatment: Used to connect systems that monitor and control water treatment processes.
• Building automation: Enabling communication between PLCs in HVAC, lighting control, and security systems.
