GE+IC660BBD023

Description

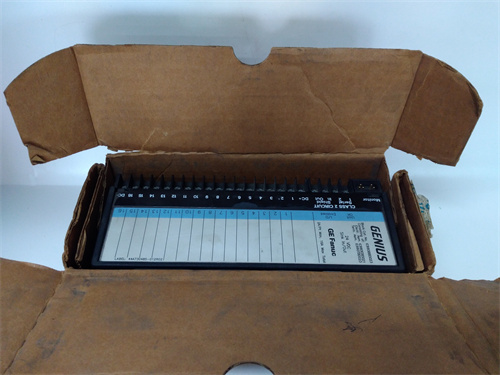

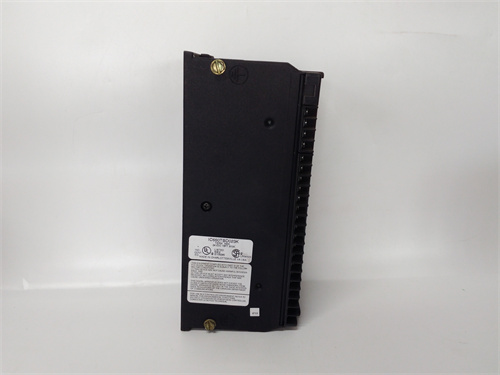

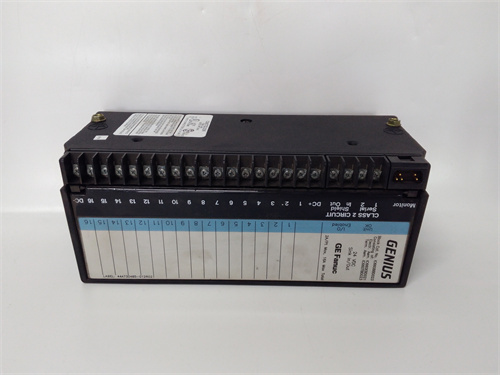

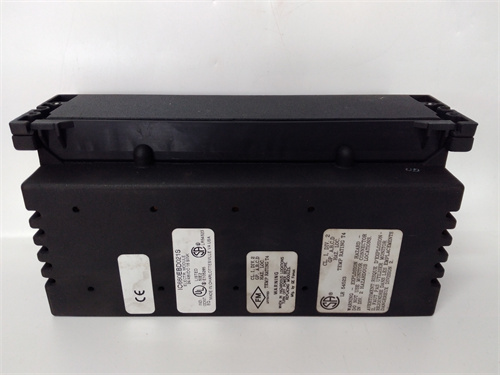

The GE IC660BBD023 is a 32-Channel Sink Input Block Module for a GE PLC system.

Product Name:

IC660BBD023 32-Channel Sink Input Block

Product Description:

The IC660BBD023 module is designed to provide 32 channels of sink (PNP) digital input, ideal for interfacing with a wide range of industrial sensors and devices.

Product Parameters:

– Number of Channels: 32
– Input Type: Sink (PNP)
– Input Voltage Range: 18-30 VDC
– Input Current: 5 mA max per point
– Isolation: 1500V rms between field side and logic side

Specifications:

– Operating Temperature: 0 to 60°C
– Storage Temperature: -40 to 85°C
– Relative Humidity: 5-95%, non-condensing
– Mounting: Standard GE PLC rack mount

Product Use:

The IC660BBD023 module is commonly used in industrial control and automation applications where a large number of digital input signals need to be monitored and processed by a PLC system. It is suitable for use in manufacturing, process control, and any other industrial environments where reliable and high-density digital input capabilities are required.
