GE+DS3800DFXA1B1C

Description

The GE DS3800DFXA1B1C module is part of the Mark VIe control system, designed to provide superior performance and reliability in industrial applications.

Product Name:

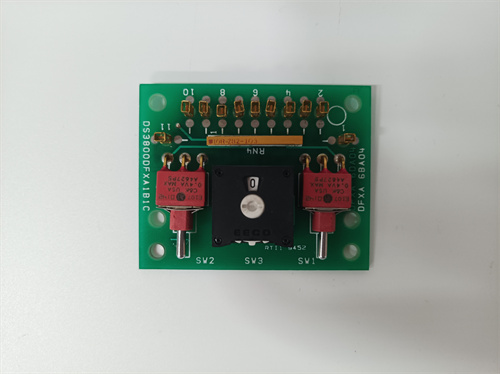

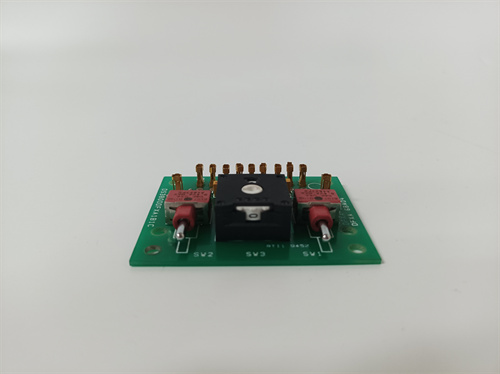

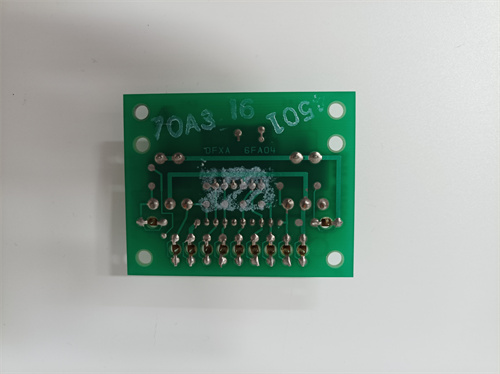

GE DS3800DFXA1B1C module

Product Description:

The DS3800DFXA1B1C is a digital excitation control module, used in power generation and industrial processes to regulate the excitation of synchronous generators. It provides precise control of the generator field current, ensuring stable and efficient power output.

Product Parameters:

The module supports various parameters related to excitation control, including field current setpoints, voltage regulation, and control modes. It also features diagnostic and monitoring capabilities to ensure the proper functioning of the excitation system.

Specifications:

– Input Voltage: 24V DC nominal
– Maximum Field Current: 10A
– Control Modes: Automatic voltage regulation (AVR), manual voltage regulation (MVR)
– Communication Interface: RS-485 communication port
– Operating Temperature: -20°C to 60°C

Product Use:

The DS3800DFXA1B1C module is typically used in conjunction with synchronous generators in power plants, utilities, and industrial facilities. It plays a critical role in maintaining grid stability, voltage regulation, and reactive power control. The module’s advanced features make it suitable for use in a wide range of power generation applications, providing reliable and precise excitation control.
