GE+DS200TBQDG1AFF

Description

The GE DS200TBQDG1AFF is a terminal board used in the GE Mark V and Mark VI control systems.

Product Name

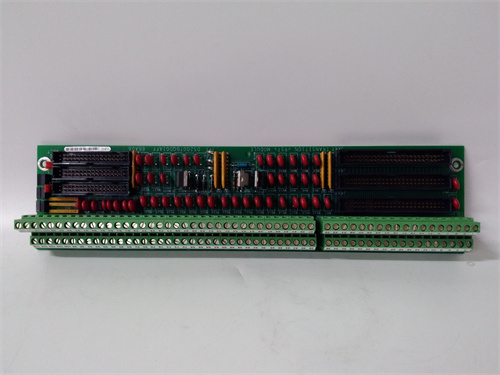

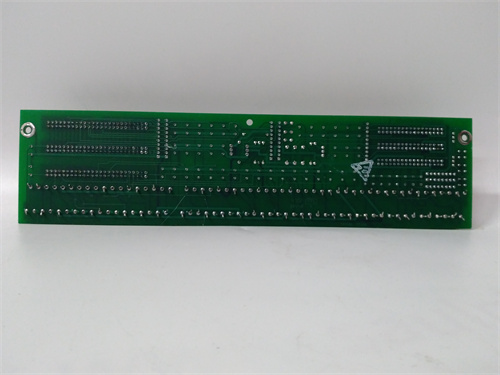

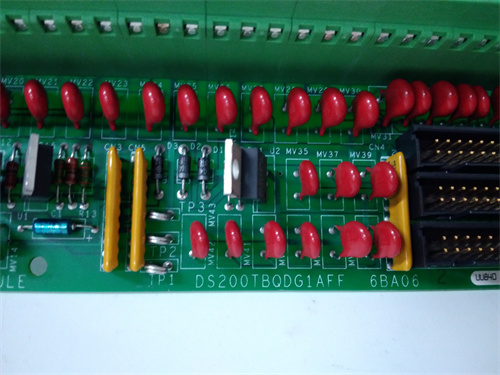

GE DS200TBQDG1AFF Terminal Board

Product Description

The DS200TBQDG1AFF terminal board serves as a connection point for various signals in turbine control applications. It facilitates communication between different components of the control system, providing a reliable interface for wiring and signal management.

Product Parameters

• Type: Terminal Board
• Application: Used in GE turbine control systems, primarily in Mark V and Mark VI systems.
• Connections: Supports multiple connections for inputs and outputs from the control system.
• Mounting: Designed for easy integration into control panels.

Specifications

• Voltage Rating: Typically compatible with industrial voltage levels.
• Current Rating: Depends on the specific configuration but designed for standard operational loads.
• Material: Typically made from durable materials to withstand industrial environments.
• Size: Standard dimensions for ease of installation in control panels.

Product Use

The DS200TBQDG1AFF terminal board is primarily used in the following applications:

• Control Systems: Provides a central point for connecting various control signals.
• Signal Distribution: Facilitates the distribution of power and control signals to various system components.
• Integration: Works with other modules and boards in the GE control system to ensure seamless operation.

This module is essential for maintaining the integrity and efficiency of turbine operations by ensuring that signals are properly managed and transmitted within the control system.
