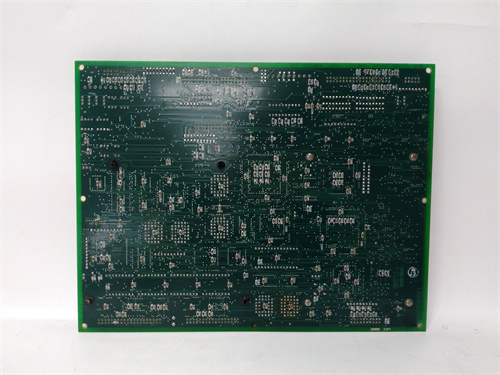

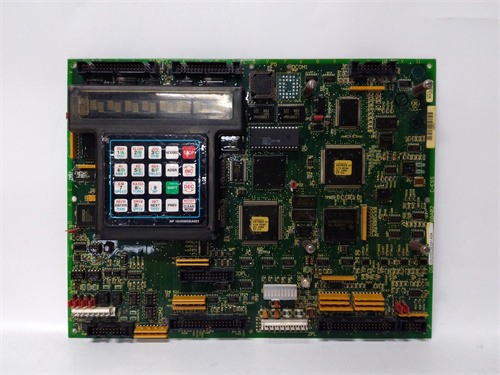

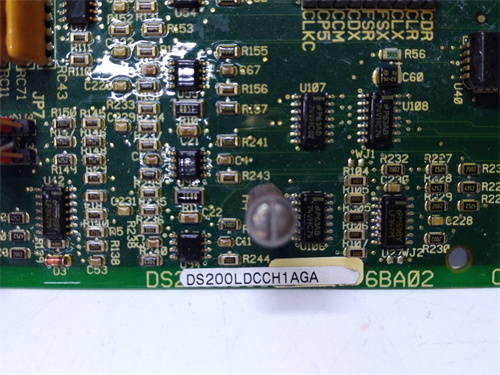

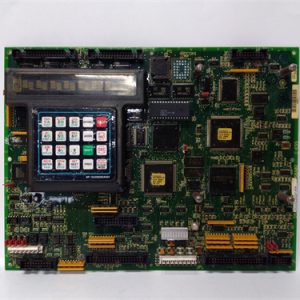

GE+DS200LDCCH1AGA

Description

The GE DS200LDCCH1AGA module is part of General Electric’s Mark V series of industrial control systems. The DS200LDCCH1AGA specifically functions as a DC Control and Protection Module for use in control systems such as gas and steam turbine controls, as well as other industrial automation applications where reliable power management and protection are essential.

Product Name:

GE DS200LDCCH1AGA

Product Description:

The DS200LDCCH1AGA module is a DC Control and Protection Module for use in the Mark V turbine control system. This module is designed for managing and protecting DC power systems, providing vital functions for controlling the DC power supply, maintaining system stability, and ensuring proper operational status of the turbine or other industrial processes.

Product Parameters and Specifications:

• Product Type: DC Control and Protection Module.
• Compatible Systems: GE Mark V turbine control system, used in power generation plants and industrial machinery.
• Input Power: Typically 24 VDC for operation.
• Control Signals: Handles digital and analog signals.
• Relay Outputs: Often integrated for triggering control functions or alarms.
• Circuit Protection: Provides protection against overvoltage and undervoltage conditions.
• Mounting: Designed for easy installation in rack-mounted or panel-mounted control cabinets.
• Environment: Works in industrial environments with temperature ranges typically between 0°C to 60°C (32°F to 140°F).
• Communication Interface: Interfaced with other modules in the system via a backplane bus or direct wiring to control signals.
• Weight: Approximately 2 to 3 kilograms (variable depending on configuration).

Product Use:

• Turbine Control: Used in turbine control systems for managing and protecting DC power circuits.
• Power Distribution: Helps in the management of DC power distribution and protection in power plants and industrial applications.
• Safety: Ensures protection of other system components from voltage spikes, and helps in detecting faults within the DC circuits, safeguarding equipment.
• Data Monitoring: Used to monitor and maintain safe operating conditions for turbine systems by controlling critical power parameters.
• Industrial Applications: Mainly used in industries that involve high-power electrical equipment like power generation plants, chemical plants, oil rigs, and other industrial automation systems.
