GE+DS200KLDBG1ABC

Description

The GE DS200KLDBG1ABC module is part of General Electric’s Mark V series, used for control and protection in industrial gas turbines and other complex machinery systems

Product Name:

• GE DS200KLDBG1ABC

Product Description:

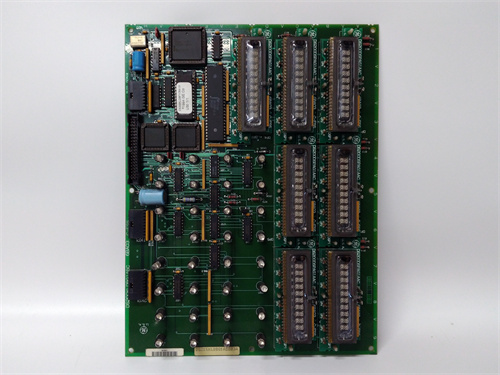

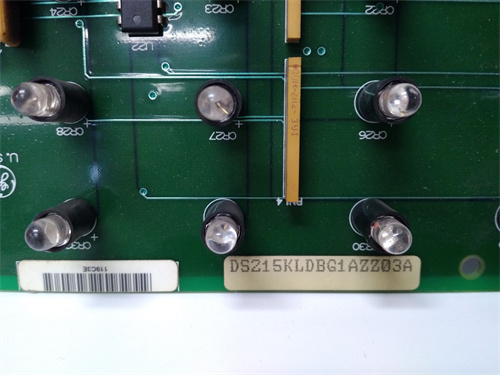

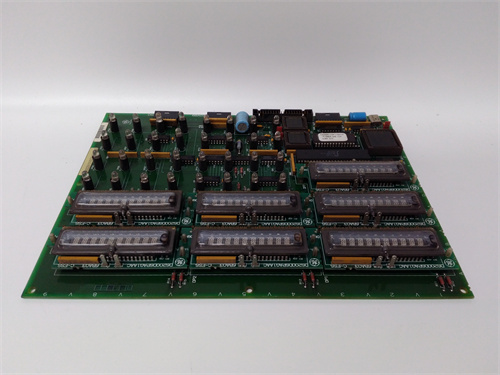

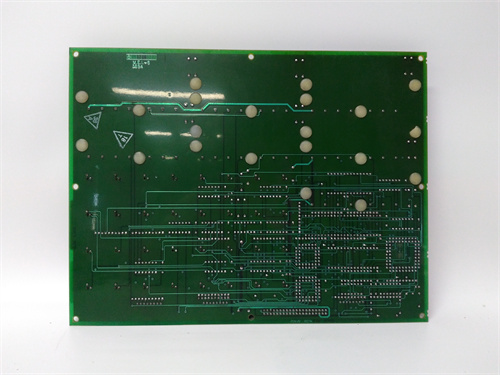

The DS200KLDBG1ABC module is a keypad and LED display interface board designed for use in the GE Mark V gas turbine control system. It is typically used in power generation and other heavy industrial applications. The module provides the human-machine interface (HMI) for operators to interact with the turbine control system, monitor operational status, and configure parameters. It helps in troubleshooting and diagnostics by displaying vital operational information.

Product Parameters & Specifications:

• Model Type: Keypad Display Module
• System Compatibility: GE Mark V control systems (used in industrial turbines)
• Interface: LED display, Keypad
• Function: Interface for local control, diagnostics, and monitoring
• Voltage: Typically operates on 24V DC power supplied from the turbine’s control system.
• Mounting Type: Installed within a rack or panel as part of the control system’s input/output (I/O) module set.
• Communication: Interfaces with the Mark V control system via the system’s communication bus.

Product Use:

• Control Interface: Used for turbine and plant control, allowing operators to start, stop, and monitor turbine performance.
• Diagnostics and Monitoring: Displays operational parameters and alerts, such as fault codes, operational status, and system health, for troubleshooting and maintenance.
• System Configuration: Provides input for configuring control parameters related to turbine operation.
