GE+469-P1-HI-A20-E

Description

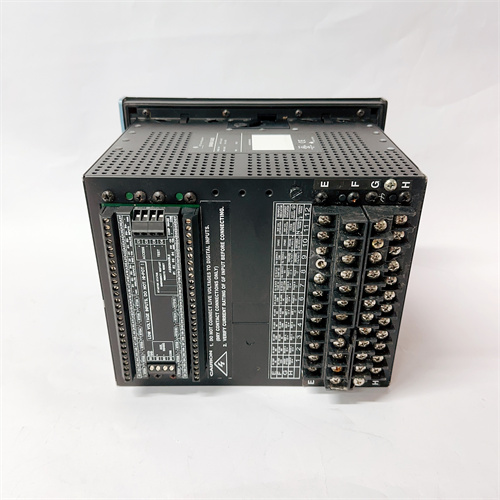

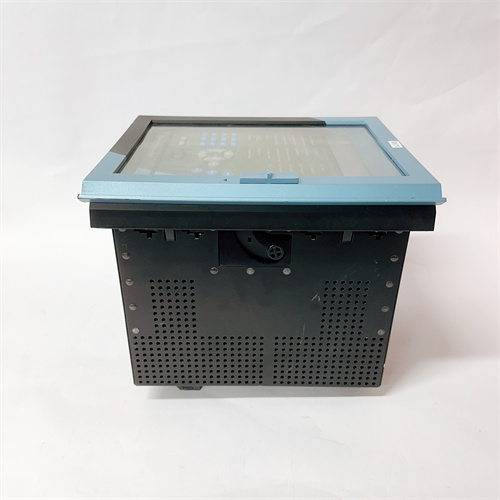

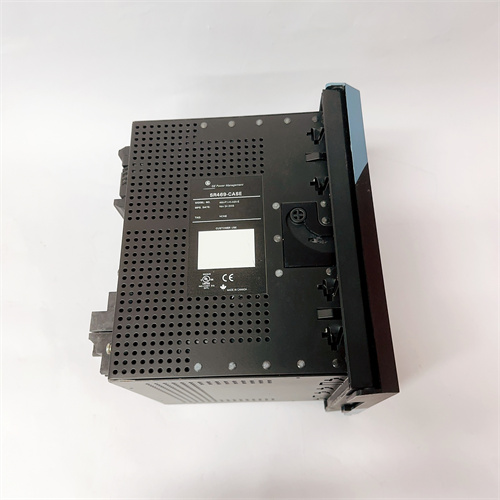

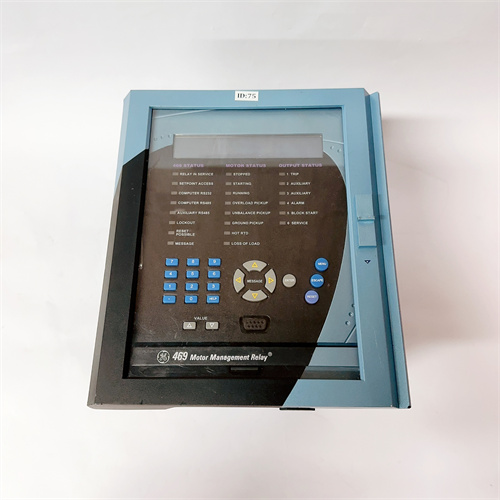

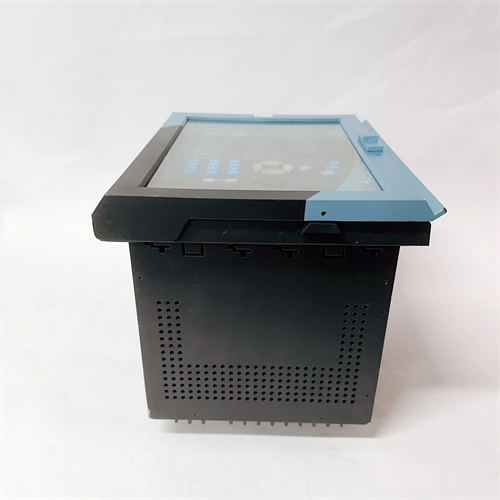

The GE 469-P1-HI-A20-E is a specific model number for a GE Multilin controller.

**Product Name:**

GE 469-P1-HI-A20-E Controller

**Product Description:**

The GE 469-P1-HI-A20-E is a digital protection relay and controller designed for industrial and utility applications. It is used primarily for protection, monitoring, and control of electrical systems to ensure reliable operation and prevent damage during faults and abnormal conditions.

**Product Parameters and Specifications:**

1. **Protection Functions:** Provides various protection functions such as overcurrent protection, differential protection, distance protection, and others depending on configuration.
2. **Monitoring and Control:** Monitors electrical parameters such as voltage, current, power, and frequency. Can also control breaker operations and other switching devices.
3. **Communication Interfaces:** Typically equipped with multiple communication interfaces such as RS485, Ethernet, Modbus, DNP3, IEC 61850, etc., for remote monitoring and control.
4. **Display:** Includes a graphical display for local monitoring and configuration.
5. **Input/Output:** Analog and digital input/output options for interfacing with sensors, actuators, and other devices.
6. **Power Supply:** Supports a wide range of AC/DC power supply options.

**Product Use:**

The GE 469-P1-HI-A20-E controller is used in various industrial and utility applications where protection and control of electrical systems are critical. Typical applications include:

– Substation automation
– Power generation plants (e.g., thermal, hydro, wind)
– Industrial facilities (e.g., manufacturing plants, mining operations)
– Renewable energy installations (e.g., solar farms, wind farms)

Its primary functions include:

– **Protection:** Detects and responds to electrical faults to protect equipment and personnel.
– **Monitoring:** Continuously monitors electrical parameters to ensure optimal performance and reliability.
– **Control:** Provides control signals to breakers and switches based on system conditions and operator commands.

Overall, the GE 469-P1-HI-A20-E enhances the reliability and efficiency of electrical systems by integrating advanced protection and control features with robust communication capabilities.
