FOXBORO+FCP270 P0917YZ

Description

Product Name:

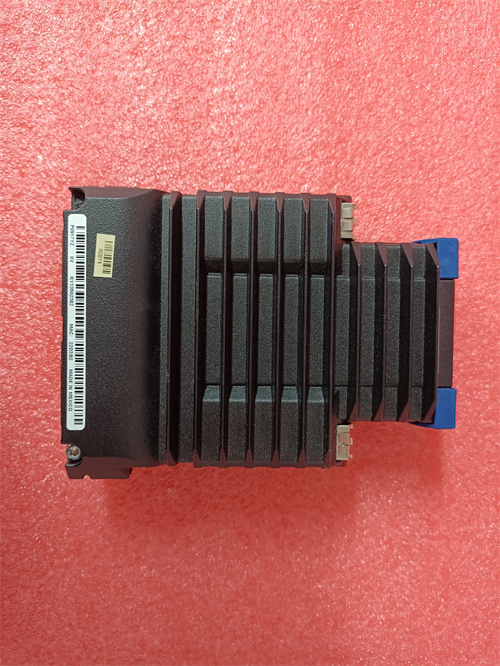

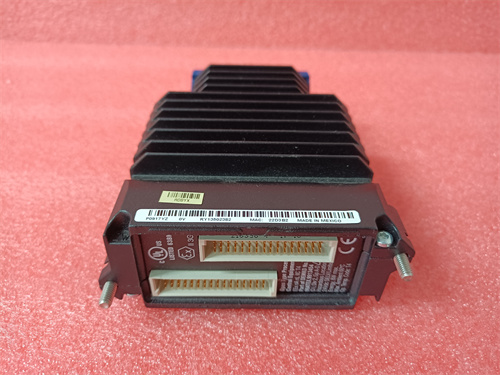

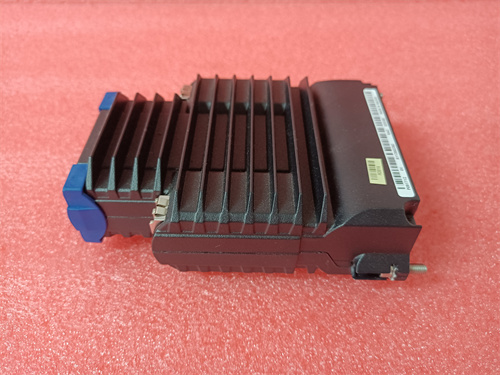

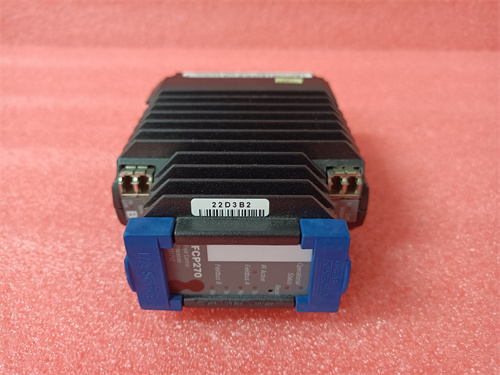

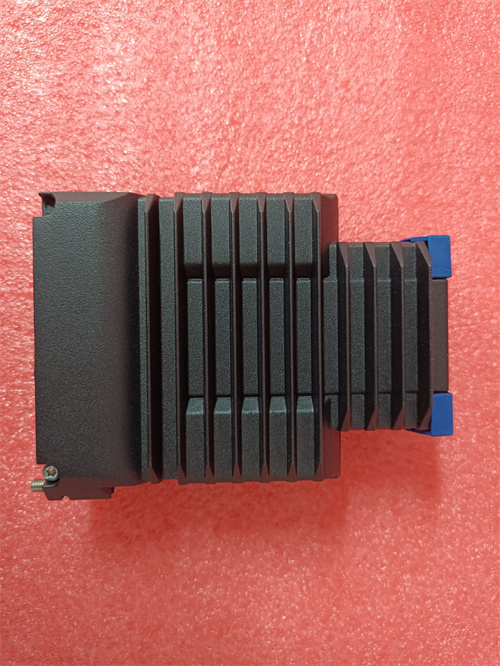

FOXBORO Field Control Processor 270 (FCP270)

The FCP270 P0917YZ is a distributed field installation controller for industrial process control applications. It enforces user-defined control policies to manage various process functions.

Specifications:

Execution:
Regulating control (maintaining process variables at desired set values)
Logic control (decisions based on program conditions)
Timing control (timer based sorting operation)
Sequence control (performing a series of steps in a specific order)
Data acquisition: Data is collected from connected field devices (sensors, transmitters, etc.)
Alarm detection and notification: Monitors process variables and triggers alarms when predefined conditions are met.
Fieldbus connectivity: Up to 32 fieldbus modules (fbm) are supported to connect various field devices.
Scalability: With the fieldbus Expansion Module 100 (FEM100), it can be extended to support up to 128 FBMS.
Size :5 cm x 14.5 cm x 11.5 cm
Weight: 0.74kg
