Description

Product Name:

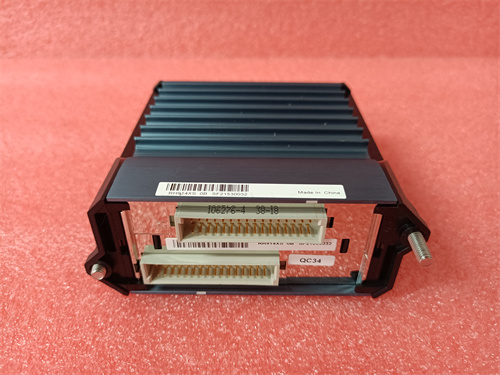

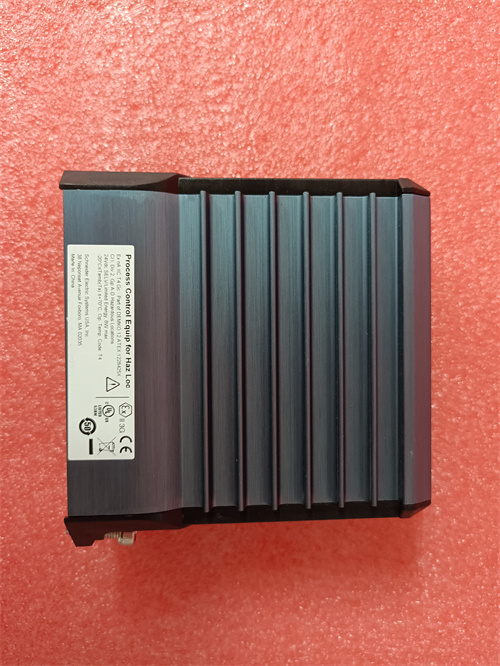

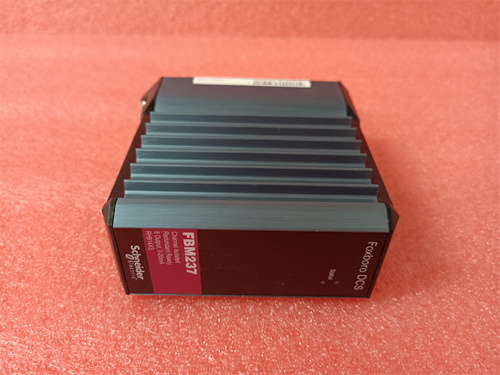

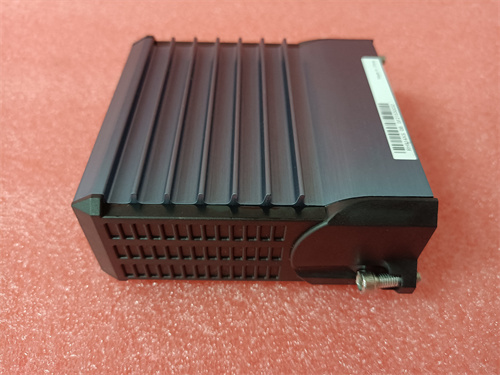

FOXBORO FBM237
I/A Series Analog Input/Output Module

Product Description:

The FOXBORO FBM237 is part of the Foxboro I/A Series Distributed Control System (DCS) and is specifically designed for use in industrial automation, process control, and measurement systems. It is typically used to interface with field devices, providing analog inputs and outputs for monitoring and controlling various process variables such as temperature, pressure, flow, and level. This module integrates with Foxboro’s I/A Series control system to provide a scalable, reliable solution for complex automation tasks.

Product Parameters and Specifications:

• Type: Analog Input/Output (AIO) Module
• Compatibility: Designed for use with the Foxboro I/A Series Distributed Control System.
• Signal Inputs/Outputs:
  • Analog Inputs: Typically, 4 to 16 channels.
  • Signal Types: 4-20 mA, 0-10 V, and other standard analog signal types.
  • Analog Outputs: 4-20 mA or 0-10 V, depending on the configuration.
• Input/Output Channels:
  • FBM237 may feature multiple channels for either input or output depending on configuration (common configurations range from 8 to 16 channels per module).
  • Common Input Range: 0–20 mA, 4–20 mA, or 0–10 V.
  • Common Output Range: 4–20 mA or 0–10 V (for controlling actuators or other equipment).
• Accuracy:
  • Typically within 0.1% of full scale for input/output signals.
  • High precision and stability suitable for critical industrial applications.
• Power Requirements:
  • Requires an external power supply, typically DC voltage (e.g., 24 V DC).
• Operating Temperature:
  • Typically -40°C to +70°C, depending on environmental conditions.
• Mounting:
  • Typically DIN rail or rack-mounted within a control panel.
• Communication Protocols:
  • Foxboro communication protocols (such as the FoxCom protocol) for integration with the Foxboro DCS or other Schneider Electric systems.
• Redundancy/Fail-Safe:
  • The module supports system redundancy features to ensure reliable performance in critical systems.

Product Use:

• Industrial Process Control: The FBM237 module is used in industries like oil & gas, chemical processing, power generation, and water treatment, where analog signals from field instruments (such as sensors and transmitters) are processed for monitoring and control purposes.
• Signal Conditioning: It provides the necessary interface to collect analog data from sensors and transmitters (like pressure transmitters, temperature sensors, flow meters, etc.) and send control signals to actuators or valves.
• Distributed Control Systems (DCS): The module interfaces with the I/A Series system to support advanced control algorithms and data acquisition.
• Alarm and Monitoring: The analog inputs can be used to monitor critical parameters, triggering alarms and alerts if the process parameters go beyond acceptable limits.
• Flexibility and Scalability: The FBM237 module supports various field devices and configurations, making it a versatile solution in process automation.
