FOXBORO+FBM215

Description

Product Name:

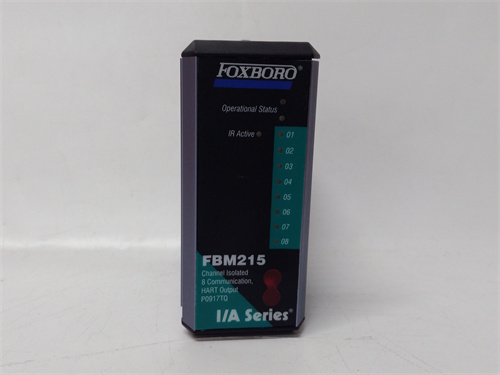

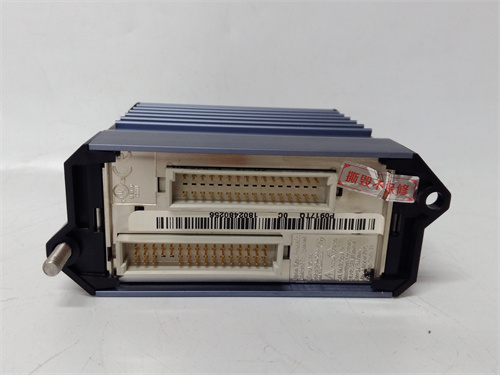

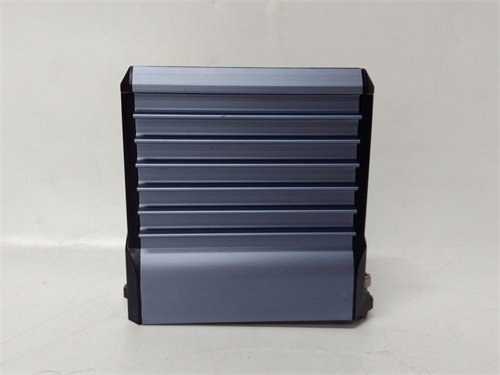

FOXBORO+FBM215 – Fieldbus Interface Module

Product Description:

The FOXBORO+FBM215 is a fieldbus interface module designed for the Foxboro I/A Series Distributed Control Systems (DCS). It provides a communication link between the process field devices and the central control system, supporting the Foundation Fieldbus protocol. This module integrates field devices such as sensors, transmitters, and actuators into the process control system, enabling reliable data exchange and control.

Product Parameters:

• Protocol Supported: Foundation Fieldbus (FF)
• Communication: Allows bi-directional communication between field devices and the control system over the Foundation Fieldbus protocol.
• Inputs/Outputs: Typically supports multiple I/O points for connecting field devices.
• Data Conversion: Handles data conversion between the fieldbus devices and the control system.
• Power Supply: Typically powered via the fieldbus or an auxiliary supply.
• Mounting Type: DIN rail or panel mount.

Specifications:

• Fieldbus Protocol: Foundation Fieldbus H1
• Power Supply: 24V DC (from fieldbus or external power supply)
• Device Connections: Up to 16 devices per segment, depending on the power requirements of the devices.
• Environmental Conditions: Designed for use in harsh industrial environments.
  • Operating Temperature Range: -40°C to +70°C
  • Storage Temperature Range: -40°C to +85°C
  • Humidity: 5% to 95% non-condensing
• Dimensions: Typically, the module is compact, with a width of 6 to 7 cm and height of 13 to 15 cm (approximate).
• Communication Speed: 31.25 kbps (standard for Foundation Fieldbus).
• Mounting: Designed for mounting in a control panel or on a DIN rail for easy installation in process automation environments.

Product Use:

The FOXBORO+FBM215 module is used in industrial process control systems that require reliable and real-time data from field devices. Some typical applications include:

• Oil & Gas: Monitoring and control of drilling platforms, refineries, and pipelines.
• Chemical Processing: Integration of sensors and actuators in the manufacturing of chemicals, pharmaceuticals, and specialty chemicals.
• Power Generation: Used in power plants to monitor and control power generation processes.
• Water Treatment: For automation and control of water and wastewater treatment plants.

FOXBORO+FBM215
