FOXBORO P0916BX

Description

The FOXBORO P0916BX is a termination assembly, not a complete module, used with Foxboro (now Schneider Electric) I/A Series systems.

Product Name:

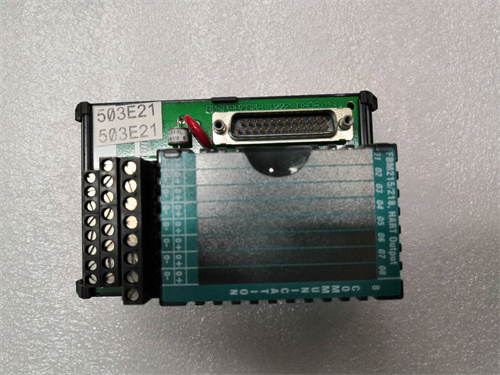

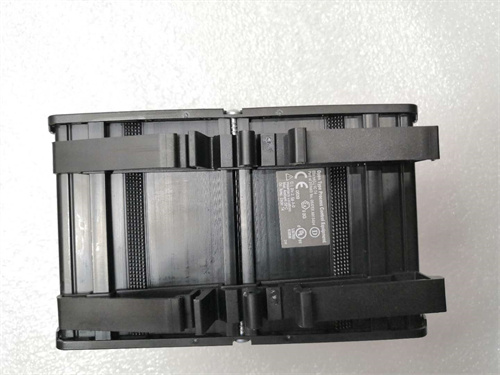

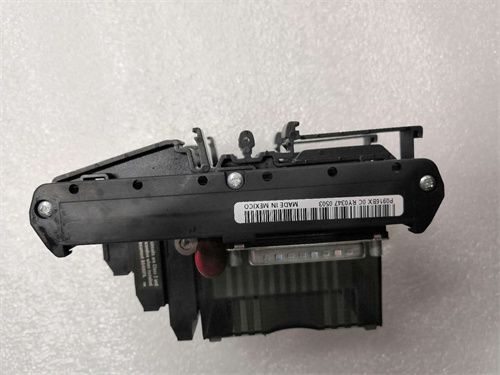

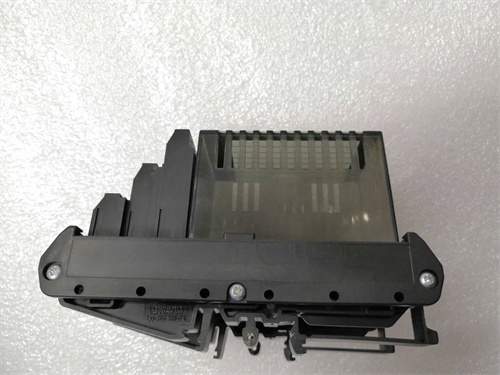

FOXBORO P0916BX Termination Assembly

Product Description:

The P0916BX is a pre-fabricated assembly designed to terminate specific Foxboro I/A Series modules.
It provides electrical connections between the module’s internal circuitry and external cabling.
Termination assemblies often include features like screw terminals for connecting wires and a housing for protection.

Product Parameters and Specifications:

Compatibility: Specific Foxboro I/A Series modules (requires further research to identify compatible modules)
Functionality: Electrical termination for connecting wires to a compatible I/A Series module

Product Use:

The FOXBORO P0916BX termination assembly plays a crucial role in connecting I/A Series modules to the system’s wiring. Here’s a possible scenario for its use:

An I/A Series input/output (I/O) module (e.g., FBM201) is installed in a terminal block.
The P0916BX termination assembly is attached to the I/O module, providing connection points for external cables.
Field cables from sensors or actuators are then wired to the appropriate terminals on the P0916BX, establishing the electrical connection between the module and the process it controls.
Important Note: Due to the limited information available publicly on the P0916BX, determining specific compatible modules and detailed features might be challenging.
