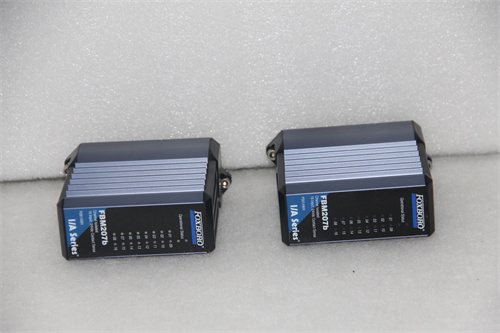

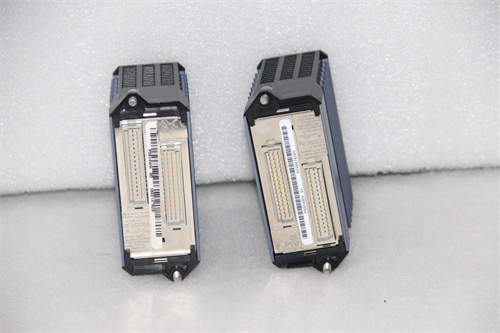

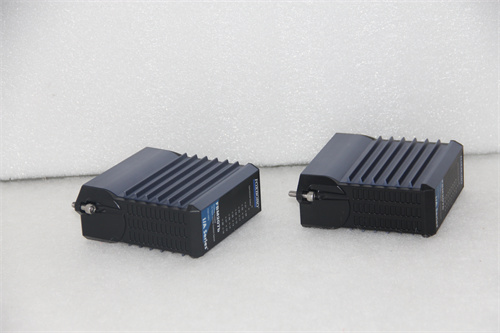

FOXBORO FBM207B

Description

The FOXBORO FBM207B module, manufactured by Schneider Electric (formerly Invensys Foxboro), is a versatile interface module offering two functionalities:

Product Name: FBM207B Voltage Monitor/Contact Sense Input Module

Product Description:

The FBM207B acts as a dual-function module, configurable for either voltage monitoring or contact sense input.
In voltage monitoring mode, it can handle 16 separate DC or AC voltage inputs across various ranges (typically 15-60 VDC, 120/125 VAC/VDC, 240 VAC).
For contact sense, it functions as a 16-channel contact sensor for monitoring dry contact closures or solid-state switch signals, commonly used with 24 VDC inputs.
Each channel boasts galvanic isolation, meaning electrical signals are isolated from each other and from ground to prevent interference.
The module is compact and built for harsh environments (Class G3 rating).

Product Parameters and Specifications:

Functionality: Selectable – Voltage Monitoring (DC/AC) or Contact Sense Input (16 Channels)
Voltage Monitoring Ranges (Specifics in datasheet):
DC Voltage: 15-60 VDC
AC Voltage: 120/125 VAC/VDC, 240 VAC (depending on model)
Contact Sense Input Rating: Typically 24 VDC (refer to datasheet for confirmation)
Isolation: Galvanic isolation between channels and ground
Enclosure Rating: Class G3 (harsh environments)

Product Use:

The FOXBORO FBM207B caters to a wide range of industrial applications requiring monitoring of various electrical signals:

Voltage Monitoring:

Monitoring power supply voltages in industrial control systems.
Tracking voltage levels in equipment for preventive maintenance.
Monitoring battery voltages in backup power systems.

Contact Sense Input:

Monitoring status of limit switches, pressure switches, or other contact closure sensors.
Detecting on/off states of pumps, motors, valves, and other equipment.
Monitoring safety interlock systems.
