EMERSON+MVME5500

Description

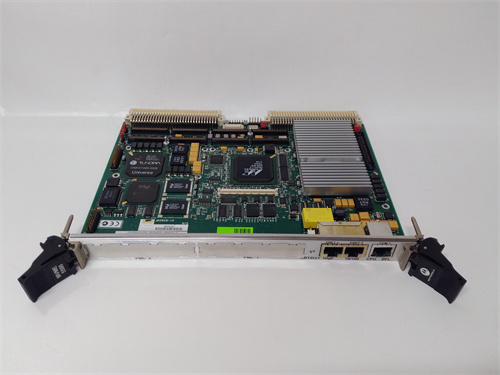

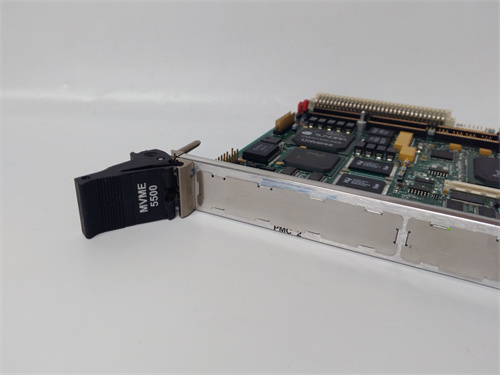

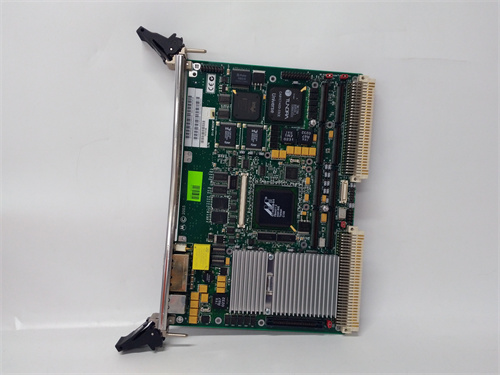

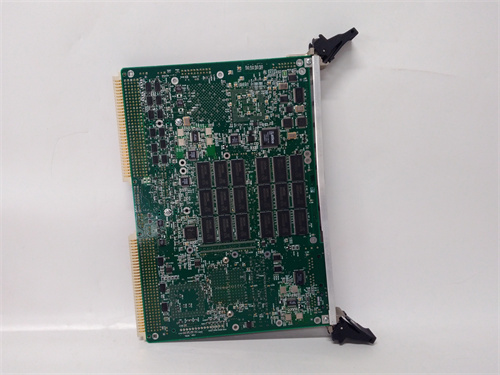

The EMERSON MVME5500 is a high-performance, rugged, and reliable single-board computer module.

Product Name:

EMERSON MVME5500

Product Description:

The EMERSON MVME5500 is a versatile and powerful single-board computer designed for demanding applications in harsh environments. It leverages the Motorola PowerPC architecture to deliver high-performance computing capabilities with robust support for real-time and embedded systems.

Product Parameters and Specifications:

Processor:
PowerPC 7448 Processor
Clock Speed: Up to 1.0 GHz
Cache: 32 KB L1 Instruction Cache, 32 KB L1 Data Cache, 512 KB L2 Cache
Memory:
Standard: 256 MB DDR SDRAM (expandable to 1 GB)
Flash: 128 MB NOR Flash (expandable options available)
Bus Interfaces:
VMEbus (64-bit)
PMC/XMC Slots
PCI-X Interface
Connectivity:
10/100/1000 Base-T Ethernet Ports
Serial Ports: 2 x RS-232
USB Ports: 2 x USB 2.0
Graphics:
Integrated graphics controller
Operating System Support:
VxWorks
Linux

Other real-time operating systems available upon request

Environmental Specifications:
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +105°C
Humidity: Up to 95% non-condensing
Physical Characteristics:
Form Factor: 6U VME
Dimensions: 233 mm x 160 mm (6U x 160 mm)
Weight: Approximately 1.5 kg
Power Requirements:
Voltage: +5V ±5%, +12V ±5%
Power Consumption: Typically 20W

Product Use:

The MVME5500 is designed for use in applications where high reliability and performance are crucial. Typical uses include:
Industrial Control Systems: Used in manufacturing and automation systems where robust performance and durability are required.
Defense and Aerospace: Ideal for military and aerospace applications due to its rugged design and ability to operate in extreme conditions.
Telecommunications: Employed in network equipment and communication infrastructure.
Transportation Systems: Used in railway and aviation systems for critical control and monitoring tasks.
Medical Devices: Suitable for complex medical instrumentation and diagnostic equipment.

The MVME5500 is known for its flexibility and ability to integrate with various peripherals and expansion modules, making it a reliable choice for a wide range of embedded and real-time computing applications.
