ELAU+C600-10-1-1-1-00

Description

The ELAU C600-10-1-1-1-00 controller is a specialized product used in automation systems, typically for controlling and optimizing industrial machinery and processes. The C600 controller is part of the ELAU series, which is now integrated into the Beckhoff Automation systems following the acquisition of ELAU by Beckhoff.

Product Name:

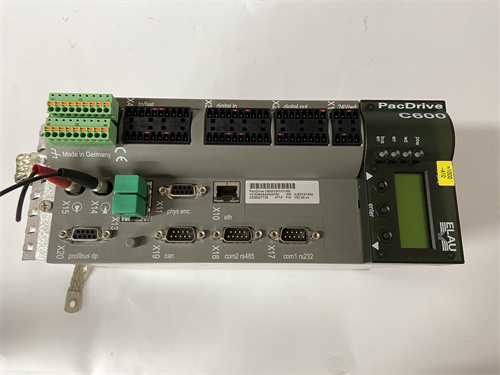

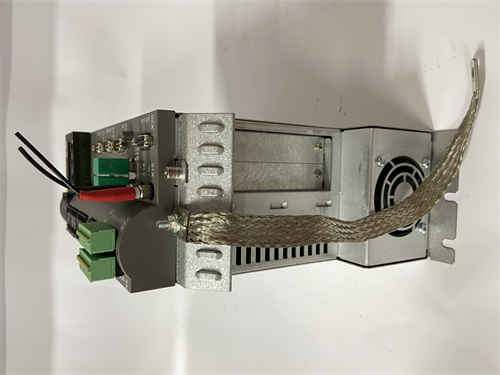

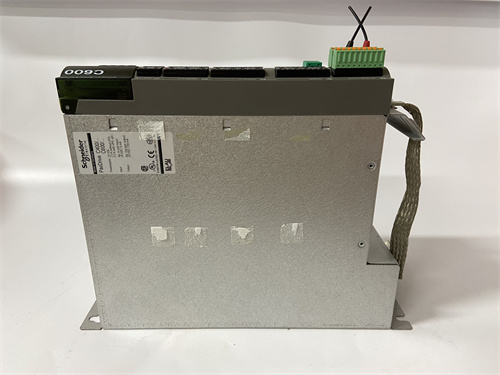

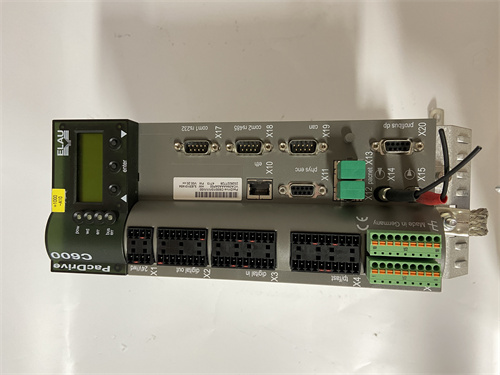

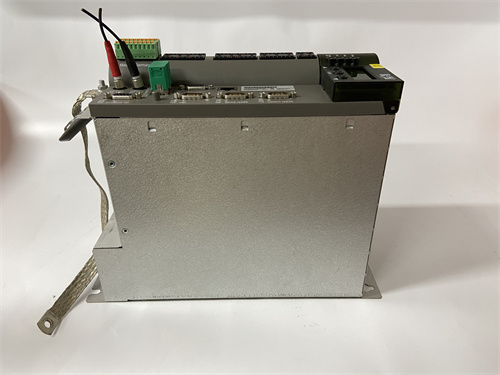

ELAU C600-10-1-1-1-00 Controller

Product Description:

The ELAU C600-10-1-1-1-00 is a highly advanced motion control system, often used in complex automation applications. It is designed for high-performance control of industrial machinery, offering precision, flexibility, and robust integration with other automation devices and systems. As part of the ELAU C600 series, this controller supports multi-axis motion control and is used for tasks such as material handling, packaging, and other automation processes requiring precise control and synchronization.

Product Parameters and Specifications:

1. Controller Type:
   • Motion controller with integrated PLC (Programmable Logic Controller) functions.
   • Designed for multi-axis control (usually up to 10 axes).
2. Communication Interfaces:
   • EtherCAT (typically) for high-speed communication with other automation devices, including drives, sensors, and I/O devices.
   • Other network options might include Modbus, CANopen, and other standard industrial communication protocols.
3. Processor:
   • High-performance processor optimized for real-time control of industrial motion.
   • Supports complex motion algorithms and real-time data processing.
4. Input/Output:
   • Multiple digital and analog I/O ports for connecting sensors, actuators, and other field devices.
   • Supports a range of I/O modules for flexible system expansion.
5. Motion Control:
   • Can control multiple axes (usually up to 10) with high precision.
   • Support for position, velocity, and torque control modes.
   • Advanced algorithms for trajectory planning, interpolation, and synchronization of axes.
6. Operating System:
   • Typically runs on a real-time operating system (RTOS) for deterministic performance.
   • Integrated with Beckhoff TwinCAT or similar software for programming and configuration.
7. Power Supply:
   • Typically requires 24V DC power input, with a separate power supply for the drives.
8. Environmental Operating Conditions:
   • Temperature range: Typically -10°C to 60°C (depending on the exact model).
   • Protection class: IP20 or higher, depending on enclosure.
9. Dimensions and Mounting:
   • Compact form factor designed for DIN rail mounting or installation in control cabinets.
   • Standard size for industrial applications.
10. Software:
    • Integrated with TwinCAT (Beckhoff’s motion control software) or equivalent programming environment.
    • Compatible with various industrial automation software platforms for easy integration.

Product Use:

The ELAU C600-10-1-1-1-00 controller is primarily used in industrial automation environments where precise motion control is required. Common use cases include:

1. Motion Control Systems:
   • Precise control of multiple motors and actuators in applications like robotics, packaging machines, conveyors, and CNC machines.
2. Packaging Industry:
   • Used to control synchronized motions for packaging lines, labeling systems, and automated filling machines.
3. Material Handling:
   • Implementing automated systems for transporting goods, assembly, and sorting in warehouse and manufacturing settings.
4. Automated Manufacturing Systems:
   • Integrating into production lines for tasks such as assembly, testing, and inspection of products.
5. Custom Automation Solutions:
   • Tailored solutions for industries like automotive, food and beverage, pharmaceuticals, and electronics manufacturing, where specific motion control requirements exist.
