Description

The EATON XV-440-10TVB-1-20 is a model from Eaton’s XV-400 series of touch screen human-machine interfaces (HMIs). These devices are used in industrial automation applications, offering a user-friendly interface for controlling and monitoring machines or processes.

Product Name:

EATON XV-440-10TVB-1-20 Touch Screen

Product Description:

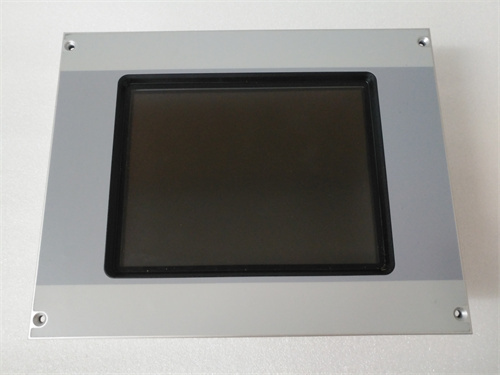

The EATON XV-440-10TVB-1-20 is a touchscreen HMI that provides an intuitive, high-quality interface for controlling industrial machinery, systems, and processes. It features a 10-inch display, and its touchscreen capabilities allow for easy interaction and operation. The device is designed for a wide range of automation applications, offering reliable performance in demanding industrial environments.

Product Parameters:

• Display Size: 10.4-inch TFT LCD
• Resolution: 800 x 600 pixels
• Touchscreen Type: Resistive touchscreen
• Operating System: Windows CE or other embedded systems (depending on model configuration)
• CPU: ARM-based processor (depends on specific configuration)
• Memory: RAM and flash storage (depends on model and configuration)
• Backlight: LED backlight

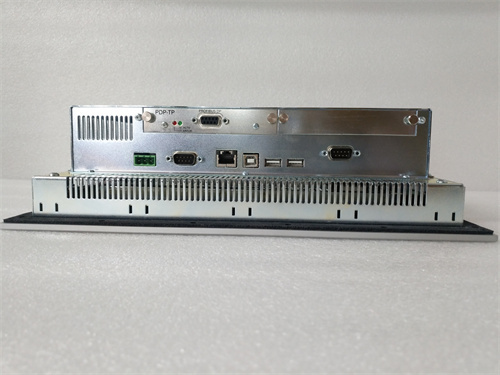

• Interface: Ethernet, USB, serial ports (RS232, RS485)
• Power Supply: 24V DC
• Mounting: Panel-mounted (flush or tilt)
• Protection Rating: IP65 front panel (waterproof and dustproof)
• Operating Temperature Range: Typically from -10°C to +50°C
• Touch Screen: 5-wire resistive touchscreen with multi-touch capabilities
• Built-in Communication Protocols: Modbus, CANopen, and other industrial communication protocols.

Product Specifications:

• Display Type: TFT (Thin Film Transistor)
• Brightness: Approximately 350 cd/m² (depending on specific model)
• Color Depth: 16.7 million colors
• CPU Speed: Varies by configuration, typically in the range of 500 MHz to 1 GHz
• Memory: Flash storage from 128 MB to 512 MB
• Ethernet Ports: 1 or more depending on configuration
• RS232/RS485 Ports: 2 serial ports for communication
• USB Ports: 1 or more USB ports for data transfer or peripheral connection
• Audio: Optional internal speakers (depending on configuration)

Product Use:

The EATON XV-440-10TVB-1-20 touch screen is primarily used in industrial automation systems, where operators need an efficient way to interface with machines and equipment. It is ideal for:

• Machine control: Operators can control machines or processes in real-time, adjusting parameters as needed.
• Data monitoring: The touch screen allows users to display real-time data and trends from industrial systems, offering insights into system performance.
• Visualization: Users can create dynamic graphical interfaces that display information in an easily understandable format.
• Remote control: Can be integrated into a network to allow remote monitoring and control via Ethernet.
• Industrial environments: With its rugged construction and high IP rating, the XV-440 is suited for use in harsh environments, including factories, warehouses, and production lines.

Advantages:

• Ease of Use: With its user-friendly interface and intuitive touchscreen, operators can quickly navigate the system.
• Customization: The XV-440 series supports custom screen layouts and display configurations to suit specific application needs.
• Reliability: Designed to function in demanding industrial environments with durability and long lifespan.
• Communication Options: Wide range of supported protocols enables easy integration into existing automation systems.
