Description

The EATON XV-440-10TVB-1-20 is part of the Eaton XV Series of touchscreen human-machine interfaces (HMIs), designed for industrial automation, control, and monitoring systems.

Product Name:

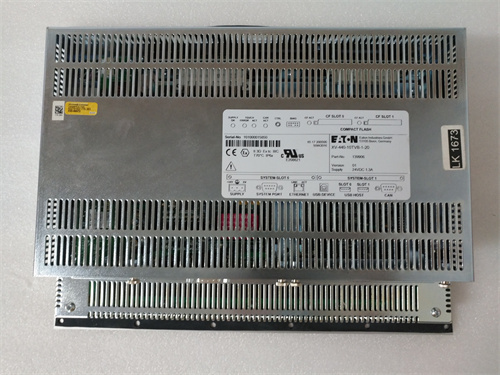

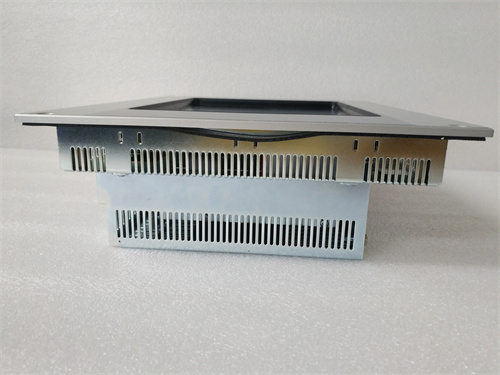

EATON XV-440-10TVB-1-20 Touchscreen HMI

Product Description:

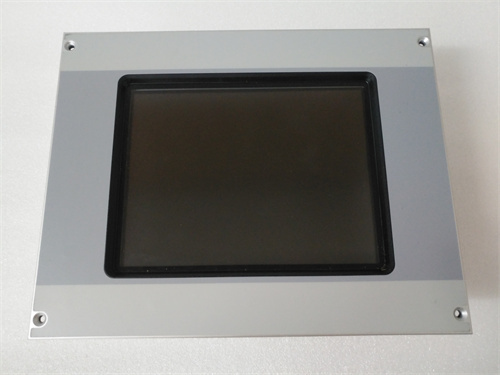

The Eaton XV-440-10TVB-1-20 is a high-performance touchscreen HMI (Human-Machine Interface) designed for industrial applications. It features a 10.4-inch color touchscreen display with a TFT LCD screen, offering an intuitive interface for operators to monitor and control various industrial processes. This HMI is part of Eaton’s XV Series, which combines ease of use, flexibility, and powerful functionality in one device.

Product Parameters:

• Display Type: TFT LCD
• Display Size: 10.4 inches
• Resolution: 800 x 600 pixels (SVGA)
• Touchscreen Technology: Resistive or Capacitive touch (depending on model variant)
• Brightness: 400 cd/m²
• Color Depth: 256 colors (8-bit)
• Input Voltage: 24 VDC
• Power Consumption: Typically 12W

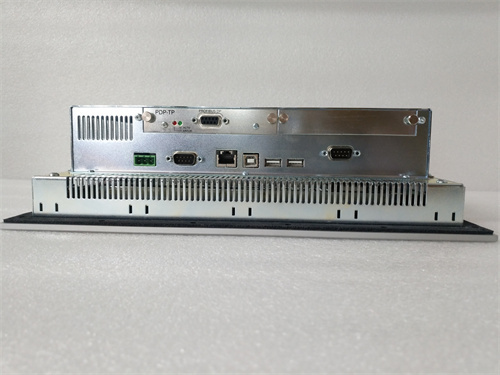

• Communication Interfaces:
  • Ethernet (optional)
  • RS-232/RS-485
  • USB Host and USB Device
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature Range: -20°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)
• Protection: IP65 (front panel)
• Mounting: Panel mount
• Memory:
  • Flash Memory: 128 MB
  • RAM: 64 MB
• Processor: ARM-based processor
• Software Compatibility: Supports Eaton’s XC or XSoft-Codesys for programming.

Specifications:

1. Touchscreen Type: 10.4-inch TFT LCD with resistive or capacitive touch input.
2. Interfaces:
   • RS-232/RS-485 for serial communication with PLCs and other devices.
   • Ethernet for integration into networked systems and remote control.
   • USB ports for data transfer or peripheral connections.
3. Resolution: 800 x 600 pixels with a high contrast ratio for clear and detailed graphical displays.
4. Environmental Conditions:
   • Wide operating temperature range (0°C to 50°C).
   • IP65-rated front panel for protection against dust and water ingress.
5. Mounting Type: Suitable for panel mounting in industrial environments.
6. Software Integration: Supports Eaton’s XC (XpressControl) software suite, enabling configuration and monitoring of automation systems.

Product Use:

The Eaton XV-440-10TVB-1-20 touchscreen HMI is commonly used in industrial and manufacturing environments where operators need to interface with control systems. It allows users to monitor real-time data, input commands, and view graphical representations of processes.

Applications include:

• Industrial Automation: Monitor and control PLCs, sensors, and other devices.
• Machine Control: Use in manufacturing machines for visualizing machine data, alarms, and status updates.
• Building Automation: Integration in HVAC, lighting, and security systems to enable easy control and monitoring.
• Process Control: Control and monitor complex processes in industries like chemicals, food and beverage, water treatment, and more.
