EATON+XV-440-10TVB-1-20

Description

Product Name:

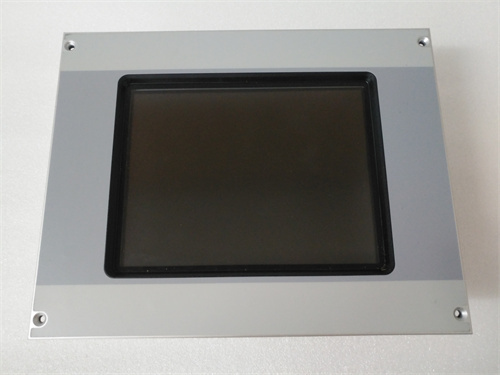

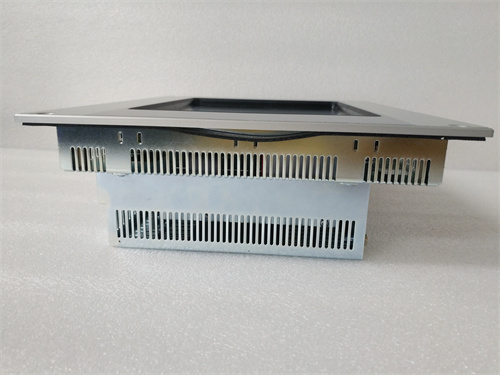

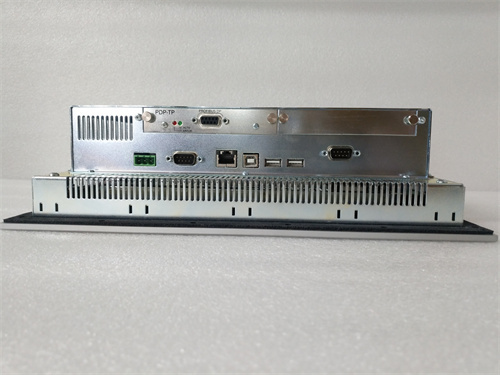

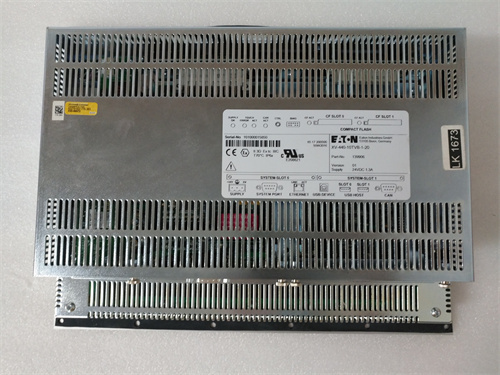

EATON XV-440-10TVB-1-20 Touch Screen Operator Panel

Product Description:

A high-performance touch screen operator panel designed for use with EATON XV100, XV300, and XV400 variable speed drives (VSDs).
It provides a user-friendly interface for monitoring, controlling, and programming the VSDs, visually displaying drive parameters and enabling intuitive interaction.

Key Product Parameters and Specifications:

Display:
Size: 10.4 inches (diagonal)
Type: Color TFT LCD
Resolution: 640 x 480 pixels
Touchscreen: Resistive
Communication:
Interface: RS-485
Protocol: Modbus RTU
Power Supply: 24 VDC
Dimensions:
Width: 254 mm (10 inches)
Height: 177 mm (7 inches)
Depth: 54 mm (2.1 inches)
Mounting: Panel-mount
Operating Temperature: 0°C to 55°C
Environmental Protection: IP65 (front panel)

Additional Features:

Customizable Display: Allows for user-defined screens and layouts to suit specific applications.
Multiple Languages: Supports multiple languages for global use.
Password Protection: Provides security for access and configuration.
Trending and Data Logging: Captures and stores drive data for analysis and troubleshooting.
