Description

Product Name

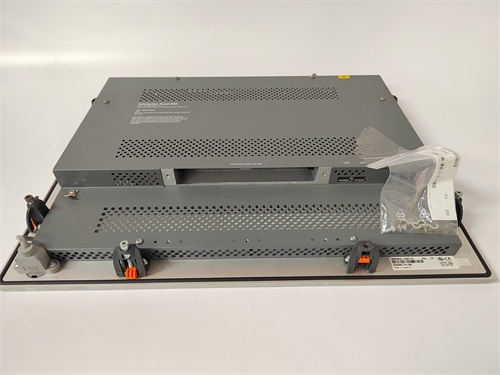

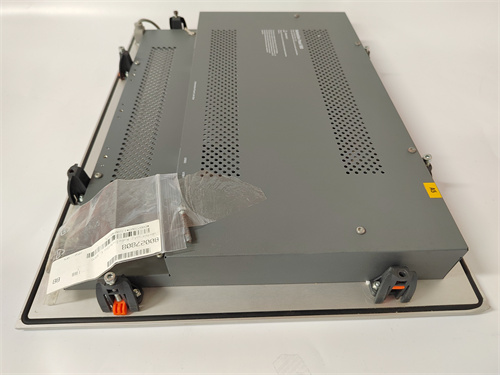

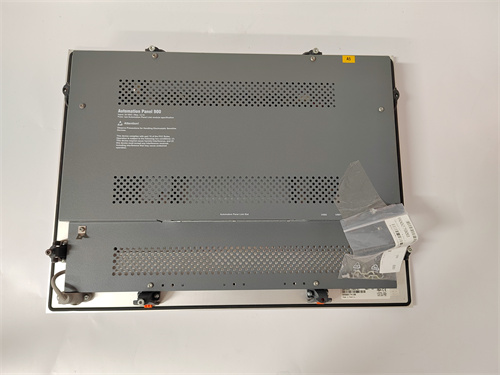

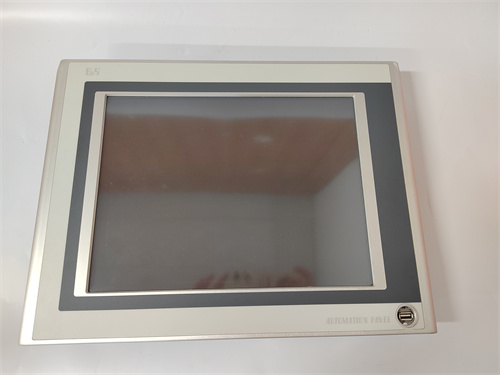

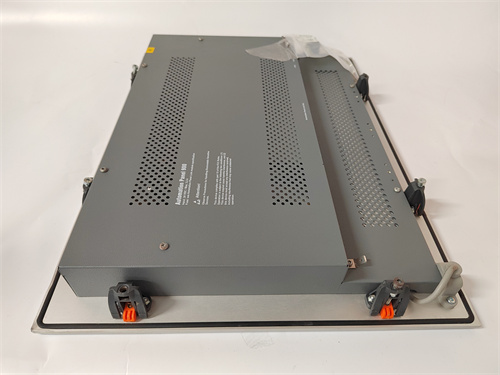

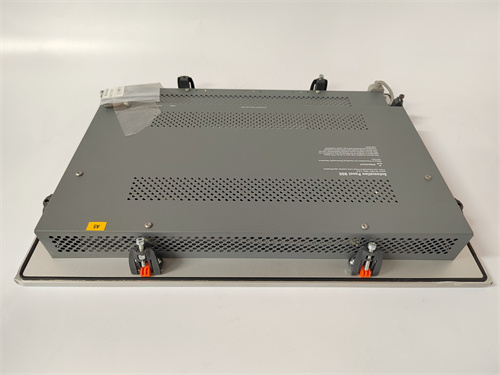

B&R Touch Screen – Model 5AP920.1505-01

Product Description

The B&R Touch Screen 5AP920.1505-01 is a high-performance, industrial-grade human-machine interface (HMI) designed for control and visualization applications in automation systems. This touch screen combines ease of use with rugged durability and high resolution, offering a user-friendly interface for operators and maintenance personnel to interact with machinery or automated processes. With its intuitive graphical interface and customizable design, it provides seamless integration into a variety of B&R control systems.

Product Parameters and Specifications

• Display Type: TFT LCD (Thin-Film Transistor Liquid Crystal Display)
• Screen Size: Typically ranges from 5.7 inches to larger sizes (specific to the model; confirm exact dimensions for 5AP920.1505-01).
• Resolution: High resolution for clear, sharp visuals (often 800×480, 1024×768, or higher, depending on the model).
• Touch Interface: Capacitive or resistive touch screen depending on the model.
• Processor: Industrial-grade processor for fast and responsive performance.
• Communication Ports: Ethernet, USB, serial (RS232/RS485), or other I/O ports for data exchange.
• Operating System: Likely runs on B&R’s proprietary software platform or embedded OS (e.g., Windows CE or Linux-based).
• Power Supply: 24V DC (commonly used in industrial settings).
• Brightness: 300 to 800 nits (depending on the model) for use in both indoor and outdoor environments.
• Operating Temperature: Typically -10°C to +50°C.
• Storage: Flash memory, SSD, or other solid-state storage options.
• Mounting Type: Panel mounting for integration into control panels.

Key Features

• Intuitive Touch Interface: Responsive touch controls that simplify operator interaction.
• High Durability: Resistant to vibrations, shock, and environmental conditions typically found in industrial settings.
• Customizable Graphics: Custom screen designs with advanced graphical user interfaces (GUIs).
• Multi-language Support: Enables operations in various languages for global operations.
• Long Lifecycle: Built for long-term use in harsh environments with minimal downtime.
• Compatibility: Integrates seamlessly with B&R’s industrial automation systems and controllers, as well as third-party systems in some cases.

Product Use

This touch screen is ideal for:

• Industrial Automation: Control and monitoring of industrial machines and processes.
• HMI Applications: Provides operators with a graphical user interface to monitor and control processes in factories, plants, or production lines.
• Control Systems: Integration with PLCs (Programmable Logic Controllers), CNC machines, and other automation controllers.
• Machine Visualization: Displays real-time data, alarms, and operational status from connected machinery.
• Embedded Systems: Used as part of embedded solutions for control and process management.
