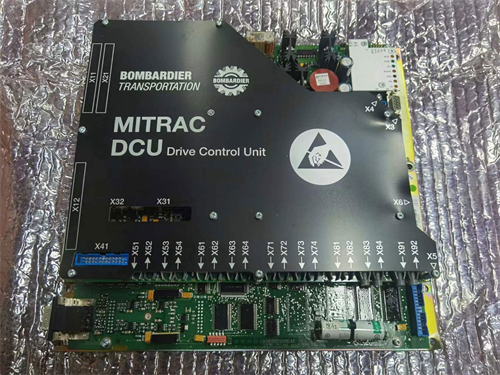

BOMBARDIER+DCC2223A 3EST125-977

Description

The BOMBARDIER DCC2223A 3EST125-977 Module is a product typically used in the railway and transportation industries, particularly in the context of digital train control systems for modern signaling and train management.

Product Name:

BOMBARDIER DCC2223A 3EST125-977 Module

Product Description:

The BOMBARDIER DCC2223A 3EST125-977 module is likely part of the Digital Control and Communication (DCC) system used in the context of signaling, train management, and automation. These types of modules are designed to facilitate communication between trains, control centers, and infrastructure, typically through digital signaling protocols.

Bombardier is known for providing advanced technology for rail transportation, and the DCC series represents high-precision, efficient solutions for controlling train operations, ensuring safety, and improving overall system efficiency.

Product Parameters & Specifications:

While exact specifications for the DCC2223A 3EST125-977 module are not readily available in public documents, typical modules of this class might have the following general specifications:

1. Operating Voltage:
   • Typically around 24V DC or 48V DC, depending on the system design.
2. Communication Protocol:
   • Digital Communication System (DCS) with compatibility for ETCS (European Train Control System) or CBTC (Communication-Based Train Control).
   • May support communication standards such as MVB (Multifunction Vehicle Bus), Ethernet, or other railway-specific data protocols.
3. Input/Output (I/O):
   • Multiple digital or analog inputs and outputs for interfacing with sensors, switches, and actuators on the train or along the track.
   • Isolated I/O channels for signal integrity and noise immunity.
4. Signal Handling:
   • Handles both signal processing and data acquisition for managing train positioning, speed, and control signals.
5. Environmental Parameters:
   • Typically designed to work in harsh environmental conditions, with a wide operating temperature range (e.g., -40°C to +70°C).
   • Vibration and shock resistance suited for railway applications.
6. Connectivity:
   • May feature multiple networking ports for connecting with train control and signaling systems.
   • Could include redundant communication channels to ensure continuous, fault-tolerant operations.
7. Safety Features:
   • Safety functions compliant with international standards, such as IEC 61508 or EN 50126, for functional safety in railway operations.
   • May integrate with onboard safety systems, such as train protection systems (TPS) or emergency braking mechanisms.
8. Redundancy:
   • Built-in redundancy for critical communication and control pathways to ensure high reliability, even in case of component failure.

Product Use:

The BOMBARDIER DCC2223A 3EST125-977 module is primarily used in:

• Train Control Systems (TCS) for managing train movements in real-time.
• Signal Transmission and Reception in digital communication-based train control systems.
• Monitoring and Diagnostics for detecting faults or irregularities within the train or the network.
• Signaling and Positioning in modern signaling systems such as ETCS or CBTC.
• Train Automation systems to enhance safety, speed regulation, and energy efficiency.

Applications:

1. Urban Rail Systems such as metros or light rail, where high-frequency communication and safety features are critical.
2. High-Speed Rail for advanced train control and signaling, ensuring efficient operation across long distances.
3. Freight Railways for managing complex networks and optimizing operations.
4. Rail Infrastructure where modules like the DCC2223A are deployed for real-time monitoring and automation.
