Description

Product Name

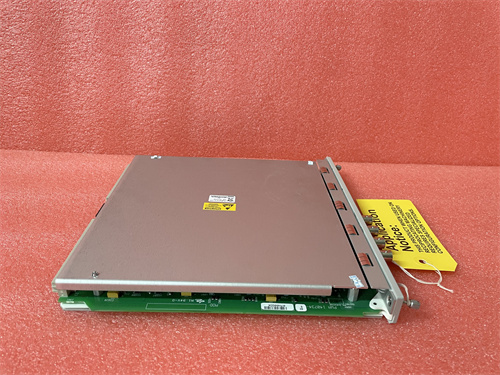

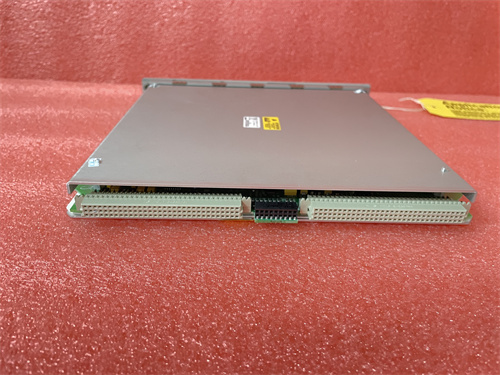

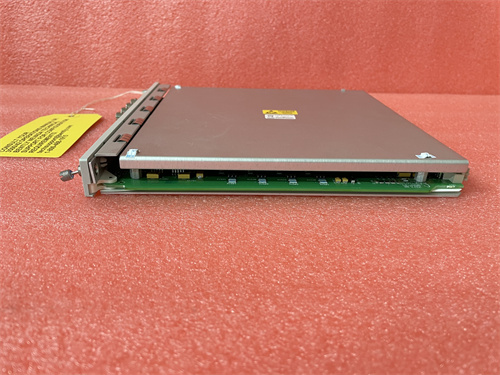

BENTLY 3500/42M & 3500/40M Modules

Product Description

The BENTLY 3500 series is a high-performance monitoring system designed for machinery protection and health monitoring. The 3500/42M module is a vibration monitor, while the 3500/40M module serves as a transducer interface, providing advanced diagnostics and condition monitoring for rotating machinery. These modules are integral components of the 3500 system, which is widely used in industries such as oil and gas, power generation, and manufacturing to ensure the reliability and efficiency of machinery.

Product Parameters

• Model Numbers: 3500/42M, 3500/40M
• Module Type:
  • 3500/42M: Vibration monitoring
  • 3500/40M: Transducer interface
• Power Supply: Typically operates on 19-32 VDC power.
• Operating Temperature: Designed for industrial environments, operating temp range typically -40°C to 70°C.
• Communication: Supports various communication protocols for integration with control systems.
• Mounting Type: DIN rail mountable or panel mount, depending on configuration.

Specifications

• Input Channels:
  • 3500/42M: Multiple input channels for vibration sensors
  • 3500/40M: Interfaces with various transducer types (e.g., accelerometers, proximity probes)
• Output Type: Can provide analog, digital, or relay outputs depending on system configuration.
• Signal Conditioning: Built-in signal conditioning for accurate and reliable data acquisition.
• Alarm Setpoints: Configurable alarm thresholds for early detection of issues.
• Data Logging: Option for historical data logging for performance analysis.

Product Use

The BENTLY 3500/42M and 3500/40M modules are utilized in various applications, including:

• Vibration Monitoring: To assess the condition of rotating equipment like motors, pumps, and turbines. The vibration readings can identify imbalance, misalignment, and bearing failures.
• Machinery Health Monitoring: Continuous monitoring of equipment to prevent unscheduled downtimes through proactive maintenance.
• Performance Optimization: Analyzing data trends to optimize the operational parameters of machinery for improved efficiency.
• Safety and Compliance: Ensuring machinery operates within safe limits and complies with industry standards and regulations.
