BENTLY+3500/33-01-00 3500/34 3500/32

Description

The Bently Nevada 3500 series is a suite of condition monitoring and diagnostic equipment designed for monitoring rotating machinery.

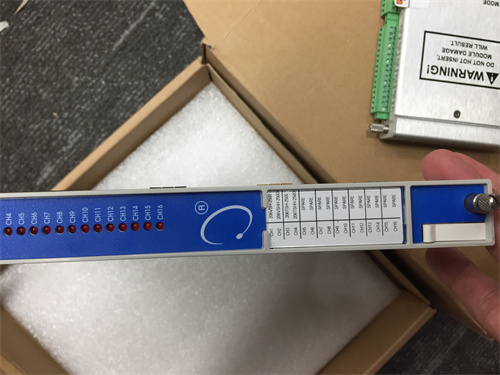

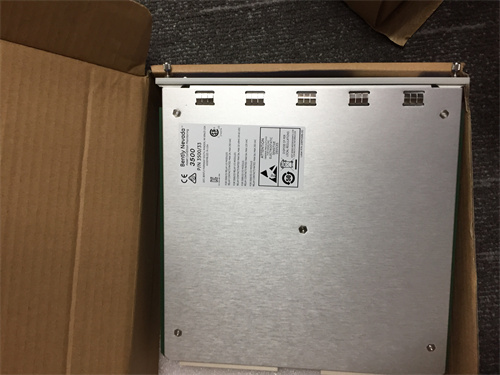

Bently Nevada 3500/33-01-00

Product Name: 3500/33 – Position Measurement Module

Product Description: The 3500/33 module is primarily used for providing non-contact axial and radial position measurements on rotating machinery. It typically employs proximity probe technology to measure the position of the rotor relative to the stationary casing.

Product Parameters and Specifications:

• Measurement Type: Proximity probe-based measurement
• Input Channels: Supports multiple channels, usually up to 4 per module
• Measurement Range: Varies by probe type; typically ±0.25 inches
• Output: Provides continuous position data to the system
• Compatibility: Works with standard Bently Nevada 3500 monitor system
• Environmental Rating: Suitable for harsh industrial conditions

Product Use: Used in applications where monitoring the position of rotating shafts is critical, including in turbomachinery in power generation, petrochemical, and other heavy industries.

Bently Nevada 3500/34

Product Name: 3500/34 – Tachometer Module

Product Description: The 3500/34 module is designed to measure rotational speed and provide feedback on shaft rotation to ensure optimal machinery performance. It typically interfaces with proximity probes or other types of sensors.

Product Parameters and Specifications:

• Measurement Type: Speed measurement from proximity sensors or other input devices
• Input Channels: Up to 4 channels for monitoring multiple machines
• Output: Speed measurements in RPM with time-stamped data
• Frequency Range: Typically from 0 to several thousand RPM depending on setup
• Compatibility: Compatible with the 3500 series systems for integrated monitoring
• Environmental Rating: Industrial-grade for challenging conditions

Product Use: Ideal for applications where monitoring shaft speed is essential, including turbines, compressors, and other rotating equipment to prevent mechanical failure.

Bently Nevada 3500/32

Product Name: 3500/32 – Accelerometer Module

Product Description: The 3500/32 module facilitates vibration monitoring by receiving signals from accelerometers placed on machinery. It provides critical data related to machine health and performance.

Product Parameters and Specifications:

• Measurement Type: Vibration analysis through accelerometer signals
• Input Channels: Supports multiple channels to monitor several points on one machine
• Frequency Response: Typically covers a broad frequency range suitable for various types of vibration analysis
• Output: Provides analog and digital outputs for real-time monitoring and logging
• Compatibility: Part of the 3500 series, integrating seamlessly with other modules for comprehensive monitoring
• Environmental Rating: Suitable for industrial environments with high levels of mechanical stress and temperature variance
