BENTLY+3500/22M 138607-01

Description

The Bently Nevada 3500/22M 138607-01 module is a part of the Bently Nevada 3500 Series, which is a widely used condition monitoring system for industrial machinery.

Product Name:

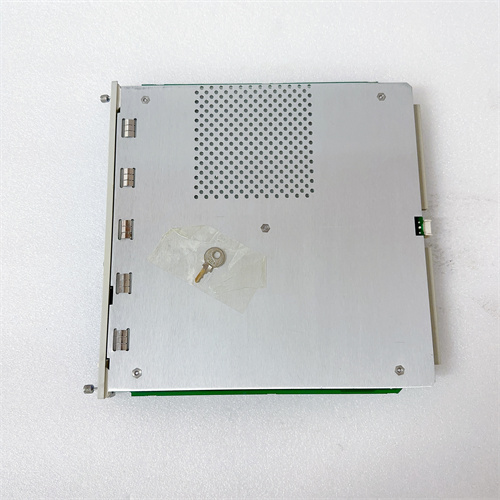

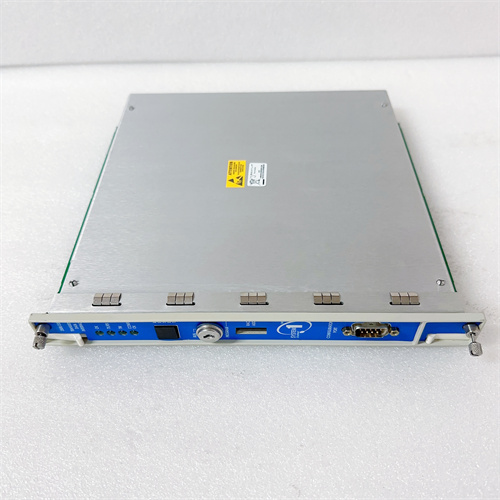

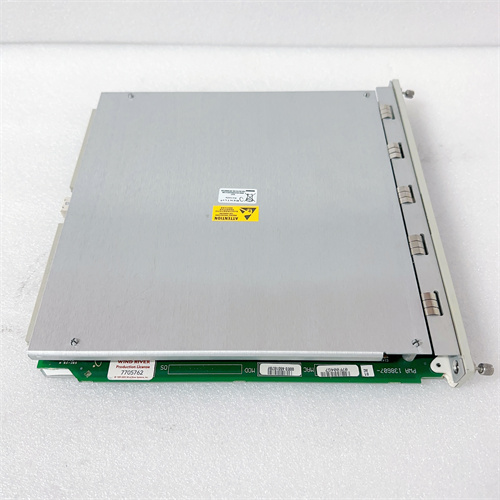

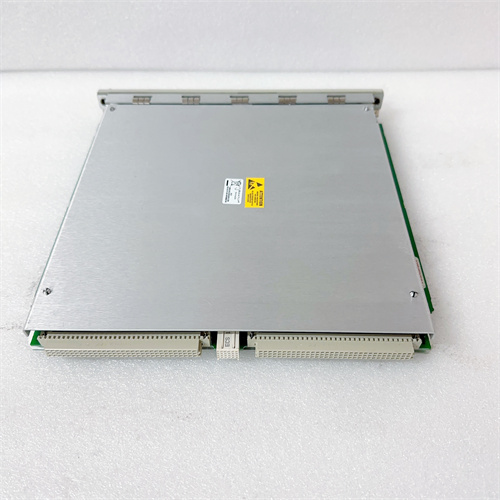

Bently Nevada 3500/22M 138607-01 Module

Product Description:

The Bently Nevada 3500/22M module is a System Monitor Module in the Bently Nevada 3500 Series of machinery protection and condition monitoring systems. The module provides comprehensive diagnostics, monitoring, and control capabilities for machinery like pumps, motors, turbines, compressors, and other rotating equipment. It integrates with the Bently Nevada 3500 Series to monitor a variety of parameters, such as vibration, speed, and temperature, for predictive maintenance and condition-based monitoring.

This system helps in early detection of potential failures or deteriorating conditions, allowing operators to take preventative or corrective actions before catastrophic failures occur. The Bently Nevada 3500 Series is widely used in industries like power generation, oil and gas, chemical, and other heavy industries where machinery uptime is critical.

Product Parameters:

• Model: 3500/22M (part number 138607-01)
• Function: System Monitor Module
• Module Type: 22 Channel Monitoring
• Power Supply: Typically powered by the 3500 rack power supply.
• Input/Output: Provides digital inputs/outputs for machine condition data.
• Communications: Integrates with other 3500 modules via system communication protocols (such as Modbus, Ethernet).
• Operating Temperature: -40°C to +70°C (-40°F to 158°F), though this can vary depending on specific environmental factors.
• Mounting: The 3500/22M is designed to fit into a Bently Nevada 3500 rack, and it communicates with other system modules.

Specifications:

• Weight: Approximately 1.2 kg (2.65 lbs), but varies slightly depending on configuration.
• Dimensions: Typically 4.9 x 12.3 x 1.7 (125 mm x 312 mm x 43 mm), depending on the exact module variant.
• Channel Count: Up to 22 channels for condition monitoring inputs, which can include vibration probes, temperature sensors, and other data sources.
• System Compatibility: Compatible with Bently Nevada 3500 Series machinery protection and condition monitoring systems, and supports integration with the 3500 Rack and other modules in the system.

Product Use:

The Bently Nevada 3500/22M module is used in industrial environments to monitor the health of machinery. Its key use cases include:

1. Vibration Monitoring: Measures vibration levels to detect imbalances, misalignments, or mechanical wear in rotating equipment.
2. Temperature Monitoring: Measures temperature in critical areas of the machinery to detect overheating, which can be a sign of excessive friction or electrical issues.
3. Speed Monitoring: Monitors the rotational speed of shafts and turbines, identifying potential speed deviations or failure to reach desired operating speed.
4. Protective Shutdown: Works with other 3500 system components to shut down machinery or alert operators in case of abnormal conditions, preventing further damage.
5. Preventive Maintenance: Helps in scheduling maintenance based on the condition of machinery rather than following a fixed schedule, optimizing operational uptime.
6. Diagnostics and Reporting: Provides detailed diagnostics and system reports that help engineers and operators troubleshoot machinery issues.
