Description

Product Name

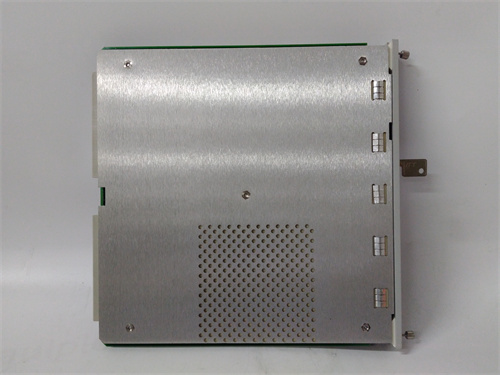

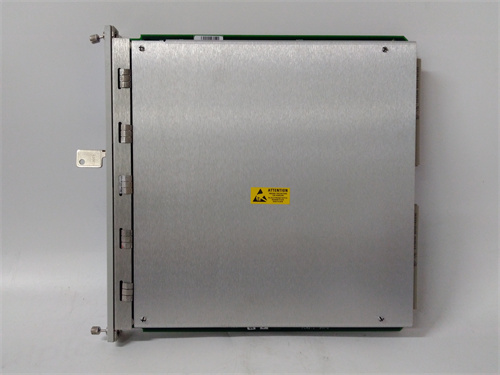

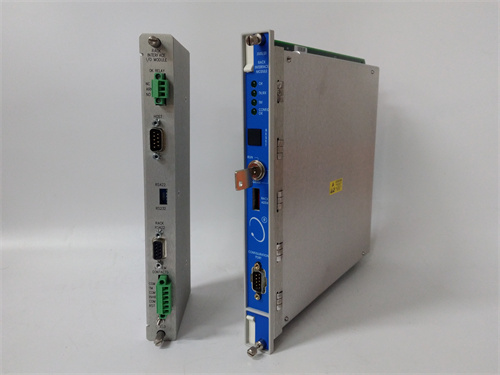

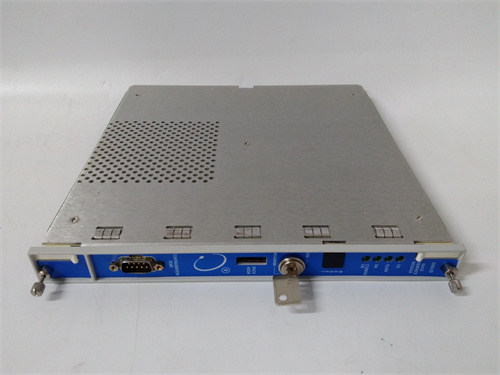

Bently Nevada 3500/20 Card

Product Description

The Bently Nevada 3500/20 Card is a vital component of the Bently Nevada Machinery Monitoring System, specifically designed for monitoring and analyzing the condition of rotating machinery. The 3500 series is known for its reliability and precision in industrial environments, enabling professionals to efficiently track and diagnose machinery performance, ensuring optimal operation and minimizing downtime. The 3500/20 Card focuses on vibration monitoring, offering advanced diagnostic capabilities and integration into the larger 3500 monitoring system.

Product Parameters and Specifications

• Model Number: 3500/20
• Type: Vibration Monitoring Card
• Compatible Systems: Bently Nevada 3500 Series Machinery Monitoring Systems
• Measurement Inputs:
  • Dynamic measurements (velocity, displacement, and acceleration)
  • Dual-channel input for enhanced analysis
• Output:
  • Standard 4 to 20 mA output (loop powered)
  • Digital communication capability with the 3500 rack
• Frequency Range: Variable depending on settings, typically from DC to 10 kHz
• Power Supply:
  • Standard: 18 to 30 VDC
  • Typical current consumption: 40 mA
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Enclosure Rating: IP20
• Dimensions: Standard 3500 series card dimensions (typically around 7” x 4”)
• Weight: Approximately 0.5 lbs (227 grams)

Product Use

The Bently Nevada 3500/20 Card is primarily used in industrial applications for:

• Vibration Analysis: Monitoring vibrations in rotating machinery such as turbines, pumps, compressors, and motors to identify anomalies and prevent failures.
• Condition Monitoring: Providing actionable insights through real-time data, enabling predictive maintenance strategies.
• Alarm and Shutdown Systems: Configurable thresholds for alarms and automatic shutdown to protect expensive machinery from damage due to excessive vibration.
• Integration with Other Systems: Works with other 3500 series modules to deliver a comprehensive monitoring solution for machinery health.

Additional Features

• User-friendly Interface: Designed for easy integration into current systems with self-diagnostic capabilities.
• Robust Construction: Built to withstand harsh industrial environments.
• Remote Monitoring: Compatible with Bently Nevada’s software solutions for remote data access and analysis.
